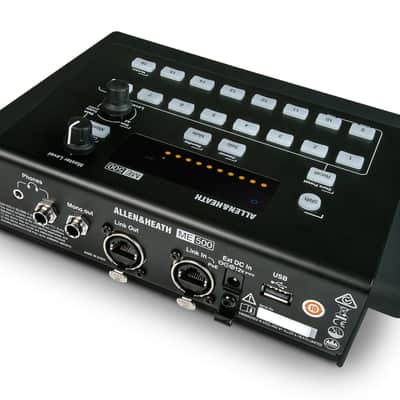

Simple yet powerful the ME-500 from Allen & Heath allows performers to take control of their own mix - whether through wedges, headphones or IEMs - to ensure that the mix is perfect. Apowerful walk-up-and-mix solution, the ME-500 is quick to set up and easy for just about anyone to learn in moments. Now you can control of up to 40 sources by any number of performers without consuming any Mix busses on the main console. A powerful stereo headphone amplifier plus a separate mono ¼” line output provide monitoring options for the performer directly from the personal mixer and PoE compatibility helps to reduce cables and clutter on the stage.

The ME-500 personal mixer’s intuitive hands-on controls and crisp visual display make it easy for musicians to quickly build and control their own monitor mixes. With plug ‘n’ play setup and self-sufficient musicians, ME-500 is also a massive time-saver for the audio engineer. The ME-500 is complemented by the ME-U hub, which opens up the benefits of ME to users of other professional digital mixers via Dante™ or MADI. There is also an Aviom® compatibility mode for use with Aviom® Pro16® systems. In addition, the ME system is compatible with DiGiCo mixers fitted with a DMI-ME module.

Allen & Heath ME-500 Features:

• 16 Mono / 16 stereo inputs with level and pan control
• Master 2 band EQ and Limiter
• Automatic key assignment
• 8 User presets
• 3.5mm and 1/4” headphone outputs
• Solo and Mute keys
• Mains or PoE powered
• Daisy chain or use standard PoE Ethernet hubs
• Mic stand bracket + headphone hanger sold separately

Allen & Heath ME-500 Specifications:

• System:
  • Frequency Response: 10Hz to 20kHz (+0/-1dB)
  • AD/DA Conversion: 24-bit Delta/Sigma, 48kHz
  • Residual Output Noise: -95dBu
  • PoE Requirements: 802.3af (15.4W at source) or 802.at (25.5W at source)
  • Headphone Out:
    • 300mW + 300mW into 100Ω load
    • Max: +21dBu
  • External PSU:
    • IN: 100-240V AC , 50/60Hz
    • OUT: 12V DC , 1.25A
  • PoE Requirement: 10W (requires 15W from PoE hub)
• Dimensions (WxDxH): 9” x 6.3” x 2.7” (230 x 160 x 70 mm)
• Weight: 2.4lbs (1.1kg)
