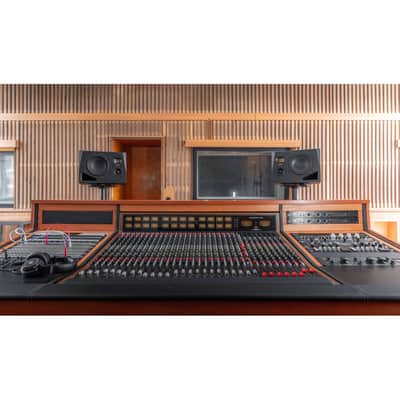

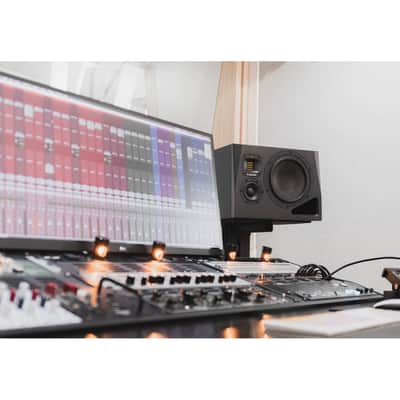

The ADAM Audio A8H (Left) is a 3-way horizontal midfield monitor with an 8" MLM woofer, dedicated MLM midrange driver, and handmade X-ART tweeter with HPS waveguide. The asymmetric cabinet design optimizes stereo imaging for the left channel position. Built for medium-to-large control rooms and critical listening environments where full-range accuracy and high SPL are essential.

Drivers & Amplification

• Woofer: 8" MLM cone
• Midrange: MLM driver
• Tweeter: X-ART folded ribbon with HPS waveguide (rotatable)
• Total amplifier power: 340W RMS (250W LF Class D + 70W MF Class A/B + 20W HF Class A/B)

DSP & Room Correction

Full A Series DSP platform with two factory voicings (UNR and Pure), four-band room adaptation EQ, and extended tuning via the free A Control software over Ethernet. Sonarworks SoundID Reference calibration profiles can be stored directly on the monitor's DSP.

Connectivity

• Analog input: XLR balanced
• Network: RJ45 Ethernet (OCA protocol)
• Power: 100-240V, 50/60 Hz (universal)

Specifications

• Configuration: Left channel (asymmetric cabinet)
• Frequency response: 32 Hz to 45 kHz (-6 dB)
• Crossover: 400 Hz, 3 kHz
• Cabinet: Single front ported, vinyl-wrapped MDF
• Dimensions: 274 x 382 x 329 mm (10.75 x 15 x 13")
• Weight: 13.6 kg (30 lb)
• Warranty: 5 years (2 + 3 with registration)
