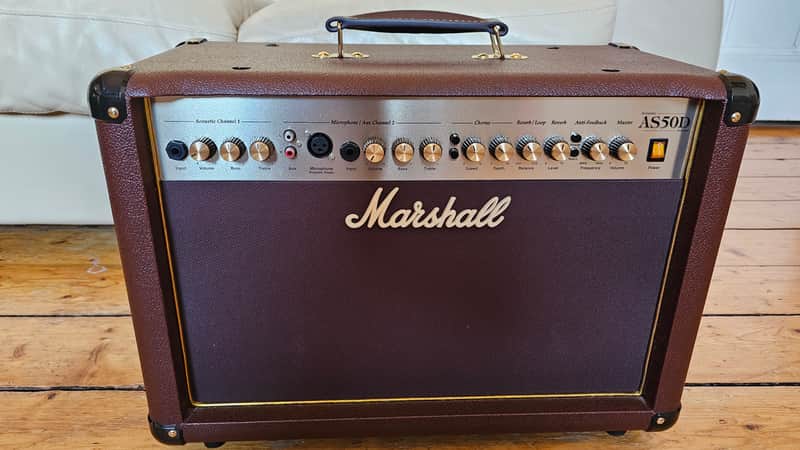

The AS50D is a compact and portable 50 Watt combo amplifier specially designed for use with acoustic instruments. Between its two channels, this combo has the flexibility to handle instruments with transducers, such as piezo or magnetic pick-ups (channel 1), or microphone for either vocal or instrument reproduction (channel 2). The built-in Chorus effect is assignable to either or both channels and the Reverb can be controlled and balanced between the channels to create just the right ambience. If you want to add further effects, then there is an on-board parallel effects loop which can be balanced between the channels in the same way as the Reverb.

One of the most difficult aspects of amplifying some acoustic instruments is feedback. To help you eliminate this, the AS50D features several anti-feedback controls, including a Phase switch and a frequency controllable Notch Filter. The combination of these two elements will give you precise control of the frequencies where feedback is likely to occur and help you to eliminate them.

For clear and detailed performance, the AS50D is loaded with two 8" speakers and a high fidelity polymer dome tweeter. There is also an internal limiter which allows you to push the maximum level from the 50 Watt output, whilst remaining distortion free.

Neat and compact, flexible and portable, the AS50D is the ideal amplifier for the acoustic player who wants a system as suitable for small gigs as it is at home.

Specifications

General

Model: AS50D

Range: Acoustic

Technology: Solid State

Channels: 2 (Multi)

Electronics

Output Wattage: 50W

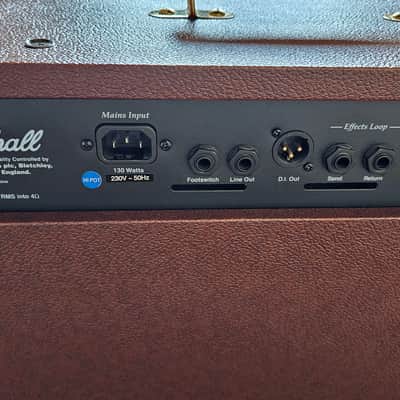

Outputs: DI out, line out, effects loop

Inputs: 2x instrument jacks, 1x Phono (Aux) In and 1x XLR, Footswitch

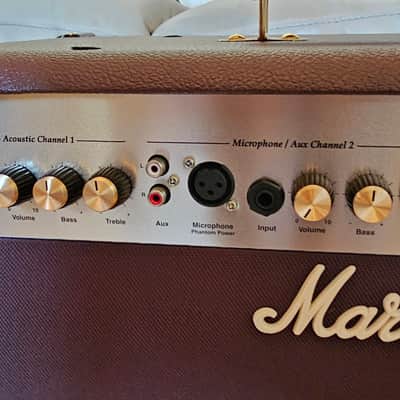

Controls: Acoustic channel 1 (volume, bass, treble), microphone/aux channel 2 (volume, bass, treble), chorus channel selection, chorus effect speed, chorus effect depth, reverb balance, reverb level, anti-feedback frequency sweep, volume

Effects: Reverb, chorus

Effects Loop: Yes, Send/Return

Speakers

Speaker Configuration: 2x8" plus tweeter

Speaker Model: Custom speakers (8Ω)

Unit Impedance: 4Ω

Accessories

Cable: Detachable power cable included

Dimensions

Weight: 16 kg / 35 lbs

Width: 550 mm / 21.7"

Height: 415 mm / 16.3"

Depth: 255 mm / 10"
