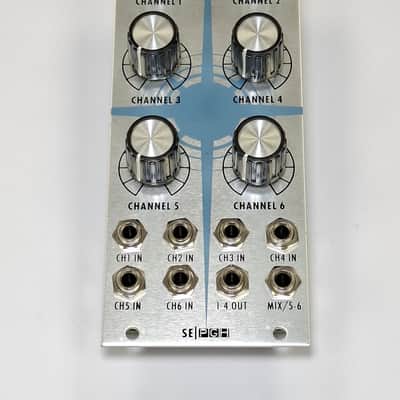

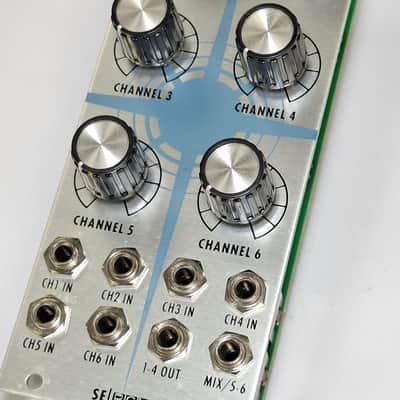

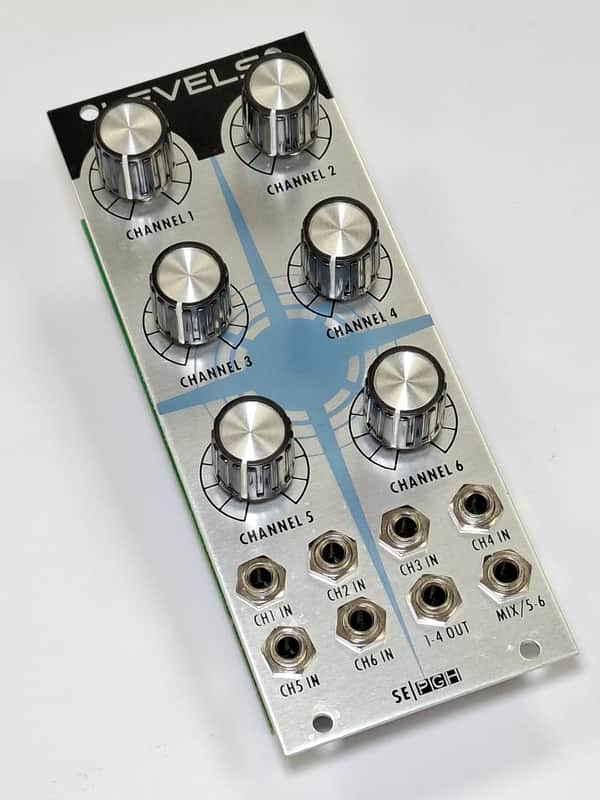

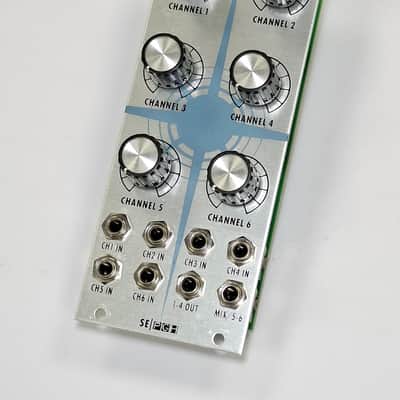

Studio Electronics LEVELS Six Channel Summing Mixer Eurorack

Near perfect condition. Supplied with power cable.

Please check my listings for combined postage and deals.

Six Channel Summing Mixer / Attenuator

LEVELS is a versatile, low-noise six channel summing mixer/attenuator for audio and CV, which can be used rather effectively in a variety of ways: 6 in 1 out, or two separate mixers: 4 in 1 out, and 2 in 1 out, e. g., when only jacked-in to MIX 5/6 output all input channels pass through; utilizing the 1-4 OUT removes channels 1-4 from the MIX 5/6 output. Handy indeed.

The pots are wired with a logarithmic volume curve that is tuned for use with audio but it will work splendidly with CV as well. Pressing LEVELS into service as a wave-shaper by patching all of the individual OSCILLATION waveform outs (sub, sine, tri, saw, ramp, square) into CHANNEL inputs 1-6, makes beautiful music, and an exclusive, vast, morphable hybrid waveform of your innermost sound designs; it feels that kind of good when the these two Modstar pieces are tied-in together.

Potentiometer Potential

Six attenuation pots control the CHANNEL 1, CHANNEL 2, CHANNEL 3, CHANNEL 4, CHANNEL 5, and CHANNEL 6.

Patch it Up

Eight patch points: CH1 IN, CH 2 IN, CH 3 IN, CH 4 IN, CH 5 IN,

CH 6 IN, 1-4 OUT, MIX/5-6.

All Controls and Patch Points

CHANNEL 1 – Adjusts the level or value of 1.

CHANNEL 2 – Adjusts the level or value of 2.

CHANNEL 3 – Adjusts the level or value of 3.

CHANNEL 4 – Adjusts the level or value of 4.

CHANNEL 5 – Adjusts the level or value of 5.

CHANNEL 6 – Adjusts the level or value of 6.

CH 1 IN – Channel 1 input.

CH 2 IN– Channel 2 input.

CH 3 IN– Channel 3 input.

CH 4 IN– Channel 4 input.

CH 5 IN – Channel 5 input.

CH 6 IN – Channel 6 input.

1-4 OUT – Channels 1-4 output.

MIX/5-6 – All channels output (MIX), or 5-6 whe
