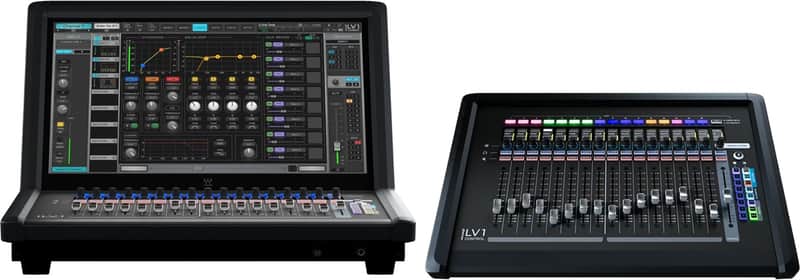

Waves LV1CLASSIC-CONTROL-K LV1 Classic Mixer + LV1 Control Fader Expansion

What's cooler than taking full control of your mix with the LV1's 17 channels of tactile glory? Adding another 17! This Full Compass bundle gives you 34 physical channels of hands-on digital mixing bliss from a compact design that offers large-format options with a small-format footprint.

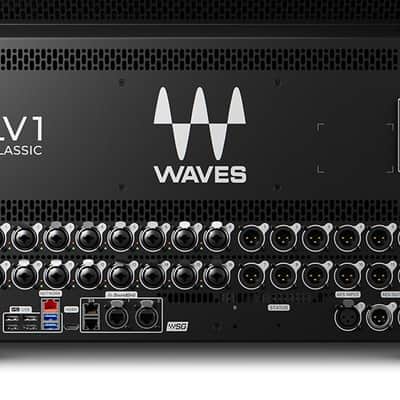

Start with the LV1 Classic. Its 32-bit floating-point mix engine delivers latency as low as 0.8 ms across 64 stereo input channels (128 inputs) and 44 buses, with a built-in SoundGrid Extreme Server that runs integrated Waves plugins on any channel or bus without a hit to the system. The 21.5-inch multi-touch display hits 1000 nits of brightness, the 16+1 motorized faders respond with precision, and 16 Waves Signature Preamps capture your signals with truth and clarity that you can hear from track to venue. Compact at 22" x 15.8" x 22.1" and weighing just 37 lbs., it travels as confidently as it performs.

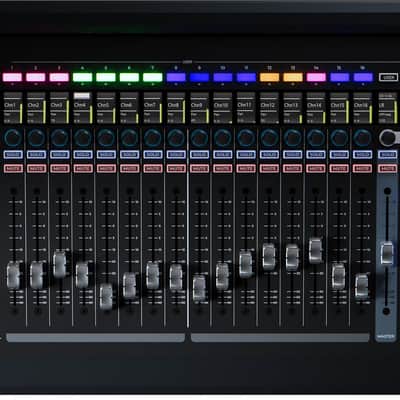

Then comes the LV1 Control. Adding seventeen motorized 100mm faders, encoders with crisp mini-displays, per-channel metering, and Touch-and-Turn mapping to get you more connected to your mix. Select, mute, and solo without reaching for a mouse. Layer keys and customizable user-defined buttons put your most critical functions exactly where muscle memory expects them, and zero-latency responsiveness keeps the console feeling alive under your hands.

Get the gear you want, get the mix you want. Get the LV1 Classic Control bundle.

Waves LV1CLASSIC-CONTROL-K Includes

• LV1 Classic Console
• LV1 Control Surface

Waves LV1CLASSIC-CONTROL-K Features

• Full Compass bundle combines the Waves LV1 Classic with the LV1 Control surface for 34 channels of hands-on mixing control.
• Compact system delivers large-format console functionality in a portable, space-saving footprint.
• LV1 Classic features a 32-bit floating-point mix engine with latency as low as 0.8 ms.
• Supports 64 stereo input channels, 128 total inputs, and 44 buses for complex live productions.
• Built-in SoundGrid Extreme Server runs integrated Waves plugins directly on channels and buses.

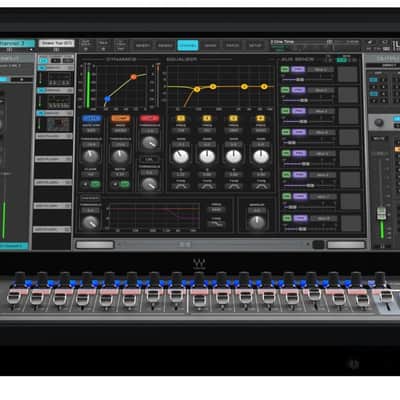

• Bright 21.5-inch multi-touch display reaches 1000 nits for excellent visibility in live environments.
• 16+1 motorized faders and Waves Signature Preamps provide responsive control and detailed signal capture.
• Compact chassis measures 22" x 15.8" x 22.1" and weighs just 37 pounds for portable deployment.
• LV1 Control adds 17 additional motorized 100 mm faders with dedicated encoders and mini-displays.
• Per-channel metering and Touch-and-Turn mapping provide direct, tactile interaction with the mix.
• Dedicated mute, solo, select, layer keys, and customizable buttons streamline live workflow operation.
• Zero-latency control response keeps mixing fast, fluid, and responsive during performance.
• Designed for live sound engineers who want expanded tactile control without moving to a large-format console.

Waves LV1CLASSIC-CONTROL-K Specifications

• LV1 Classic
• Channels (mono/stereo): 64
• Inputs (maximum, if all mono): 128
• Buses: 44
• Auxes (stereo/mono): Total: 24
• Monitor Auxes: 16
• Audio Groups: 8
• FX Auxes: 8
• Master Channels: L/R/C/Mono
• Matrices (Stereo/Mono):8
