JMAZ Lighting JZ1043 MAD PAR PUCK 6PK 20W RGBAL+C LED Battery Powered Outdoor Uplight Kit

The MAD PAR PUCK 6PK uplight delivers powerful, weatherproof illumination with six 20W RGBAL+C LEDs and an IP65 rating for outdoor durability. Featuring adjustable CCT (2300K–8500K), 73 preset color programs, 50 sound-activated modes, and 72 auto/fade effects, it offers dynamic versatility. With up to 20 hours of battery life (40 hours in saving mode) and a fast 3-hour recharge, it’s built for extended events. A 40°/60° beam angle with a diffuser ensures flexible lighting, while Wireless DMX and IR remote compatibility provide effortless control. Includes IR remote, diffuser filter, A/C charger, and quick start guide for seamless setup.

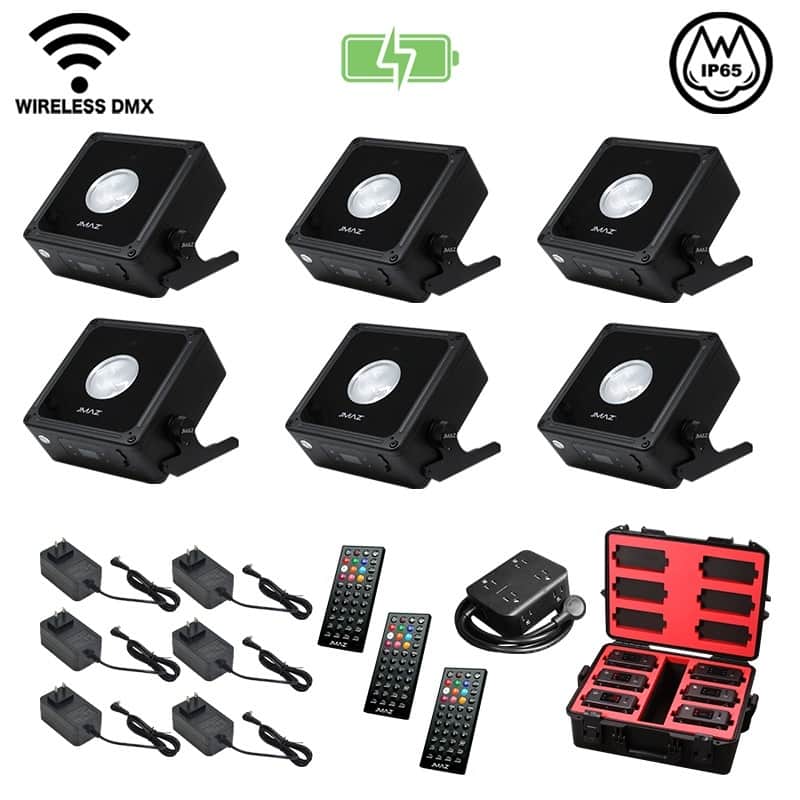

JMAZ Lighting MAD PAR PUCK 6PK Includes

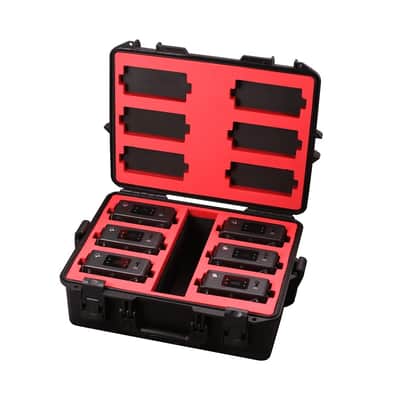

• 1 x IP65 Waterproof Injection Mold Case (Holds 6 Units)
• 6 x MAD PAR PUCK
• 6 x 20 Degree Diffuser
• 6 x A/C Charger
• 3 x IR Remote
• 1 x 6in1 Power Charger
• 1 x User Manual

JMAZ Lighting MAD PAR PUCK 6PK Features

• Injection Molded Case w/6 MAD PAR PUCK Units
• Each Unit: 1 X 20W RGBAL+C LED
• IP65 Outdoor Rated
• Max 14 Hour Battery Life / 40 Hour In Battery Saving Mode
• Charging Time: 4 Hours
• CCT: 2300K – 8500K
• 73 Preset Color Programs
• 50 Advanced Sound Active Mode
• 72 Auto / Fade Bulit In Programs
• 40° Beam Angle / 60° Beam Angle w/Diffuser Included
• Protocols: Wireless DMX, IR Remote

JMAZ Lighting MAD PAR PUCK 6PK Specifications

• Light Source:
  • Each Unit: 1 X 20W RGBAL+C LED
  • LED Life Expectancy: 50,000 hrs
• Color System:
  • RGBAL+C Color Mixing 8/16 bit
  • CCT: 2300K to 8500K
• Optics:
  • Advanced Lens Optic: 40° Beam Angle
  • Diffuser Angle (Included): 60° Beam Angle
• Dynamic Effect:
  • Max 20 Hour Battery Life / 40 Hour In Battery Saving Mode
  • Charging Time: 3 Hours
  • Selectable Battery Saving Mode: 25%, 50%, 75%, 100%
  • 73 Preset Color Programs
  • 50 Advanced Sound Active Mode
  • 72 Auto / Fade Built-In Programs
  • Stand Alone Color Mixing
  • Electronic Dimmer
  • Fading/Jumping Macros Light Change And Jump
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0-25 Hz
  • Preset Color Temperature
  • 4 Favorite Color Customization Triggered via DMX / IR Remote
• Control:
  • Control Protocol: Wireless DMX, IR Remote
  • Personalities: 5/6/8/16 CH DMX Modes
  • OLED Graphical Display
• Electronics:
  • Strobe Shutter: 1-25Hz
  • Dimming Modes: 4
• Body:
  • Die-Cast Aluminum and Steel Structure
• Physical:
  • Adjustable Tilt Base: 0-40 Degree
  • Cooling: Fanless
• Certification / Qualifications:
  • RoHS, CE, FCC
  • IP Rating: IP 65
  • Operating Temperature: –10° C (14° F) To 60° C (140° F)
• Electrical:
  • Input Voltage: 100 V – 240 V AC, 50/60 Hz
  • Power Consumption: 20W
  • PWM: 1.5KHz
  • Battery Voltage: 11.1V
  • Battery Capacity: 5,200 mAH, 57.72 Wh/hour
  • Charger: 12.6V, 3A ***UL Listed***
  • Rechargeable Battery Type: Lithium Ion ***UL Listed***
• Item Dimensions & Weight:
  • Dimensions: 7.2″ x 5.9″ x 3″
  • Weight: 3.7 lbs
