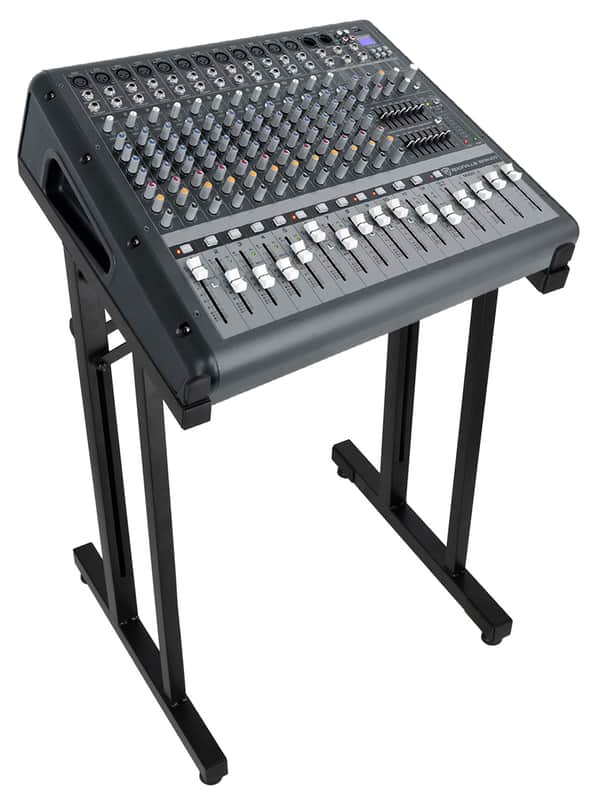

Rockville RPM1470 14 Channel 6000w Powered Mixer w/USB, Effects+Foldable Stand

Package Includes:

• (1) Rockville RPM1470 14 Channel 6000w Powered Mixer w/USB, Effects/14 XDR2 Mic Pres
• (1) Rockville RXS30 Portable Pro Mixer Stand, Instant Fold/Setup, Adjustable Width

All About Your RPM1470:

How To Set Up Your RPM1470:

Inputs, Outputs, and Controls Explained on Your RPM1470:

How To Connect an Instrument Or Mic to your RPM1470:

How To Set Up For Karaoke with Your RPM1470:

How To Connect a Subwoofer to Your RPM1470:

All About Your RPM1470:

How To Replace a Fuse on Your Rockville Mixer:

Description:

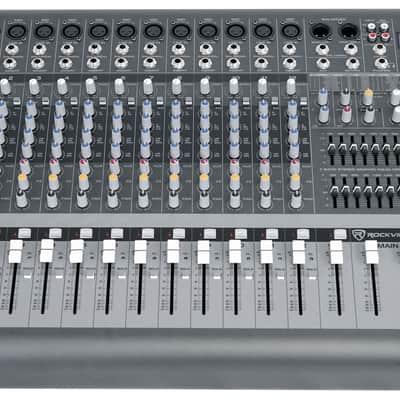

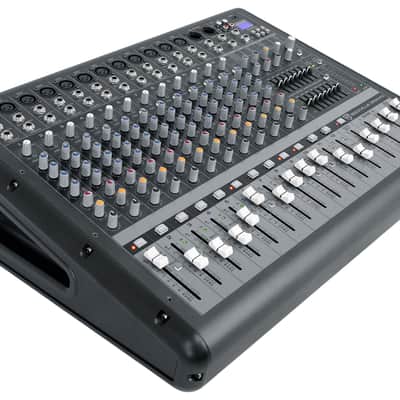

The Rockville RPM1470 is a 14-channel powered console mixer with USB input and Bluetooth. There were a few goals we had when designing this mixer. The first one was it had to have the clearest sound quality with the best quality mic preamps. We manufactured this mixer with XDR2 low noise mic preamps. These are some of the best sounding mic pre’s on the market. They compete in quality with any brand on the market! The next goal we had was versatility. This mixer has aux sends and returns on each channel so you can route your external effects easily. We also built in a 24-bit digital effects processor that sounds great. We didn’t include 99 effects which all sound the same. Rather we included 16 solid effects that are each useful. You can customize each effect in the FX control section of the mixer. The last goal was to include a built-in amplifier that is powerful enough for your main speakers so that you can use this mixer for large events with over 500 guests.

We tested this and we ran the mixer to (2) Mackie C300Z speakers, and even with the volume turned up half way these were filling an extremely large room with sound! We also tested these with dual 15” DJ speakers and really cranked them and the sound of the highs and lows were crisp and clean. The great thing about this is the amp does not overheat even when cranking it for hours straight. The power amp built into this mixer is 500 x 2 RMS @ 8 ohms and 750 x 2 RMS @ 4 ohms. We rate the RMS very strictly the way famous brands like Mackie rate their items. We also supply you with program and peak ratings, but RMS is the true continuous output power you should look at.

Other great features are a dual 7-band master EQ, a 4-band EQ on each channel, an EQ kill switch, and pad and solo buttons on each channel. Rounding things out, we added a USB input that has 2 functions. It can play back your audio tracks. But what is really cool, is that you can record your main mix onto the USB or onto an SD! We also added Bluetooth to this mixer to give you all the latest and greatest options.

30 Day Money Back Guarantee
The price point we are selling this at is about a third of what any other brand would charge. On top of this, we are offering a 30 Day money back guarantee including return shipping. If you do not love this mixer, you can send it back and get all your money back and we will even cover the cost of return shipping. Just be sure to send it back including the original packaging.

Features:

• Rockville RPM1470 14-Channel 6000 Watt Powered Mixer, 7 Band EQ, 24-Bit Effects, USB, Bluetooth, and 48V Phantom Power
• RMS Power Output:
  • 750 Watts x 2 @ 4 Ohm
  • 500 Watts x 2 @ 8 Ohm
• Program Power Output:
  • 1500 Watts x 2 @ 4 Ohm
  • 1000 Watts x 2 @ 8 Ohm
• Peak Power Output:
  • 3000 Watts x 2 @ 4 Ohm
  • 2000 Watts x 2 @ 8 Ohm
• 14 Channel mixer section: 12 mono channels, 1 stereo channel

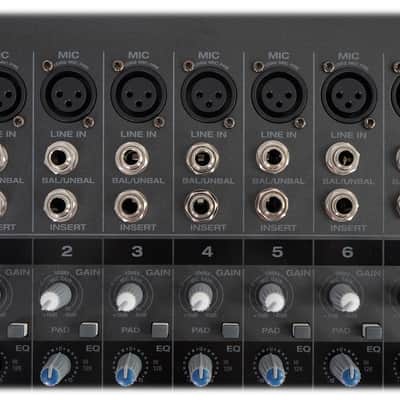

• 14 high-quality XDR2 mic preamps with switchable +48 V phantom power for condenser microphones
• XDR2 mic preamps are low-noise and low distortion. These are some of the best sounding mic Pre's on the market
• Built in USB allows you to play songs from your computer or a thumb drives
• Built in recording - allows you to record your main mix onto the USB or SD card
• USB supported formats are MP3, WAV, WMA
• Built in advanced Bluetooth wireless audio streaming with the most reliable Bluetooth chip on the market
• 24 BIT digital effects processor with 16 preset digital effects including (reverb, chorus,, delay, chorus, phaser, flanger and various multi-effects)
• Effects level control can adjust signal level of each effect
• Effects mute button
• FX footswitch input lets you turn your effects on or off

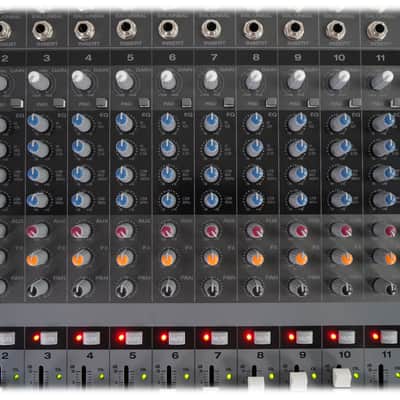

• 4-Band EQ (high, high-mid, low-mid, low) per channel
• Each channel is equipped with pad, must, and solo buttons with LED’s
• Each channel has gain, aux control, FX control, Pan control, Volume control
• Peak LED indicator has a red LED that indicates a signal level that is 5dB below clipping

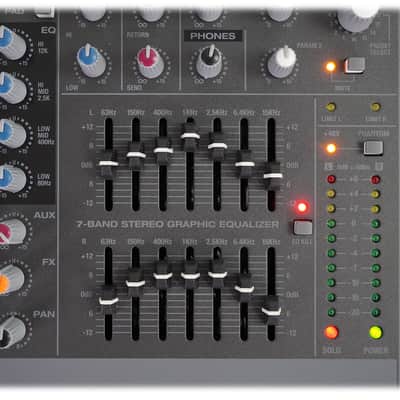

• Dual Stereo 7-band Graphic EQ allows for precise frequency correction of monitor and main outputs (with EQ kill switch)
• Aux send and Aux returns on every channel to connect all types of external effects and processors
• You can control your monitor mix and check levels through your headphones
• Limit L and Limit R LED indicators. These limiters are designed to go brighter as clipping gets stronger and will remain lit up until the channels stop clipping. We recommend lowering the gain if you see these LED’s lit up
• Power and Output level LED indicators

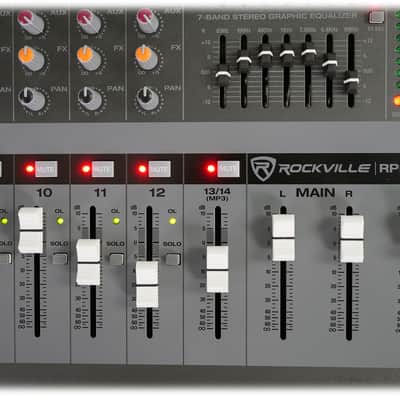

• Main output fader allows you to fade the sound between the left and right channel

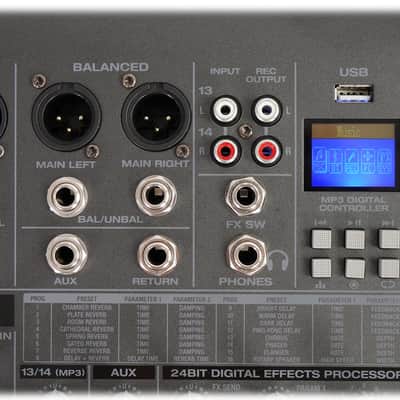

• RCA input, RCA output, and USB player
• Headphone jack for monitoring the master signal and individually monitoring each channel with PFL, L/R
• Gain control adjusts he sensitivity from -60dB to -20dB when the pad button is in the out position.
• When the pad button is pressed in the gain will adjust from 240dB to 0dB
• Solo button allows you to hear the signals through your headphones or to the control room without having to route them to the main mix. This works even with the fader turned down. You can use this to preview channels before they are let into the mix or just to check out a channel during a live performance. You can solo as many channels at a time as you want
• Built in cooling fan and ventilation system
• USB input supports unlimited capacity (as many GB as you want)
• 110/220V switchable power supply
• Product Dimension: 22.64" x 18.7" x 7.48"
• Product Weight: 27.12 lbs

Description:

Designed for DJs, Studios, and Stages

The Rockville RXS30 Portable Pro Mixer Stand is engineered to meet the demands of professional DJs, studio artists, and stage performers who need a reliable, portable, and durable solution for their gear. With its instant fold/setup design, you can go from packed to performing in seconds—simply unfold the stand, adjust the width to fit your equipment, and start your set. When the gig is over, it folds flat just as quickly, making it easy to transport to your next event.

Crafted from heavy-duty steel with shear technology, the RXS30 supports up to 225 lbs. ensuring your drum machines, mixers, or synths stay secure, even during high-energy performances. The adjustable width makes it versatile enough to fit a variety of equipment, while the adjustable rubber feet ensure stability on any surface, from uneven club floors to polished studio spaces. The EVA soft pads protect your gear from scratches, and the black powder-coated finish prevents rust, keeping your stand in top condition for years.

The RXS30 features a thoughtfully engineered tilted design that enhances usability for DJs, studio producers, and stage performers. With a front height of 71.3 cm (28.1”) and a rear height of 80.4 cm (31.65”), the angled surface positions your mixer, drum machine, or synth at the perfect ergonomic angle, reducing strain during long sets and ensuring effortless access to your controls.

Despite its robust build, it weighs only 13.2 lbs. making it a lightweight yet sturdy option for on-the-go professionals.

Whether you're a DJ setting up for a club gig, a producer working in the studio, or a synth player performing on stage, the Rockville RXS30 delivers the stability, portability, and durability you need to focus on your performance. Upgrade your setup today with the RXS30—the stand that moves as fast as you do!

Key Features:

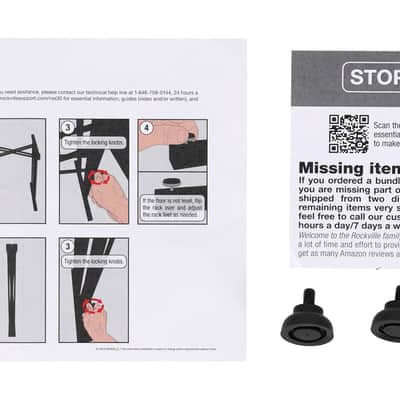

• Instant Fold/Setup Design: The RXS30 folds flat or expands in seconds, making setup and teardown a breeze. Perfect for DJs on the go, this stand ensures you're ready to perform at a moment's notice.
• Portable and Lightweight: At just 13.2 lbs. the RXS30 is extremely portable, allowing you to take it anywhere—gigs, studios, or stages—without the hassle of heavy equipment.
• Heavy Duty Steel Construction: Built with a steel frame and shear technology, this stand supports up to 225 lbs. ensuring your gear stays secure during even the most energetic performances.
• Adjustable Width for Versatility: With an adjustable width of 21.06” (53.5 cm) or less, the RXS30 accommodates a wide range of equipment, fitting seamlessly into your setup .
• Stable on Any Surface: Equipped with adjustable rubber feet, the RXS30 provides a firm grip on uneven floors, keeping your gear steady and safe.
• Protective Design: The EVA soft pads prevent scratches, while the black powder-coated finish resists rust, ensuring your stand looks great and lasts for years .
• Ergonomic Tilted Design: The angled surface positions your mixer, drum machine, or synth at the perfect ergonomic angle, reducing strain during long sets and ensuring effortless access to your controls.

Perfect Dimensions for Professional Use:

• Height (Front): 71.3 cm/28.1”
• Height (Rear): 80.4 cm/31.65”
• Width: 53.5 cm/21.06”
• Working Depth: 48 cm/18.9”
• Load Capacity: Supports up to 225 lbs.
