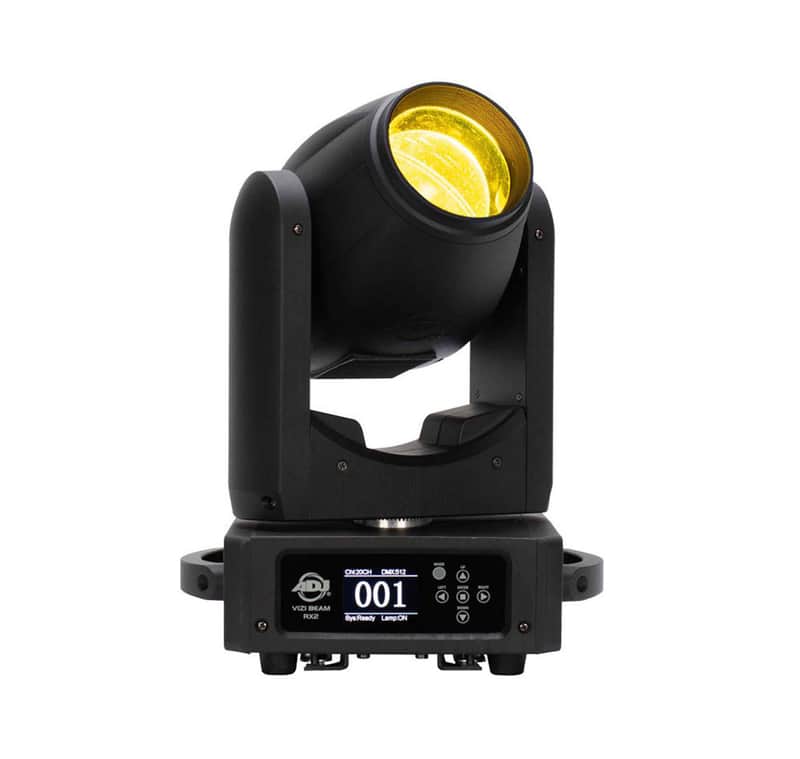

ADJ Vizi Beam RX2, 100W LED Moving Head Beam Fixture

The ADJ Vizi Beam RX2, 100W LED Moving Head Beam Fixture is designed for the modern lighting designer. Featuring a vigorous 100W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, this potent fixture delivers stunning visuals with a precise 2-degree beam angle, as well as, high speed 3-phase pan/tilt motors for maximum performance. Vizi Beam RX2 is designed for live events and venues looking for a small footprint lighting fixture that creates high impact lightshow. Unlock a wealth of features including on-board wireless DMX, two prism wheels (16-facet circular & 4-facet linear), a frost effect, motorized focus (with 16-bit fine focus), along with a 14-color dichroic wheel that includes CTO (3200K), CTB (4500K & 9000K) & UV filters) and 15 static GOBOs + open (3 GOBOs are beam reducers).

The fixture boasts advanced features, including 2 rotating prisms (16-facet circular & 6-facet linear + prism overlay), a frost filter for creating wash effects, and pan/tilt locks for added stability during transportation and rigging. With a color LCD display, 0-100% smooth dimming, and various strobe speeds, the Vizi Beam CMY offers intuitive control.

Designed for convenience, it features outdoor-rated in/Out locking connections for power daisy-chaining, 5-pin in/Out DMX sockets and a color LCD display with 4-button function menu. The Vizi Beam RX2 is a versatile and reliable lighting solution for any high-octane event.

What’s Included:

2x Omega Brackets (107 Type)

2M, outdoor locking 14AWG power cord

Product Specifications:

Light Source:

OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)

Color temperature: 9000K (+/- 300K)

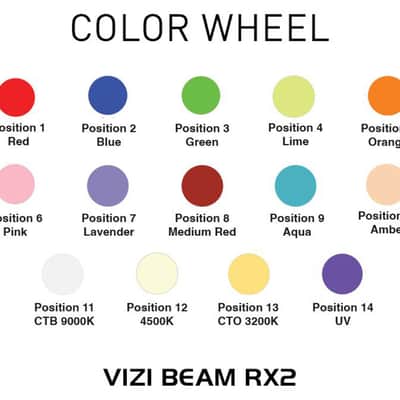

Color Wheel:

14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) & UV)

Indexable color wheel for split colors

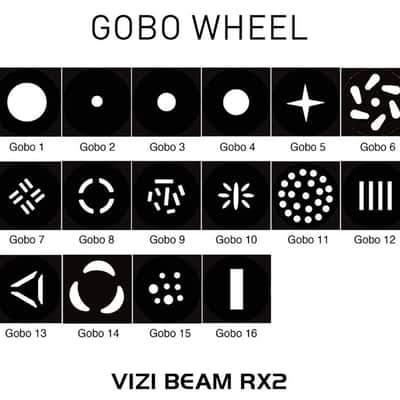

GOBO Wheel:

15 static GOBOs + open (3 GOBOs are beam reducers)

GOBO Shake Effect

Prism Wheels:

2 Rotating prisms

16 facet circular and 4 facet linear prisms

Control:

Protocols: DMX512 & RDM

Control Mode: DMX512 & Manual (On-board Controls)

2 DMX Channel Modes: 12/16 Channels

Color LCD display with 4-button function menu

0-100% smooth dimming

Various strobe speeds

With Wired Digital Communication Network

Pan/Tilt:

Pan: 540 degrees (plus 16-bit fine pan)

Tilt: 270 degrees (plus 16-bit fine tilt)

3 Phase, High Speed, Pan/Tilt motors

Connections:

DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)

Power Connections: Outdoor locking In/Out connections to daisy chain power

Electrical:

Multi-voltage operation: 100-240V, 50/60Hz

Max power consumption: 168W (@120V), 157W (@230V)

Fuze Protected: 3.15A

Dimensions & Weight:

Dimension: 9” (L) x 12” (W) x 16.3” (H) (230 x 304 x 416mm)

Weight: 16.5 lbs. / 7.5 kg.
