HK LINEAR-9-210-LTA 1000 Watt 2 x 10" Long Throw Speaker

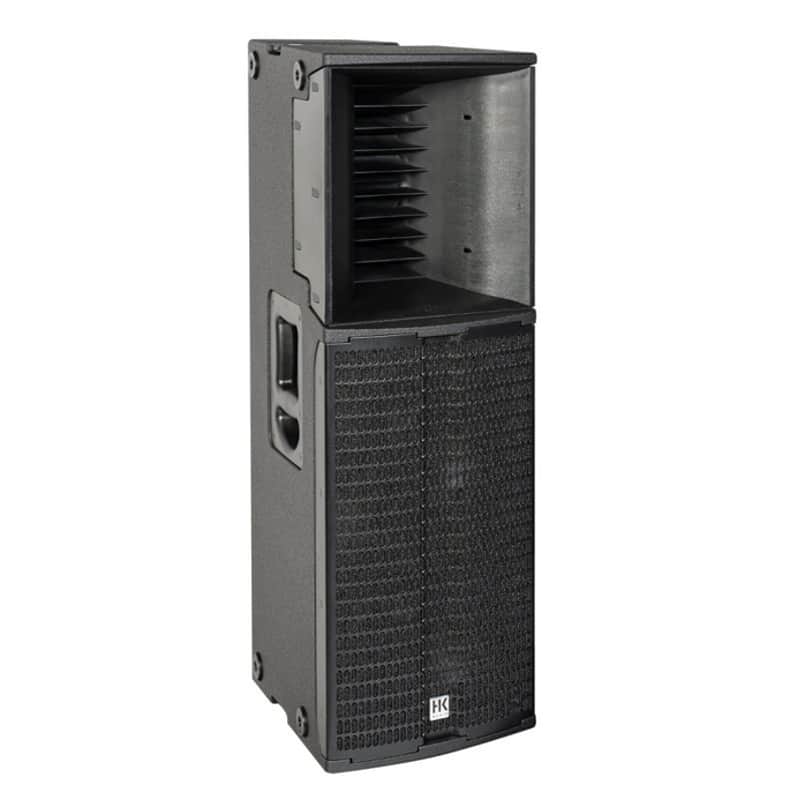

The HK Audio LINEAR 9 210 LTA is a professional active two-way mid/high loudspeaker engineered for high-output, long-throw sound reinforcement. Its two vertically arranged 10-inch drivers and rotatable 60° x 25° multicell horn provide focused, consistent coverage with excellent clarity and projection across large venues and demanding outdoor applications.

A bi-amplified 1000-watt Class-D power section delivers up to 142 dB peak SPL. Integrated 96 kHz DSP provides extensive system control, including a fully parametric 10-band EQ, adjustable high- and low-pass filters, delay, limiter, polarity, level and mute functions. The speaker can operate independently or be networked and remotely managed from a Mac or PC using HK Audio DSP CONTROL software.

Designed for scalable professional systems, the 210 LTA supports horizontal clustering and includes dedicated presets for single-speaker and multi-speaker configurations. Its rotatable horn, DuoTilt pole mount and rigging capabilities make it suitable for stacked, pole-mounted, clustered or flown applications.

The road-ready birch-plywood enclosure features a durable black PU coating, corrosion-resistant steel grille and two integrated MultiGrip handles. Professional connections include a balanced analog input and output, separately processed DSP output, lockable EtherCon network ports and locking PowerCon power input and thru connections.

Please note: The LINEAR 9 210 LTA is primarily a high-output mid/high cabinet. Pairing it with compatible HK Audio subwoofers is recommended for full-range music reproduction with extended low-frequency output.

FEATURES

• Professional active two-way long-throw mid/high loudspeaker
• Two vertically arranged 10-inch cone drivers
• 1.4-inch compression driver with 2.5-inch voice coil
• Rotatable 60° x 25° HK Audio multicell horn
• 1000-watt RMS bi-amplified Class-D power section
• Maximum peak SPL of 142 dB
• 96 kHz DSP with fully parametric 10-band EQ
• Adjustable high-pass and low-pass filters
• Delay, limiter, polarity, level and mute controls
• Stand Alone, Cluster 2, Cluster 3 and Remote presets
• DSP Out for integrating and processing another loudspeaker
• EtherCon networking and HK Audio DSP CONTROL compatibility
• MILAN digital-audio network capability
• DuoTilt 3°/7° pole mount
• Horizontal clustering and flying capability
• Rugged PU-coated birch-plywood enclosure
• Designed and manufactured in Germany

SPECIFICATIONS

• Speaker type: Active two-way, bass-reflex mid/high loudspeaker
• Low/mid drivers: 2 x 10-inch cone speakers with 2.5-inch voice coils
• High-frequency driver: 1.4-inch compression driver with 2.5-inch voice coil
• Amplifier: Bi-amplified Class D
• Amplifier output: 1000 watts RMS
• Maximum SPL: 142 dB peak / 133 dB average
• Frequency range: 105 Hz–19 kHz at -6 dB
• Extended frequency range: 84 Hz–20 kHz at -10 dB
• Crossover frequency: 1.35 kHz
• Coverage: 60° x 25°, rotatable
• Maximum input level: +20 dBu
• Sampling rate: 96 kHz
• Latency: Less than 2.9 ms
• Analog input: 1 x balanced XLR/TRS combo
• Analog output: 1 x balanced XLR
• DSP output: 1 x balanced XLR
• Network connections: EtherCon RJ45 input and output
• Power connections: PowerCon input and thru
• Operating voltage: 100–240V
• Dimensions: 13-3/8 x 37-25/32 x 15-11/32 inches
• Weight: 72.8 lb.
• Finish: Jet black

An excellent choice for touring systems, houses of worship, rental companies, theaters, clubs and event-production applications requiring controlled coverage, substantial output and dependable long-distance projection.
