Galaxy Audio EDXR/38SV EDX 2-Channel UHF Wireless Mic System, Frequency Band D

Customer Return, does show signs of wear to the unit and packaging.

The EDX Series is a professional dual channel UHF wireless microphone system. The EDX features 2 internal antennas (1 for each receiver), 16 selectable channels on each receiver, and IR Sync from receiver to transmitter. The EDX has 2 discreet male XLR outputs and 1 combined 1/4″ output on the back of the unit. The output is controlled by a volume control for each receiver, located on the front of the unit.

The EDXR 2 channel wireless microphone system can be used and will sync with either the HH38 handheld or the MBP38 body pack transmitters. Systems with the MBP38 body pack are available with either a lavalier, or headset. Both transmitters feature an on/off switch and are powered by two “AA” batteries. The MBP38 body pack transmitter also features a Mic/0/-10 selector switch for various input level sources.

EDXR/38SV

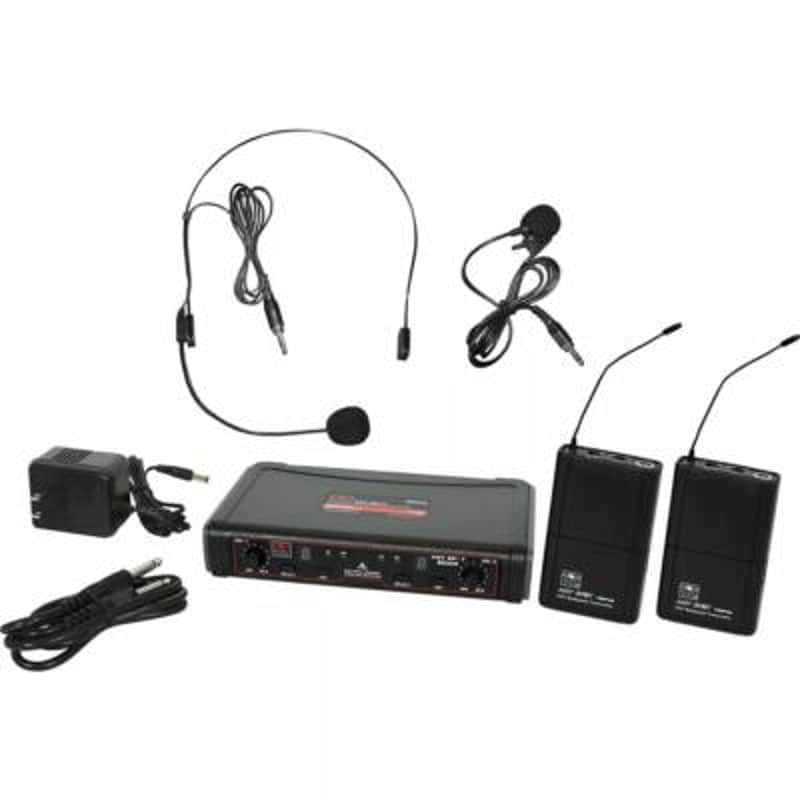

Headset and Lavalier Microphones: Uni-Directional. This system includes the EDXR Receiver, 2 MBP38 Body Pack Transmitters, the HS13-UBK Headset Microphone, the LV13-UBK Lavalier Microphone, 1/4" to 1/4" cable, and Power Supply

• 200′ Range
• 16 Selectable UHF Frequencies
• Internal Antennas

EDXR Receiver

• Dual Channel Receiver
• AF & RF Indicators
• IR Sync Receiver to Transmitters
• 1 Mixed 1/4″ Output, 2 Balanced Male XLR Outputs
• 2 Internal Antennas (Non-Diversity)
• Rugged Plastic Casing

HH38 Transmitter

• Dynamic Cardioid
• On/Off Switch
• IR Sync Transmitter to Receiver
• Plastic Casing
• Operates on 2 AA Batteries (up to 8 hours Alkaline)
• Dimensions: 10.9″ 1.85″ (277 x 47 mm) (LxDia)
• Weight: 6.9 oz (195 g)

MBP38 Transmitter

• On/Off/Standby Switch
• IR Sync Transmitter to Receiver
• Mic / 0 dB / -10 dB pad
• Durable Plastic Casing
• Operates on 2 AA Batteries (up to 8 hours Alkaline)
• Dimensions: 3.3″ x 2.55″ x 1″ (83.8 x 64.8 x 25.4 mm) (HxWxD)
• Weight: 2.8 oz (80 g)

Specifications General

• Available Channels: 16
• Frequency Range: CODE D 584-607 MHz
• CODE N 518-542 MHz
• Transmitter Output Level: 10 mW
• Band: UHF
• Operating Range: Under Typical Conditions 200' (61 m), actual range depends on RF signal absorption, reflection, and interference.
• Audio Frequency Response: (+/-3 dB) 60 Hz ~ 16 kHz
• Total Harmonic Distortion: (+/-30 kHz deviation 1 kHz tone): <1%
• Dynamic Range: >90 dB A-weighted
• Operating Temperature Range: 14º F to 122º F (-10º C to 50º C), battery characteristics may limit this range.



EDXR RECEIVER

• Audio Output Level: XLR Connector (into 600 Ohms load) -12 dBV
• 1/4" Connector (into 3 k Ohms load) -18 dBV
• Output Impedance: XLR Connector 200 Ohms
• 1/4" Connector 1 k Ohms
• Sensitivity: -92 dBm
• Image Rejection: >92 dB
• Dimensions: 1.7" x 8.3" x 5" (42 x 210 x 127 mm) (HxWxD)
• Weight: 13.6 oz (390 g)
• Power Requirements: 12-18 V dc at 300mA, supplied by external power supply



HH38 HANDHELD TRANSMITTER

• Max Audio Input Level: 0 dBV
• Gain Adjust: Trim pot
• RF Output: 10 mW
• Frequency Response: 70 Hz - 10 kHz
• Dimensions: 10.9" x 1.85" (277 x 47 mm) (LxDia.)
• Weight: 6.9 oz (195 g) (without batteries)
• Power Requirements: 2 “AA” size alkaline or rechargeable batteries
• Battery Life: About 8 hours (Alkaline)



MBP38 BODY PACK TRANSMITTER

• Max Audio Input Level: 0 dBV to +20 dBV
• Gain Adjust: Mic / 0 dB / -10 dB
• RF Output: 10 mW
• Input Impedance: 5 k Ohms
• Dimensions: 3.3" x 2.6" x 1" (85 x 65 x 23 mm) (HxWxD)
• Weight: 2.8 oz (80 g) (without batteries)
• Power Requirements: 2 “AA” size alkaline or rechargeable batteries
• Battery Life: About 8 hours (Alkaline)
