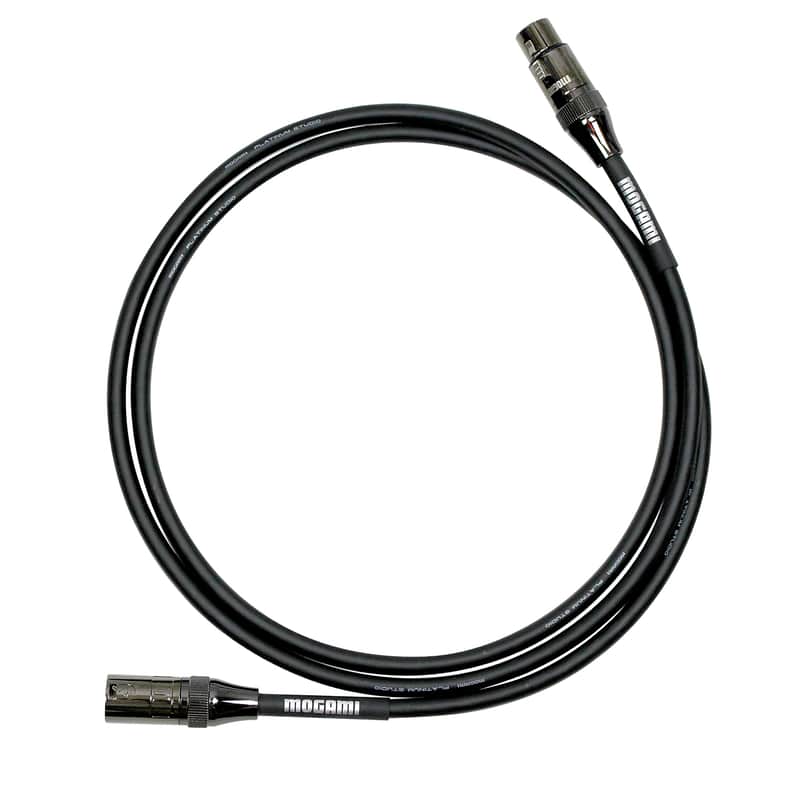

Mint Mogami Platinum Studio 06 High-Purity XLR to XLR Microphone Cable, 6-Foot
This seller has not set a shipping cost for Norway. Please contact them to ask about shipping.
Original Pricekr1,093.60
16% off
New Pricekr918.64
+ Shipping
Listed:over a month ago
Views:116
Watchers:3
National City, CA, United States
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
- Wired with Mogami Platinum Studio cable
- High-purity OFC copper 18-gauge core
- Extremely wide bandwidth
- Suitable for both analog and digital signals
- Superb for powered speakers
- Very low capacitance for analog
- Designed with the mastering engineer in mind
- Not for live stage use
- Part No.: W3402
- of Conductor: 2
- Conductor
- Details: 19/0.25A OFC
- Size: 0.932mm² (#18AWG)
- Insulation
- Dia. (mm): 2.8Ø (0.110")
- Material: CPP
- Colors: Red/White
- Mono-filament Filler
- Dia. (mm): 1.87Ø (0.0736")
- Materials: LDPE (Clear)
- Served Shield: 100/0.18A (Approx. 100/#33AWG)
- Jacket
- Dia. (mm): 7.8±0.5Ø (0.307± 0.0197"Ø)
- Material: PVC
- Color: Black
- Roll Sizes: 300m (983Ft)
- Weight: 27kg/300m
- Part No.: W3402
- DC Resistance at 20°C
- Inner Cond.: 0.02Ω/m(0.006Ω/Ft)
- Shield Cond.: 0.007Ω/m(0.0021Ω/Ft)
- Capacitance at 1kHz, 20°C (effective capacitance value between inner twin): 50pF/m (15.3pF/Ft)
- Inductance: 0.7µH/m (0.21µH/Ft)
- Characteristic Impedance: 110Ω±10%
- Attenuation (6MHz): 0.0347dB/m (0.0106db/Ft)
- Phase Constant (6MHz): 0.17rad/m
- Electrostatic Noise*: 50mV Max.
- Electromagnetic Noise at 10kHz*: 2.0mV Max.
- Microphonics**: 40mV Max.
- Voltage Breakdown: Must withstand at DC 500V/15sec, 20°C
- Insulation Resistance: 10000 MΩ × m Min. at DC 250V, 20°C
- Flex Life*: 16,000 cycles
- Tensile Strength: Over 980N
- Emigration: Non-Emigrant to ABS resin
- Applicable Temperature: -20°C‾ +60°C (-4°F‾ +140°F)
- Standard
- AES3-100X (ANSI S. 4. 40-199-X)
- EBU Rech, 3250-E
- CEI / IEC 958 / CCIR Rec. 647
- UL AWM 2552, 30V, 60#176;C, VW-1, #18AWG
