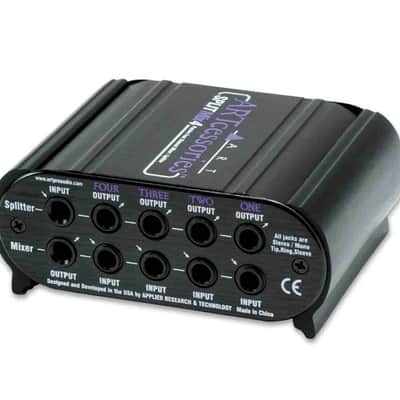

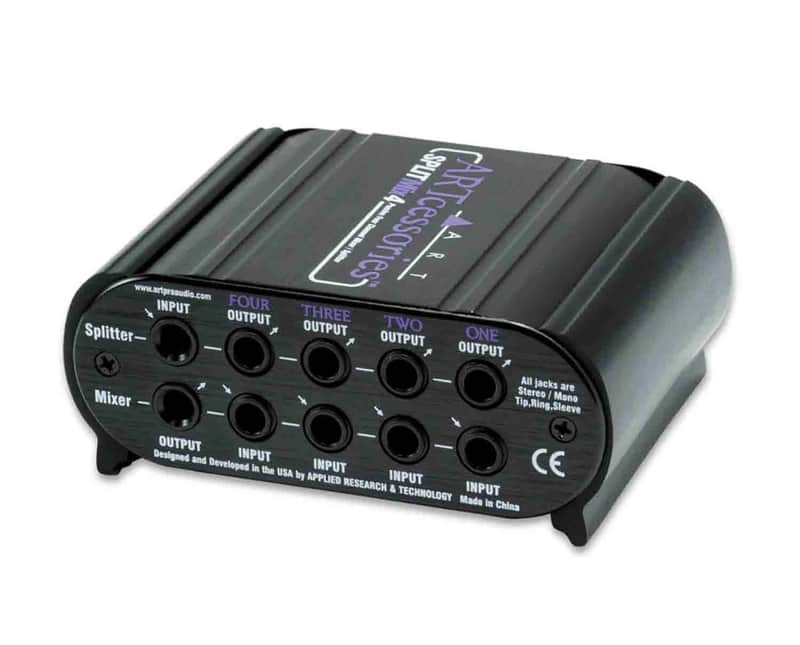

The Art SPLITMix4, is a Four-Channel Passive Splitter and Mixer that offers a wide variety of configurations. Mix 4 stereo input channels down to 1 stereo output, split a stereo input signal to distribute 4 stereo output channels or combine the configurations for a wide range of applications. You can even configure the SPLITMix4 as 4 stereo input channels thru 4 independent level attenuators to 4 stereo output channels.

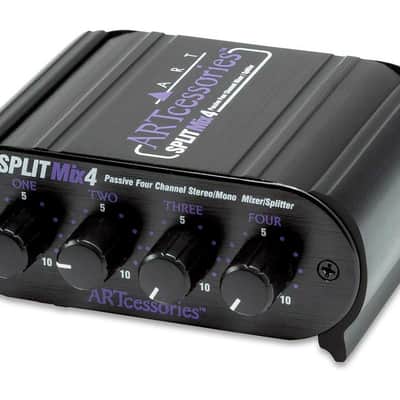

Independent stereo level controls are provided on each channel. All 1/4-inch connections are stereo TRS and all channel connections have intelligent switching to allow for a wide variety of configurations. Plugging into a mix input channel removes it from the splitter bus, and plugging into a splitter output channel removes it from the mix bus. Stereo or mono operation is determined by the type of 1/4-inch plug and cabling that you use.

Frequency Response: 20Hz – 20kHz, +/-1dB

Total Harmonic Distortion: <0.005% @ 1kHz (typical)

Phase Shift:  <10 degrees @ 20kHz

Input Impedance: 25k -100k Ω

Ouput Impedance: 1k – 4k Ω

Insertion Loss: 12dB (typical)

Connectors: 1/4-inch TRS stereo

Maximum Attenuation: > 90dB (typical)

Channel Isolation: > 90dB (typical)

Power Requirements: Fully Passive

Dimensions : 1.85″ x 4.6″ x 4.1″

Weight: 0.84 lbs (0.38 kg)
