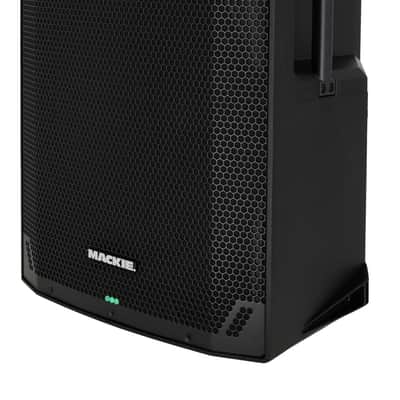

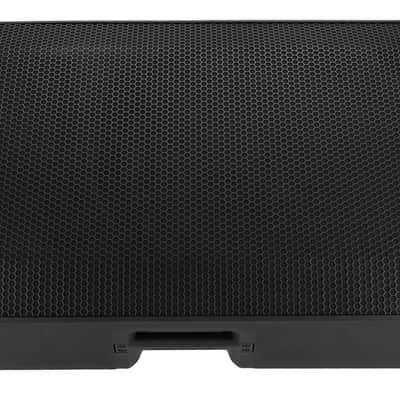

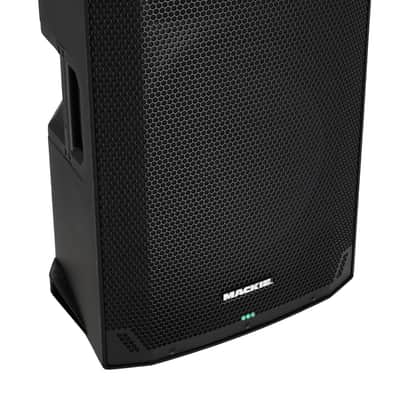

Mackie Thump15 V4 15” 1400w Active DJ PA Speaker w/Bluetooth+Thump15S V4 15" Sub

Package Includes:

• (1) Mackie Thump15 V4 15" 1400 Watt Powered Active DJ PA Speaker w/Bluetooth
• (1) Mackie Thump15S V4 15" 1400 Watt Powered Active Subwoofer Class D Sub
• (1) Rockville GASPOLE-B M20 Threaded Air Assist Subwoofer-Speaker Pole Mount Stand

What’s in the Box:

• Thump15v4 Loudspeaker

• Power Cable

• Quick Start Guide


Description:

Mackie Thump15v4 15" Professional Powered Loudspeaker feat. Sound Check DSPTM and Bluetooth® - High SPL Portable PA Speaker, Wireless Streaming and Linking, Voicing Modes, Control App, Mixer, 1400W

Make an Impact
Whether you're a musician taking the stage or a DJ packing the dance floor, make an impact with the Thump15v4 professional loudspeaker featuring Sound Check DSPTM.

Loudest. Lowest. Clearest
Mackie Thump15v4 professional powered loudspeakers are the loudest, lowest and clearest everyday gigging solution for any live sound user of any experience level, combining 130 dB maximum SPL, 34 Hz low frequency response and Sound Check DSPTM digital signal processing.

Features:

• Loudest volume with 130 dB maximum SPL

• Lowest bass with 34 Hz low frequency response

• Clearest sound with SoundCheck DSPTM

• 1400W class-D amp, 1” compression driver, 15” woofer

• Selectable voicing modes: Flat, DJ, Live and Wedge

• Instant setup features: Outdoor Mode, Music Ducking and Feedback Eliminator

• Bluetooth® streaming, linking and Thump Connect 2 app

• Built-in mixer with inputs for mic and line-level sources

• Premium metal handles and rugged frame

• M10 fly points for suspending and permanent installation


Technical Specs:

• Frequency Response (–10 dB): 34 Hz – 20 kHz

• Frequency Response (–3 dB): 41 Hz – 20 kHz

• Horizontal Coverage (–12 dB): 140 °

• Vertical Coverage (–12 dB): 60 °

• Maximum SPL Peak: 130 dB

• Monitor Angle: 40 °

• Low Frequency Transducer: 15 in / 381 mm woofer with ferrite

• High Frequency Transducer: 1.0 in / 25 mm high-temperature polymeric compression driver

• System Power: 1400 watts peak

• Low Frequency Power: 1200 watts peak

• Low Frequency THD: <1%

• Low Frequency Cooling: Convection

• Low Frequency Design: Class D

• High Frequency Power: 200 watts peak

• High Frequency THD: <1%

• High Frequency Cooling: Convection

• High Frequency Design: Class D

• Input Type: 2x Female XLR, 1/4" Balanced TRS combo jack, 1/8" TRS and Bluetooth®

• Mic/Line Impedance: 10kO Balanced

• 1/8 ? Line Impedance: 10kO Balanced

• Mix Out: Male XLR Balanced

• Mix Out Impedance: 150O Balanced

• Crossover Frequency: 1.8 kHz

• Bluetooth® Protocol: 5.0

• Bluetooth Function: Audio streaming and user interface control

• Line input power: 100–240V~, 50–60 Hz, 350 W

• AC Connector: 3-pin IEC 250 VAC, 10 A male

• Power Supply Type: Switchmode Universal mains regulated power supply with PFC integrated

• Voicing: Four voicing modes

• Input Protection: Peak and RMS limiting, power supply and amplifier thermal protection

• Feedback Eliminator: On / Off

• Display LEDs: Voicing Mode, Outdoor Mode, Music Ducking, Feedback Eliminator, Front LED, Bluetooth Status, Link Status, Signal/Overload

• Mounting Methods: Floor mount, pole mount via the built-in socket on the bottom of the cabinet (be sure the pole is capable of supporting the weight of the Thumpv4 loudspeaker) or fly via the integrated M10 mounting points (using M10 1.5 x 17 mm forged shoulder eyebolts)

• Height: 27.4 in / 696 mm

• Width: 17.3 in / 439 mm

• Depth: 14.0 in / 356 mm

• Weight: 32.6 lb / 14.8 kg

What’s in the Box:

• Thump15Sv4 Subwoofer

• Power Cable

• Quick Start Guide


Description:

Mackie Thump15Sv4 15" Professional Powered Subwoofer feat. 132 dB SPL, 27 Hz Low Frequency, Selectable High Pass Modes, Phase Invert Switch, Built-in Carry Handles, Connect Any Loudspeakers, 1400W

Leave an Impression
Craving some extra oomph for your PA system? You need a subwoofer. Thump15Sv4 shakes the floorboards with massive bass that gets people on their feet, for moments that leave a lasting impression. Connect loudspeakers. Dial in the perfect low end. Feel the difference of a professional subwoofer that brings music alive with complex basslines and punchy kicks.

Complete Your Thump System With a True Workhorse
Thump15Sv4 combines a 1400W Class-D amp and 15” woofer for massive 132 dB SPL and floor-shaking 27 Hz low frequency. It’s rugged enough to handle any gig and features built-in handles for easy loading, making it the ultimate subwoofer for gigging professionals like DJs and musicians.

Features:

• 1400W ultra-efficient Class-D amplifier

• 15” high-performance woofer

• High pass modes tailor the bass to your speakers

• Fully mutable level control

• Stereo XLR inputs for your audio source

• Stereo high-pass XLR outputs for loudspeakers

• Stereo full-range XLR outputs with mono button for chaining more subs

• Phase invert switch

• Built-in ergonomic carry handles

• M20 mounting thread for SPM400 speaker pole (sold separately)


Technical Specs:

• Frequency Response (–10 dB): 27 Hz – 160 Hz

• Frequency Response (–3 dB): 34 Hz – 160 Hz

• Maximum SPL Peak: 132 dB

• Low Frequency Transducer: 15 in / 381 mm woofer

• System Power: 1400 watts peak

• Low Frequency Power: 1400 watts peak

• Rated THD: <1%

• Cooling: Convection

• Design: Class D

• Input Type: 2x Female XLR Balanced

• Input Line Impedance: 10kO Balanced

• Output Type: Male XLR Balanced (2x Full Range, 2x High Pass)

• Full Range Output: Stereo / Mono

• Phase: Normal / Invert

• Output Impedance: 150O

• Line Input Power: 100–240V~, 50–60 Hz, 400W

• AC Connector: 3-pin IEC 250 VAC, 10 A male

• Power Supply Type: Switch mode Universal mains regulated power supply with PFC integrated

• Input Protection: Peak and RMS limiting, power supply and amplifier thermal protection

• Display LEDs: Front LED, High Pass Mode, Signal/Overload

• Mounting Methods: Thumpv4 Series subwoofers are designed to sit on the floor or stage. They are NOT designed to be pole-mounted or suspended. The cabinet has no rigging points and is not suitable for rigging. Never attempt to suspend a Thumpv4 Series subwoofer by its handles.

• Height: 18.5 in / 470 mm

• Width: 22.1 in / 561 mm

• Depth: 23.0 in / 584 mm

• Weight: 57.4 lbs. / 26.0 kg

Video of GASPOLE-B:

Features:

• Rockville GASPOLE-B M20 Threaded Air Assist Subwoofer-Speaker Pole Mount Stand
• Adjustable air assist from 33.5" - 55" Inches
• Air-Assist Makes Raising and Lowering Super Easy!
• Raises even the heaviest speakers with very little effort. Air-assist does the work for you.
• Fits all subwoofers with standard M20 threading such as Presonus, JBL PRX, VRX, STX and SRX818
• Load capacity: 140 Lbs
• Pole diameter: 1.38" inches (35mm)

Fit Guide:

Brand Model RCF SUB 9007AS SUB 9006AS SUB 9004AS SUB 8006AS SUB 8005AS SUB 8004AS SUB 905AS II Mackie DRM18S DRM18S-P JBL EON618S PRX815XLF PRX818XLF SRX818SP SRX828SP VRX915S VRX918S SRX718S QSC KW181 KSUB KLA181 PreSonus AIR15S ULT18 AIR18s StudioLive 18sAI CDL18s
