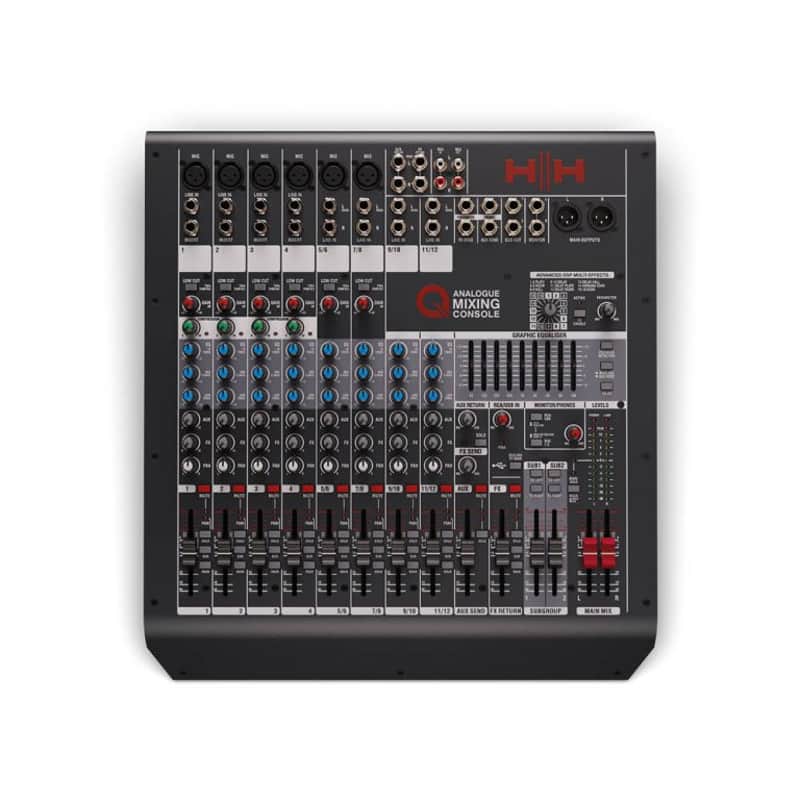

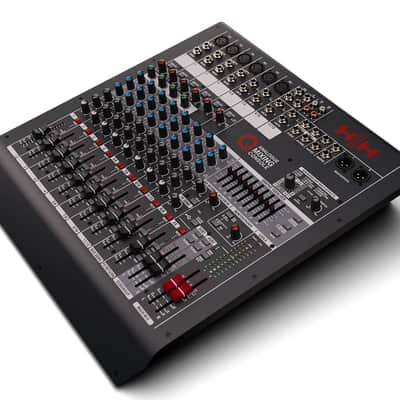

HH Audio Q12FX Q Series 12-Channel Stereo Mixing Console w/DSP

Q12FX

The Q12FX is a 12-channel analogue mixing console designed and engineered in the UK. The Q12FX consists of 12 input channels: 6 mono channels with microphone inputs utilising low-noise microphone preamps, plus a line-in option on each channel alongside 4 stereo line input channels perfect for electric pianos, synthesizers, drum machines, audio from external media players, or any other line-level sources.

Channels 1 to 4 feature an easy-to-use single-knob compressor giving you full control over the dynamic range of your input sources. A low cut at 75Hz plus a 3-band EQ is available on each channel, allowing you to shape the tone of individual sound sources, helping you to create a beautifully balanced mix.

16-high-quality DSP effects offer even more options for your audio productions, with multiple reverbs, delays, and echoes to choose from. The 9-band graphic EQ with feedback detection allows you to grasp the sound of your mix as a whole and adjust accordingly before sending it to front of house.

The Q12FX also offers 2 Subgroups to give you further control, allowing you to adjust the level of the channels routed to each group with ease. 2in/2out USB functionality makes the Q12FX the perfect tool for recording performances, podcasts, and music production.

All of this, combined with comprehensive monitoring, 2 auxiliary sends, RCA in and out, global phantom power, pan on each channel, and a 12-point LED meter for your main mix, all housed in a robust chassis, makes the Q12FX a complete portable powerhouse for traveling musicians and engineers alike. 

Specifications:

• 12 Channels.
• 6 Low Noise Mic Inputs.
• 4 Compressors.
• 4 Stereo Inputs.
• 3 Band EQ on all Channels.
• 2 Auxes.
• Pan on each Channel.
• 2 Sub Groups.
• 16 Program DSP w/ parameter adjustment(reverb, delay, echo).
• USB Audio Stereo In/Out.
• Stereo RCA In/Out.Stereo Monitor Out.
• Stereo Balanced XLR Main Out.
• Comprehensive Monitoring.
• Global Phantom Power.
• Clip / Peak lights per channel.
• Solid Construction.
• Internal Universal ~100-240V Power Supply for worldwide operation.
