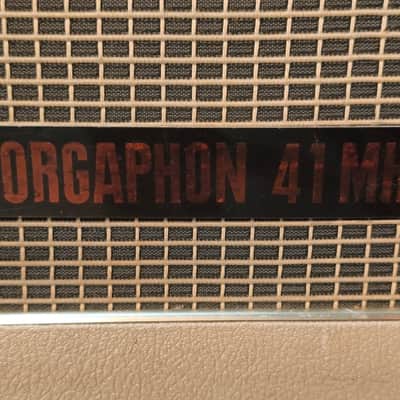

Hohner Orgaphon 41MH '60s
Our users rate Reverb
Looking for a real vintage sound?
This might be your choosen option 🔊

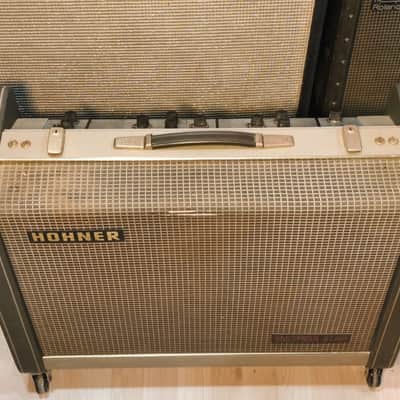

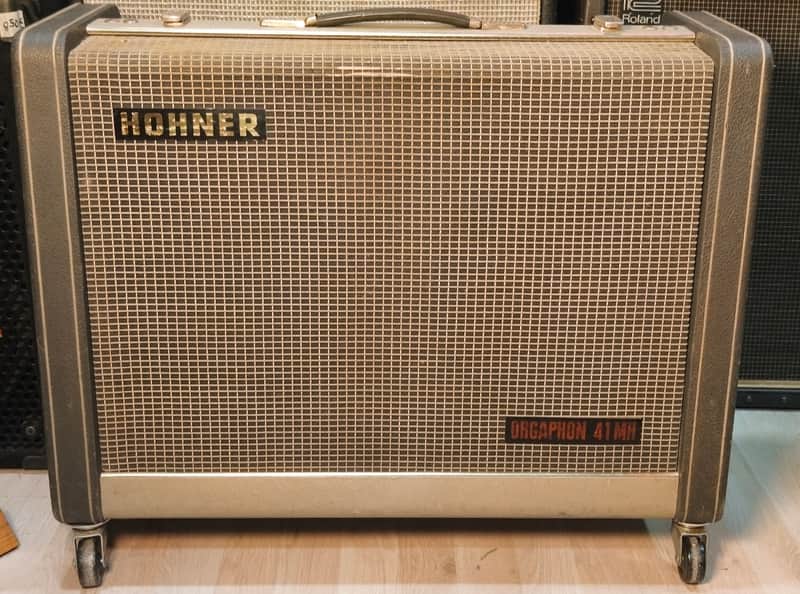

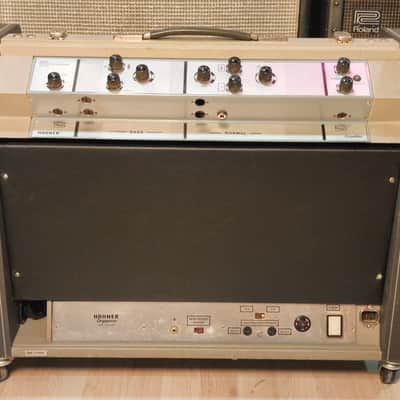

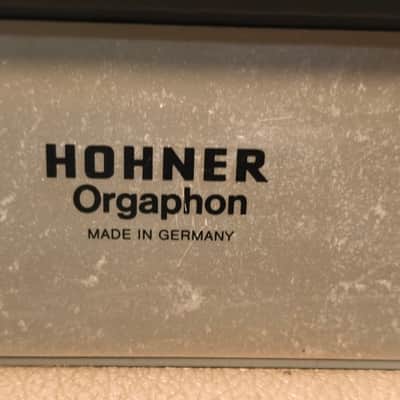

The Hohner Orgaphon 41 MH is a vintage, German-engineered all-tube combo amplifier originally released circa 1965. It was designed as an "all-purpose" multi-input amplifier suitable for guitars, accordions, keyboards, and bass.

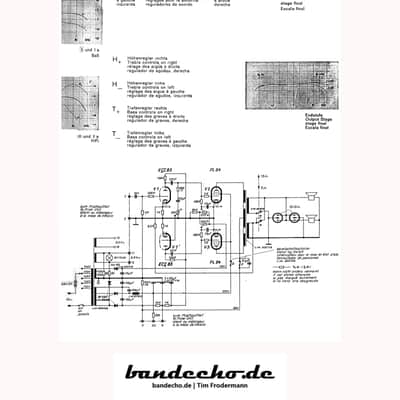

Core Technical DesignAmplifier Type: All-tube combo circuit.Topology: 2 preamps, a summing amplifier, a vibrato generator, 1 spring reverb amplifier, and a push-pull Class B output stage.Tube / Valve Complement: 2 x ECC808, 2 x ECC83, 1 x EF86, 1 x ECL86, 2 x PL84.Frequency Response: 40 Hz to 18 kHz.Total Harmonic Distortion (THD): < 1% relative to 1 kHz.

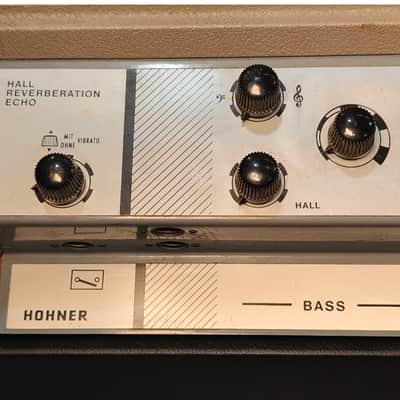

Power SpecificationsPower Output: 32 watts continuous (RMS) / 40 watts music power.Power Supply (AC): Alternating current multi-tap supply switchable between 110V, 125V, 155V, 220V, and 240V.Mains Power Consumption:Standby: 90 watts.Idle: 110 watts.Full-load: 130 watts.Audio & Built-in EffectsSpeakers: Two 12-inch full-range Alnico speaker drivers.Reverb System: Built-in Hammond spring reverb system with adjustable intensity.

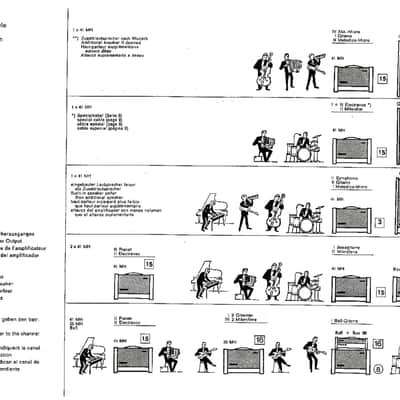

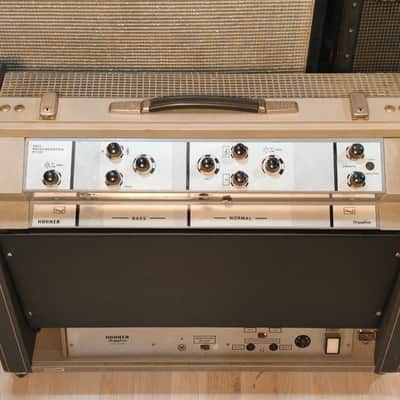

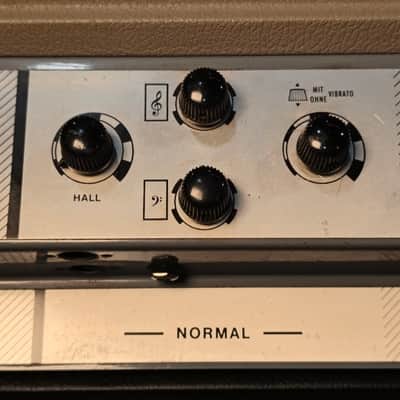

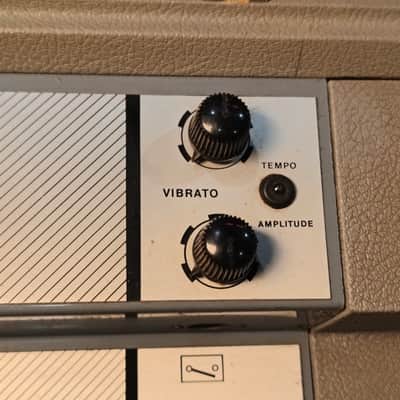

Vibrato System: Electronic vibrator circuit, adjustable in frequency (speed) and amplitude (depth) for specific inputs.Remote Control Capability: Dedicated inputs for separate on/off foot switches controlling Vibrato, Reverb, and Presence.Input Channels & ControlsInputs: 2 primary channels with mixable sub-inputs (4 inputs total across 2 channels).Per-Channel Adjustments: Separate controls for volume, bass, treble, and reverb intensity.Tone Shaping: Global variable Presence control.
Shipping Worldwide full insured by Fed Ex or Ups 🚀
| Listed | an hour ago |
|---|---|
| Condition | Good (Used) Good condition items function properly but may exhibit some wear and tear.Learn more |
| Brand | |
| Model |
|
| Year |
|
| Made In |
|
