Shipping Policy: Please note that we currently ship within Canada only. Offers and orders from outside Canada will not be accepted.

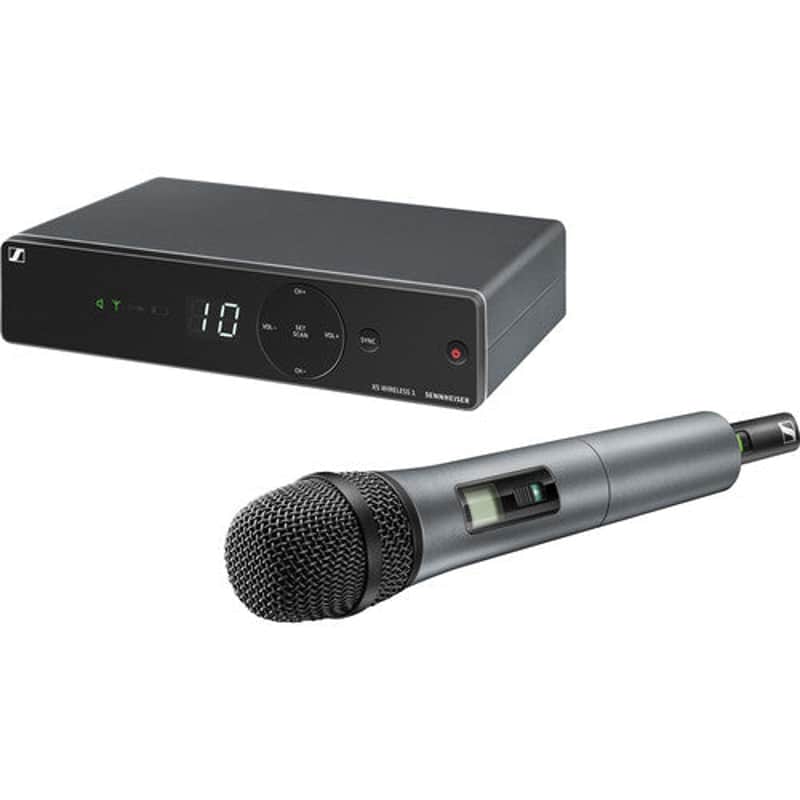

Sennheiser XSW 1-825 Overview
The XSW 1-825-A UHF Vocal Set with e825 Dynamic Microphone from Sennheiser is an easy to use all-in-one wireless system for singers and presenters. It can be used to capture audio for live sound, stage, and theater applications.
The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a vocal microphone and microphone clamp. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.
Featuring Sennheiser's renowned evolution microphone capsule e825
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels
Diversity reception
Sennheiser XSW 1-825 Specs
System
Wireless Transmission
Analog UHF
Number of RF Channels
80
Included Transmitters
1 x Handheld
Diversity
Antenna Diversity
RF Frequency Band
A:548 to 572 MHz
RF Channel Scanning
Auto-Scan
Max Operating Range
100' / 30.5 m
Max Microphones per Band
10
Built-In Recorder
No
Timecode Support
No
Control App Support
No
Encryption
None
Modulation
Wideband FM
Receiver
Form Factor
Tabletop
Mounting Options
Tabletop
Antenna
2 x Internal
Number of Audio Channels
1
Audio I/O
1 x XLR 3-Pin Male Balanced Mic/Line Output1 x 1/4" TS Unbalanced Mic/Line Output
Gain Range
45 dB (5 dB Steps)
Audio Output Level
XLR Output:+12 dB (Balanced)1/4" Output:+6 dB (Unbalanced)
Frequency Response
50 Hz to 16 kHz -3 dB
Network I/O
None
USB/Lightning Connectivity
None
RF Principle
Double Superheterodyne
RF Output Power
10 mW
Squelch
Adjustable, 3 to 28 dBmV
Power Requirements
AC/DC Power Adapter
AC/DC Power Adapter
12 VDC at 300 mA (Included)
Display & Indicators
1 x LCD (Channel, Frequency)
Housing
ABS
Dimensions
7.9 x 1.7 x 5" / 200 x 42 x 127 mm
Weight
12 oz / 340 g
Transmitter
Form Factor
Handheld
RF Output Power
10 mW
Audio I/O
None
Pad
None
Muting
Off/On Switch
Auto-Level Control
No
Signal Processing
None
Frequency Response
80 Hz to 14 kHz
Sync Method
Manual
Antenna
Internal
Approximate RF Sensitivity
1.5 mV/PA
Power Requirements
Battery
Battery Type
2 x AA (Included)
Approx. Battery Life
10 Hours
USB/Lightning Connectivity
None
Display & Indicators
1 x LCD (Battery Status, Channel, Power)
Housing
ABS
Dimensions
10.2 x 2" / 260 x 50 mm
Weight
8.6 oz / 245 g
Microphone
Form Factor
Handheld
Color
Black
Sound Field
Mono
Capsule
Dynamic
Polar Pattern
Cardioid
Frequency Range
80 Hz to 14 kHz
SNR
103 dB A-Weighted
THD
< 0.9%
Sensitivity
1.5 mV/Pa
Operating Voltage
1.5 V
Length
10.2" / 260 mm
Diameter
2.0" / 50 mm
Weight
8.6 oz / 245 g
Packaging Info
Package Weight
3.11 lb
Box Dimensions (LxWxH)
13.8 x 12.7 x 3.5"
PriceC$399
