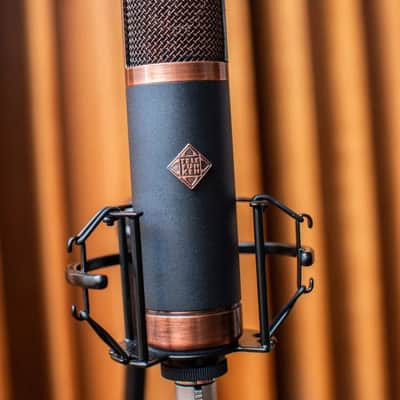

The TF39 is an expansion of the “Copperhead” sound with the addition of 3-pattern selection between Cardioid, Omnidirectional, and Figure-8. This added feature set gives the TF39 greater flexibility and options in the studio.

FEATURES

• Balanced, natural midrange and high end
• Extended low frequency response
• Cardioid, Omni, and Figure 8 polar pattern selection
• Premium Swedish-made Lundahl output transformer
• New Old Stock General Electric 5654W vacuum tube
• Designed and hand assembled in the USA
• Recommended Applications: Vocals, Guitar Amps, Saxophone, Drum Overheads

TECHNICAL SPECIFICATIONS

Type: Vacuum Tube Condenser
Polar Pattern: Cardioid, Omnidirectional, Figure-8
Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: External Power Supply
Capsule: TK67 Center Terminated Large Diaphragm
Tube: NOS GE 5654W
Transformer: Lundahl LL1935
Sensitivity: 17 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier): < 0.3%
Output Impedance: < 300 Ω
Maximum SPL (for 1% THD): 130 dB
S/N Ratio: 87 dBA
Self Noise (Amplifier): 7 dBA
Dimensions: 200 mm L x 46 mm Dia
Weight: 650 g
Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case
