Used but in excellent condition. No rash. Smoke free environment like all my gear. DM me fore questions

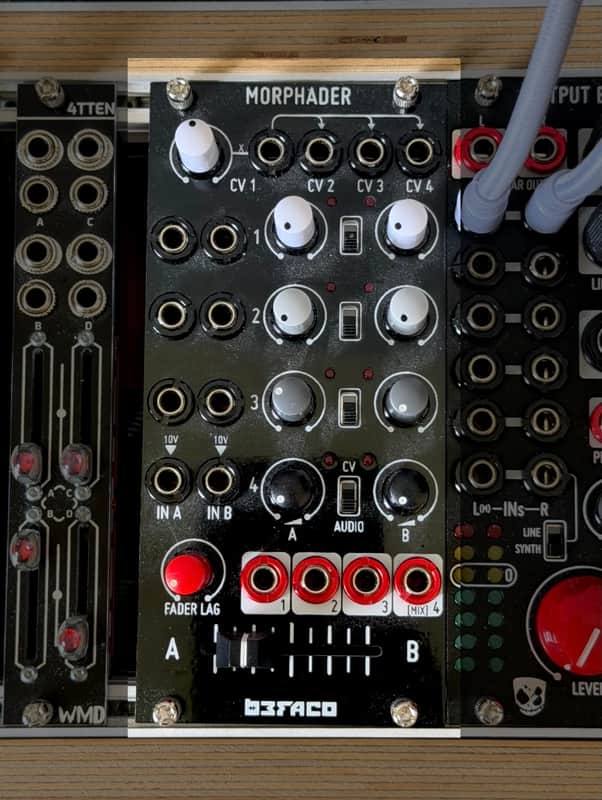

Befaco Morphader is a performative eurorack module designed to make multichannel CV and Audio crossfade easy and comfortable.

Fading from one quad CV/audio scene to another. The core of the module has four CV controlled crossfaders, each with their individual control and a master fader to control them all. The module mixes the four crossfades at its fourth output, thanks to a clever normalization scheme. Each of them can be easily removed from the mix by plugging a cable at its own output.

• CV Controlled four channel crossfader.
• Attenuators per input.
• Normalized voltages to every input, allowing cv levels morphing.
• Audio CV response switch per channel
• Master Fader control with Lag (up to 15s).
• Per channel signal level monitoring.

Morphader is based on four pairs of signals (1- 4). Each pair has two inputs (A-B) that will morph from each other into its designed Output (crossfade). All this controlled either by the main crossfade control or its own CV Input

All inputs are normalized to 10V, allowing it to fade from two fixed voltages selected with its attenuator.

You can make a fade between a signal and a fixed voltage if only one of the inputs is connected. This is quite interesting when working with CV signals as you can create transitions from a moving parameter to a fixed value and vice versa.

Outputs are all summed into the fourth output, allowing complex signal scenes to morphing easily. Each channel will be disconnected from this mix when a cable is plugged into that individual out. The LED\'s on each channel provides visual feedback of the crossfade position.

Power consumption: 53mA (+12V) / 50mA (-12V)
Width: 12 HP
Depth: 26mm
