The Dynacord L2800FD is a 2-channel DSP power amplifier for live sound, rated 2 x 1400 W at 4 ohms. It shares the FIR Drive processing platform with the C Series install amps, but uses XLR inputs with thru connectors and SpeakON speaker outputs for mobile and touring racks.

DSP and Control

Onboard processing includes FIR filters, limiters, output and array delay, PEQ per channel, and load impedance measurement. Dynacord SONICUE software connects over USB for setup and speaker preset management.

Specifications

• Channels: 2
• Rated output (headline): 2 x 1400 W @ 4 Ω
• Dual channel (IHF-A-202): 2200 W @ 2 Ω, 1300 W @ 4 Ω, 650 W @ 8 Ω
• Bridged: 4400 W @ 4 Ω, 2600 W @ 8 Ω
• Topology: Class H
• DSP: FIR Drive, limiters, delay, PEQ; SONICUE remote control

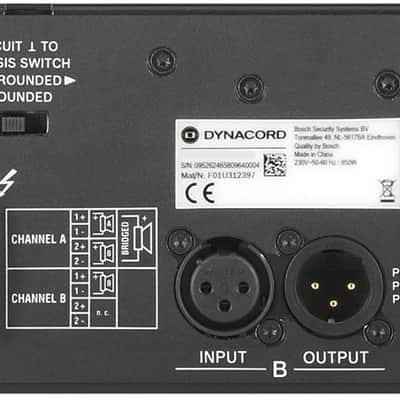

• Inputs: 2 x XLR balanced with XLR thru
• Outputs: 2 x SpeakON
• Other: USB Type B, front-panel power, ground lift
• Cooling: Front-to-rear, 3-stage fans
• Rack size: 2U
• Dimensions: 483 x 88 x 462.4 mm (19.0" x 3.5" x 18.2")
• Weight: 16.2 kg (35.7 lb)

In the Box

• Dynacord L Series DSP power amplifier
• Mains power cord
• USB cable
• Installation manual
• Safety instruction card
