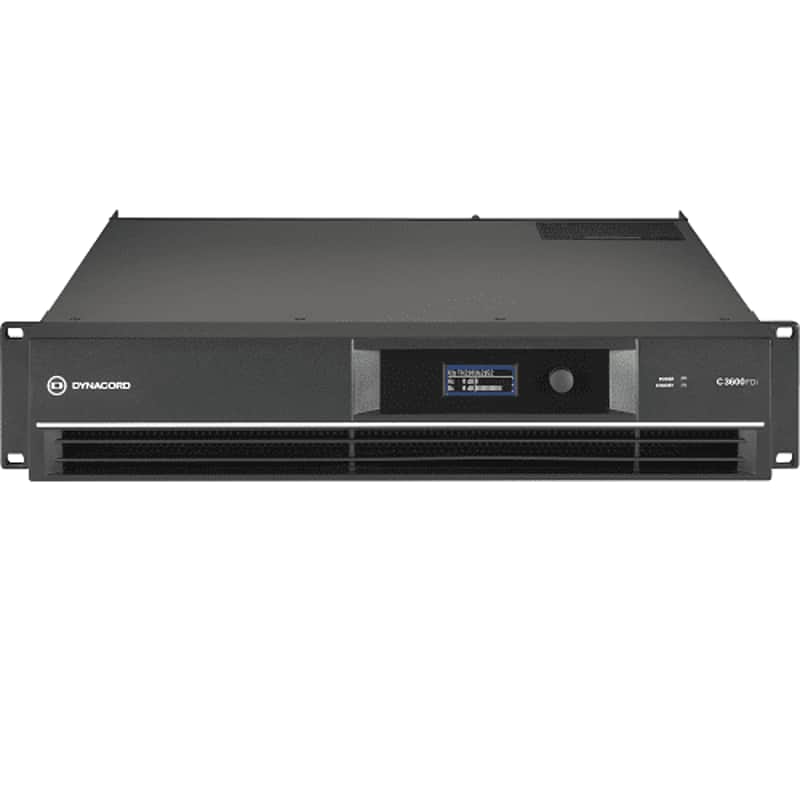

Dynacord C3600FDI 2X1800W DSP Install Power Amplifier

The Dynacord C3600FDi is a 2-channel DSP power amplifier for fixed installation, rated 2 x 1800 W at 4 ohms. It combines a robust linear amplifier stage with onboard FIR Drive processing and SONICUE remote control, plus Euroblock I/O, GPIO, and direct-drive high-impedance capability for 70 V / 100 V lines where supported.

DSP and Control

Onboard processing includes FIR filters, limiters, output and array delay, a 10-band user PEQ and 5-band array PEQ per channel, and load impedance measurement. Setup and monitoring are handled through Dynacord SONICUE sound system software over USB. A rear Power/Standby switch and power-remote input support energy-saving install workflows.

Specifications

• Channels: 2
• Rated output (headline): 2 x 1800 W @ 4 Ω
• Dual channel (IHF-A-202): 3000 W @ 2 Ω, 1700 W @ 4 Ω, 900 W @ 8 Ω
• Bridged: 6000 W @ 4 Ω, 3400 W @ 8 Ω
• High impedance: 100 V dual 2 x 1250 W (70 V not recommended)
• Topology: Class H
• DSP: FIR Drive, limiters, delay, PEQ; SONICUE remote control
• Inputs: 2 x Euroblock balanced line
• Outputs: Euroblock (CH A, CH B, bridged)
• Other: USB Type B, GPIO, power remote
• Cooling: Front-to-rear, 3-stage fans
• Rack size: 2U
• Dimensions: 483 x 88 x 462.4 mm (19.0" x 3.5" x 18.2")
• Weight: 18.2 kg (40.1 lb)

In the Box

• Dynacord C Series DSP power amplifier
• Mains power cord
• USB cable
• Euroblock GPIO connector
• Euroblock output connector
• 2 x Euroblock input connectors
• Power remote connector
• Installation manual
• Safety instruction card
