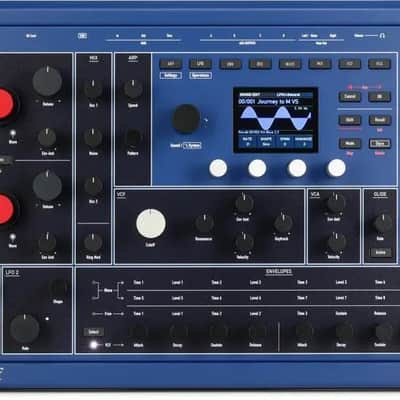

The Waldorf M is an eight-voice, four-part multitimbral wavetable synthesizer that pairs Microwave-heritage wavetable oscillators with true analog filters in the same full-metal desktop chassis family as Kyra and Iridium. It ships with classic Microwave and PPG-converted flavor content while adding modern conveniences the original Microwave never had.

Wavetable modes

Two wavetable oscillators per voice can run Classic Microwave 1 behavior or Modern Microwave II/XT mode. The Mode button switches how the oscillators respond, so the same tables can feel archival or more contemporary. A high-resolution graphic display and four endless encoders support hands-on editing.

Analog filters and I/O

After the digital wavetable core, analog filters warm and shape the tone. Main and aux line outs, headphones with level control, full-size MIDI In/Out/Thru, USB MIDI, and a microSD slot cover studio routing and library exchange.

Specifications

• Type: Desktop wavetable synthesizer
• Polyphony: 8 voices
• Multitimbral: 4 parts
• Oscillators: 2 wavetable oscillators (Classic Microwave 1 / Modern Microwave II/XT modes)
• Filters: Analog filters
• I/O: Main L/R, aux outs, headphones, MIDI In/Out/Thru, USB MIDI, microSD
• Chassis: Full-metal desktop case (Iridium / Kyra family footprint)
• Dimensions: 440 × 305 × 80 mm (17.32" × 12.01" × 3.15")
• Weight: Approx. 5.7 kg (12.6 lb)

In the Box

• Waldorf M synthesizer
• Power supply as included
