The MKD1500 series loudspeaker is engineered to deliver the high output, broadband pattern control and exceptional fidelity that is required by real-world applications from stadiums to intimate music clubs.

Features

  • High output bi-amplified two-way performance
  • High performance coaxial compression driver with extended bandwidth
  • Precision EAW signature broadband pattern control
  • Flexible mounting, weather protection color options

Specifications

  • Frequency Response: 45Hz - 18kHz
  • Max SPL: 145dB
  • Operating Mode: Bi-Amp
  • Subsystem
    • LF Transducer, Loading: 2 x 15in Cone, 4in Voice Coil
    • MF Transducer, Loading: 1 x 2in Exit, 4in Voice Coil, Compression Midrange, Horn Loaded
    • HF Transducer, Loading: 1 x 2in Exit, 2.5in Voice Coil, Compression driver, Horn Loaded
  • Nominal Beamwidth: 45° Horizontal x 45° Vertical
  • Power Handling
    • LF: 1600W @ 4ohms
    • MF/HF: 250W @ 8ohms
  • Connections: Terminal block
  • Dimensions: 37H x 23W x 24D (935mm x 580mm x 600mm)
  • Weight: 130lbs (59kg)

Promoted similar listings













ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model

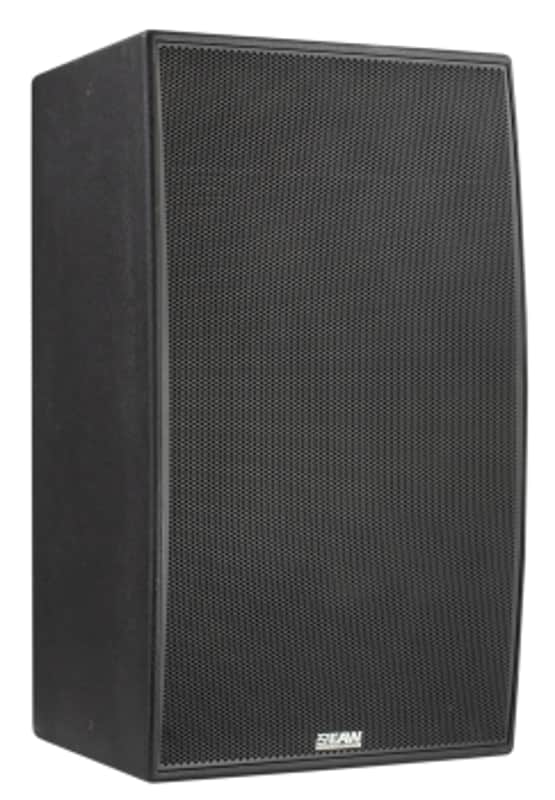

  • EAW MKD1544 2 x 15in 3-Way Full Range Loudspeaker 45° x 45° (Black)
Finish
  • Black
