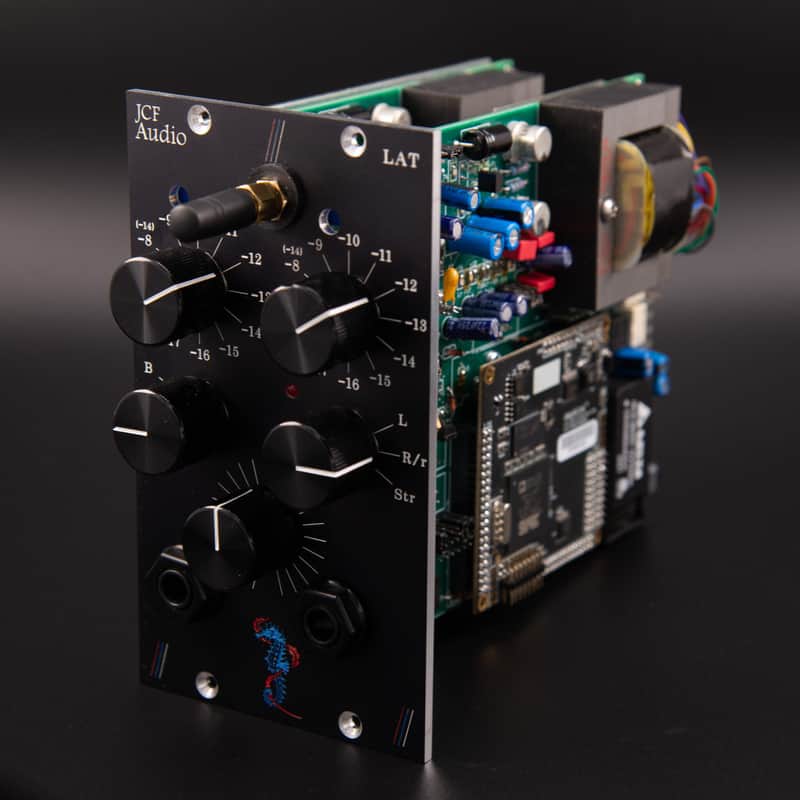

JCF Audio LAT 2 Channel D/A Converter 500 series

The JCF Audio LAT is a High-Resolution 2 channel Digital to Analog converter with wifi streaming, AES, all new in-standard-500-rack sync, and a headphone amp.

The LAT follows somewhat in the lineage of the DAC section of the JCF Latte.

The unit is a two-slot device and receives the industry standard AES/EBU proto- col through either 500 series inputs. Dual-wire configuration is available as well. The LAT can derive its sync/data source at all pro speeds from either of the AES/EBU input sources, the Pin 6 buss when streaming is not active, or the internal reference of the streaming module. The left-hand side of the unit’s AES/ EBU input becomes an output by default when not selected as the active input source. This signal can be utilized with a simple XLR adapter in the case of XLR connections if applicable. The large “R” denoting “right” input and the small “r” denoting “r”emote source/output selection if connected to the forthcoming JCF Audio Somta modular monitoring system.
