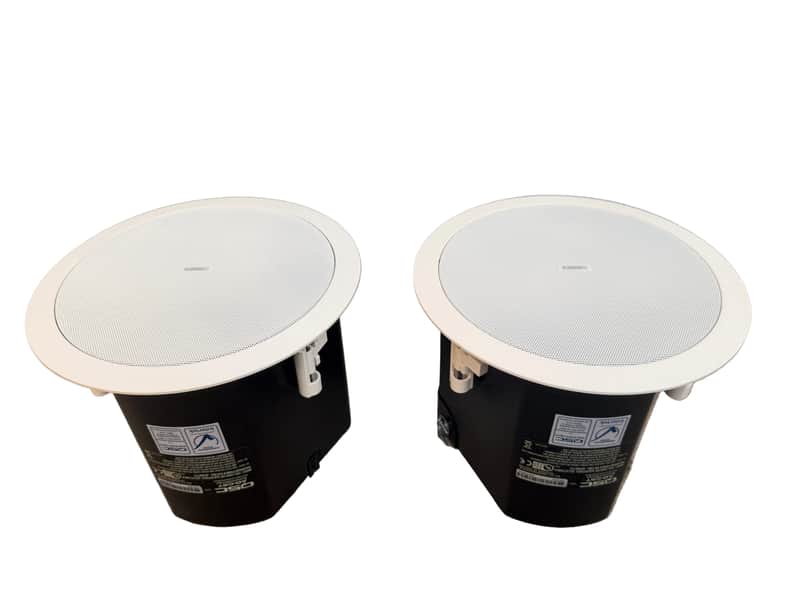

QSC AD-C6T-WH - Ceiling Speakers (Pair - White) - 70/100V - Like New w/ Original Box & Installation Kit

Why Pick the QSC AD-C6T-WH Ceiling Speaker

• Like New condition - sealed and unused.
• Fully tested - all applicable functions verified working.
• 6.5 inch, two way, foreground / background ceiling loudspaker with 70/100V transformer.
• Includes original box and manuals - arrives complete and installation-ready.
• Sold as a factory matched pair, which is how QSC supplies this model, so tonal consistency is guaranteed.

Condition: Like New - Unused in Original Box

This item is in like new condition. It is still in its original box. It has passed our 7-point functional test.

What's included

• QSC AD-C6T (Pair)

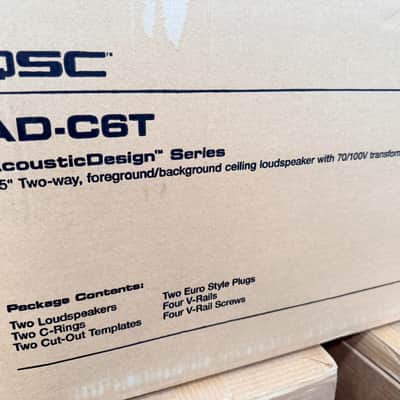

• Original Box

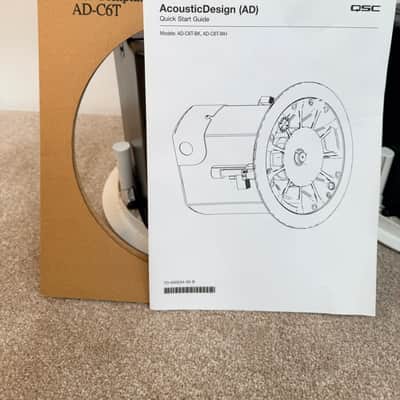

• Manuals

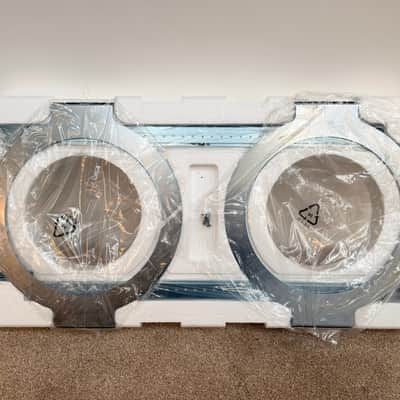

• Full Installation Kit

About the QSC AD-C6T-WH

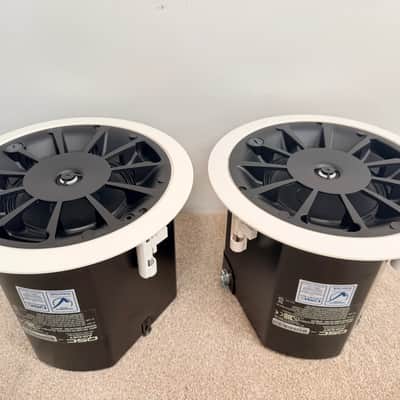

The QSC AD-C6T-WH is a 6.5 inch two way ceiling loudspeaker from the AcousticDesign Series, supplied as a matched pair in white (RAL 9010). Each unit combines a 165 mm weather treated paper cone woofer with a 19 mm aluminium dome tweeter mounted on a DMT waveguide, giving an effective frequency range of 65 Hz to 20 kHz, 88 dB sensitivity and a maximum SPL of 106 dB continuous / 112 dB peak.

DMT (Directivity Matched Transition) matches the tweeter waveguide to the natural conical behaviour of the woofer at crossover, producing a consistent 135° conical coverage pattern and clean off axis response. Because the whole AcousticDesign family shares tonal characteristics across ceiling, surface and pendant models, these blend seamlessly into mixed installations.

A low loss, low saturation 60 watt transformer keeps response accurate on distributed lines. Tap selection is via a rotary switch under the grille: 7.5 W, 15 W, 30 W and 60 W on 70 V, or 15 W, 30 W and 60 W on 100 V, plus a 16 ohm bypass for direct low impedance drive. Connection is via a locking 4 pole Euroblock with parallel output, accepting up to four 18 AWG pairs, and the conduit cover plate lifts off with a single captive screw for pre install wiring.

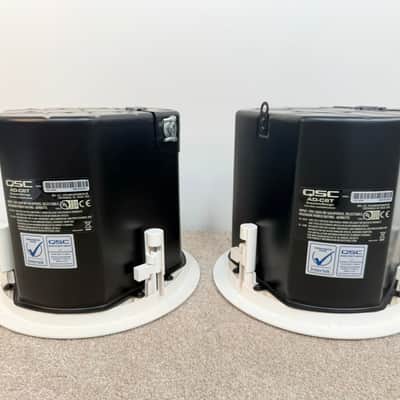

Construction is a UV stabilised ABS baffle on a powder coated steel back can with a snap fit magnetic steel grille and a blemish free removable QSC logo for installs where branding is not permitted. IP-34 rated and specified for indoor use across a -20 to 50 °C operating range. Installation uses the 3x double stepped, long travel dog ear blind mount system, capturing 0 to 2.25 inches of ceiling thickness, with C-ring and tile rails included.

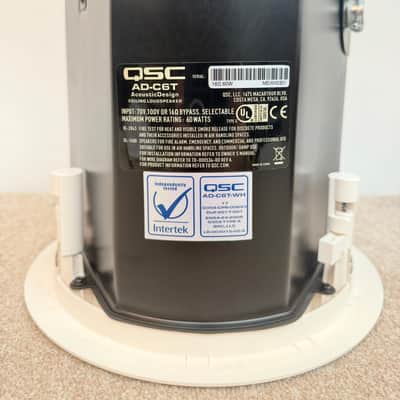

Certified to UL1480 and UL2043 for use in air handling plenums, NFPA90 and NFPA70 compliant, EN54-24 Type A, with a UL1876 registered transformer and a UL94-V0 / 5VB rated baffle. EASE, CF2, CAD and BIM data are published by QSC for system design.

QSC AD-C6T-WH Specifications Field Value MPN (primary) AD-C6T-WH QSC Factory Code FG-001606-02 (printed as "AD-C6T WHT 16Ω/60W") UPC 684284067562 EAN-13 0684284067562 Brand QSC Series AcousticDesign Sold as Pair Type 6.5 in two-way ceiling loudspeaker LF driver 165 mm weather-treated paper cone HF driver 19 mm aluminium dome on DMT waveguide Frequency range 65 Hz to 20 kHz Sensitivity 88 dB (1 W / 1 m) Max SPL 106 dB continuous / 112 dB peak Coverage 135° conical DMT Power handling 60 W Impedance 16 ohm bypass Line voltage 70 V / 100 V Transformer taps 7.5 / 15 / 30 / 60 W (70 V), 15 / 30 / 60 W (100 V) Connector 4-pole locking Euroblock with parallel output Enclosure ABS baffle on powder-coated steel back can Grille Powder-coated steel, snap-fit magnetic Colour White (RAL 9010) Ingress protection IP-34, indoor use Operating temp -20 to 50 °C Cut-out diameter 245 mm Dimensions 280 mm dia x 237 mm depth Ceiling thickness range 0 to 57 mm (0 to 2.25 in) Net weight 4.3 kg each Shipping weight 12.6 kg (pair packed) Shipping dimensions 330 x 737 x 381 mm Certifications UL1480, UL2043, NFPA90, NFPA70, EN54-24 Type A
