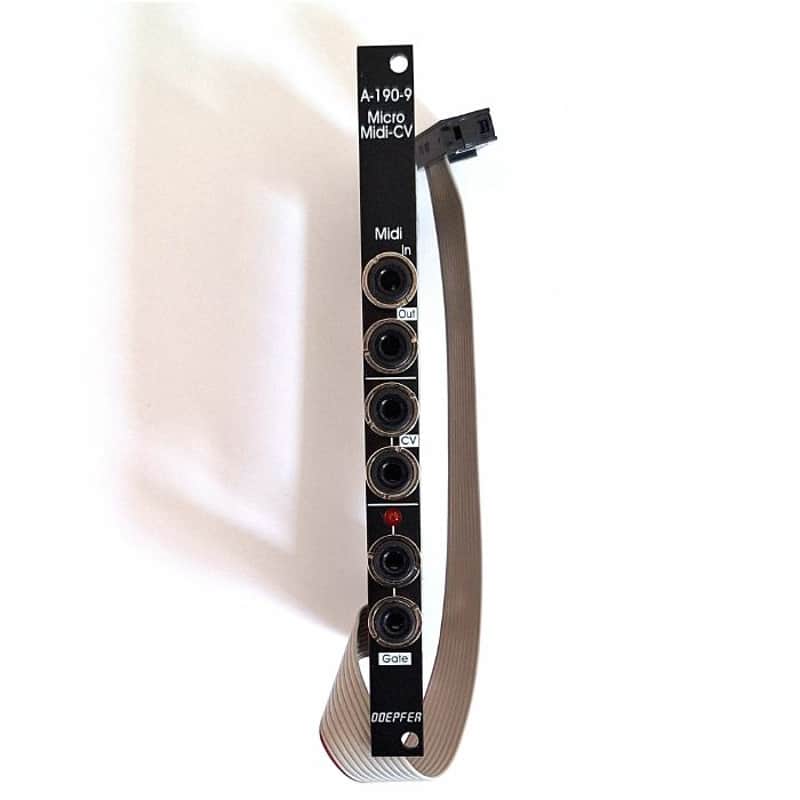

Doepfer A-190-9v Micro MIDI To CV/Gate Interface Module (vintage edition)

Module A-190-9 is a simple Midi-to-CV/Gate interface. It is planned for applications where the more sophisticated functions of the other midi interfaces of the A-190-x series are not required. These are the most important features of the A-190-9: Simple monophonic midi-to-CV/Gate interface 3.5 mm stereo socket as midi input The midi input can be normalled to the midi output of another A-100 module by means of Arduino cables, provided that the other module features an internal midi output (e.g. A-155-2, A-198-2) P Particularly the CV voltage of the A-155-2 can be output in quantized form Three CV outputs, 1V/Octave (3-fold multiple) The CV output is controllen via midi by note messages, the midi reference note number 36 corresponds to 0V CV The module responds only to the note numbers of midi note-on/off messages (no velocity, no pitchbend, no control changes, no clock) The scale of the CV output can be adjusted by means of a multi-gang trimming potentiometer (factory setting: exactly 1.00V/octave) Two gate outputs (2-fold multiples) Can be used also as a simple breakout module for midi in/out (e.g. for A-155-2, A-198-2) Depth: 45 mm 2 HP
