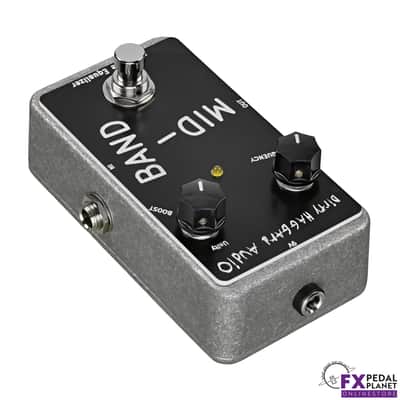

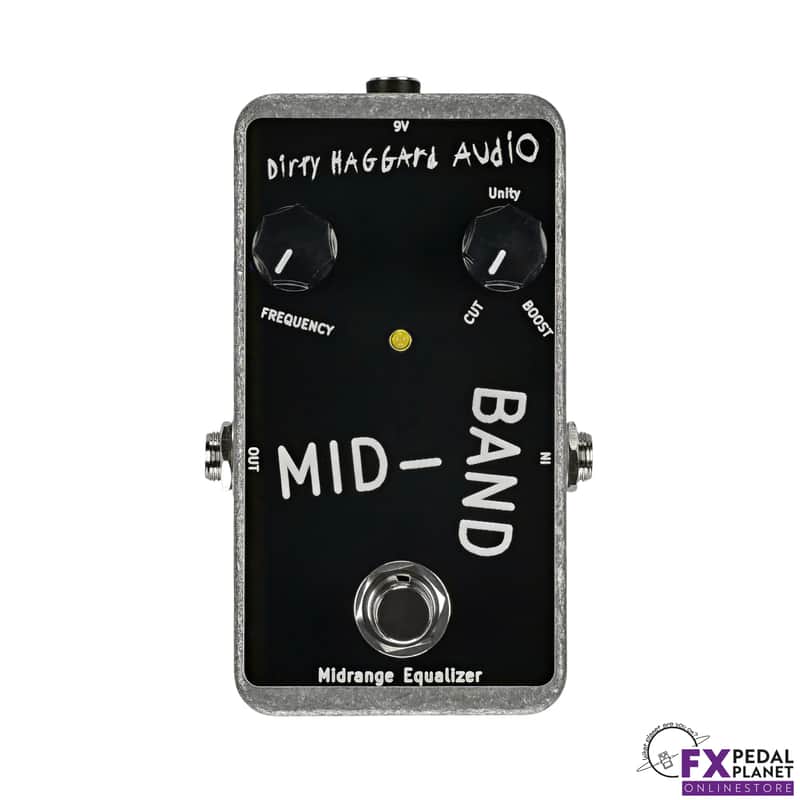

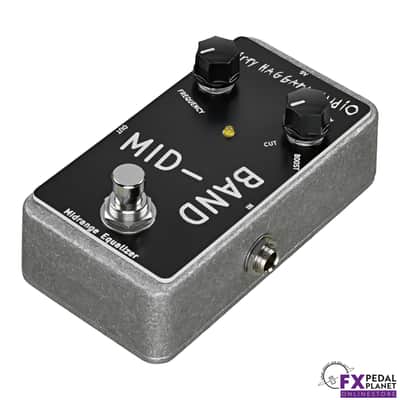

Dirty Haggard Audio Mid Band 2026 - Natural and Black

HIGHLIGHTS

• Compact midrange EQ pedal for guitar and bass
• Boost or cut up to 16dB of focused mid frequencies
• Improves note clarity, punch and mix presence
• Frequency and Cut/Boost controls with intuitive 12 o’clock unity
• Unique, highly usable Dirty Haggard Audio circuit
• Hand built by Dirty Haggard Audio
• Durable all-metal enclosure for stage and studio use
• Bold, clear graphics for easy visibility on dark stages
• LED status indicator for clear on/off visibility
• True bypass switching for signal integrity
• Fully analogue signal path
• Top-mounted jacks for tidy pedalboard layouts
• Manufacturer warranty for peace of mind

DESCRIPTION

The Mid Band by Dirty Haggard Audio is a dedicated midrange equaliser pedal for guitar and bass, giving precise control over the frequencies that shape presence, articulation and punch. With up to 16dB of boost or cut between 360Hz and 1.6kHz, it allows players to refine how their instrument sits in a band mix without overhauling their entire rig.

Boosting mids enhances clarity, pick attack and perceived loudness, helping lead lines cut through and tightening overdriven tones. Cutting mids delivers a more aggressive, scooped character suited to heavier rhythm sounds and layered studio work. From blues and classic rock through to modern metal, the Mid Band provides a practical way to fine-tune tone for both live and recording use.

The Frequency control selects the centre point of the midrange focus, while the Cut/Boost control offers smooth adjustment with unity at 12 o’clock for quick, reliable setup. The fully analogue circuit delivers musical, responsive shaping in a straightforward format.

Housed in a compact metal enclosure with clear, bold graphics, the Mid Band is built for regular gigging. A bright LED shows when the effect is engaged, true bypass preserves signal integrity when off, and top-mounted jacks support tidy pedalboard layouts. Powered by a standard 9V centre negative supply and backed by the manufacturer’s warranty, it is a reliable addition to any serious pedalboard.

CONTROLS

• FREQUENCY: Selects centre frequency from 360Hz to 1.6kHz for precise mid focus
• CUT/BOOST: Adjusts up to ±16dB with unity at 12 o’clock
• FOOTSWITCH: Engages or bypasses the effect with true bypass switching

COMPONENTS AND TECHNICAL SPECIFICATIONS

• Fully analogue midrange equaliser circuit
• Adjustable centre frequency range 360Hz to 1.6kHz
• Up to 16dB boost or cut at selected frequency
• True bypass switching for signal integrity
• Top-mounted input and output jack sockets
• Standard 9V DC centre negative power requirement
• Compact metal enclosure suitable for pedalboards
• Designed for guitar and bass applications
• Powered by standard 9V centre negative supply (not included)
• Battery operation not supported
• Current draw measured with Truetone 1Spot mA Meter:
• Bypass: Approximately 7 mA
• Engaged (maximum): Approximately 7 mA

Current draw may vary slightly depending on control settings, circuit behaviour, and active features such as gain stages, modulation, filtering, or reverb tails. For best performance, use a high quality isolated power supply that matches the pedal’s current requirements. Always refer to the manufacturer’s recommendations, as incorrect powering may cause damage.

ENCLOSURE DIMENSIONS

• Depth: 111 mm / 4.4 in
• Width: 60 mm / 2.3 in
• Height: 32 mm / 1.2 in

WEIGHT

• 208 g
• 0.46 lbs
