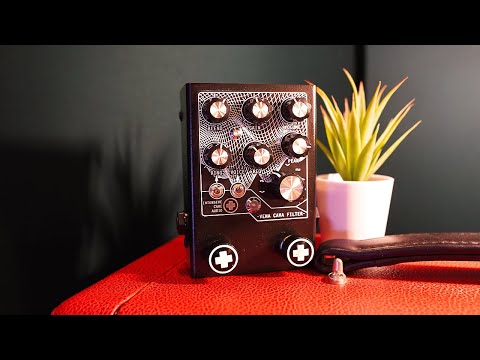

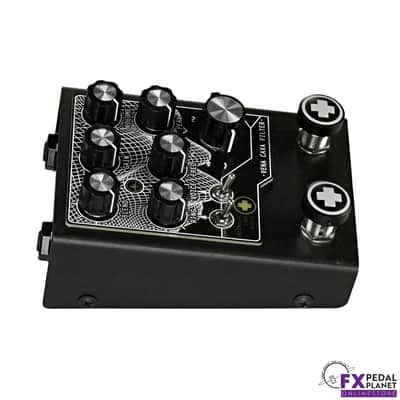

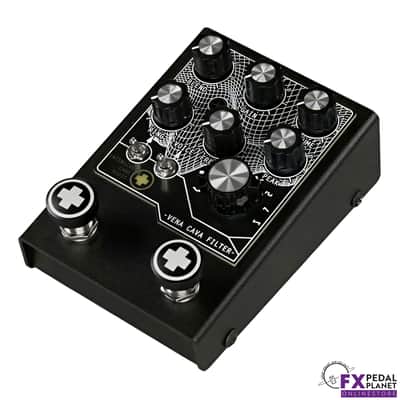

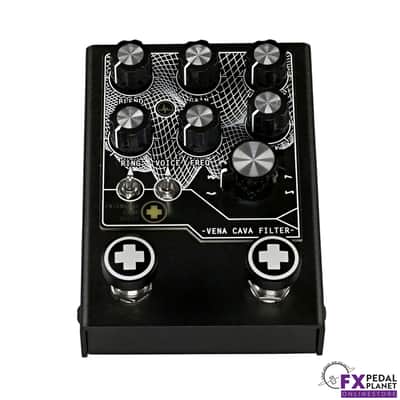

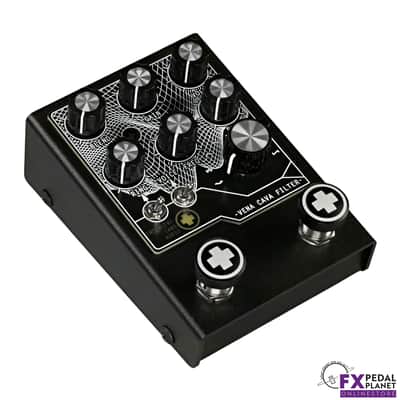

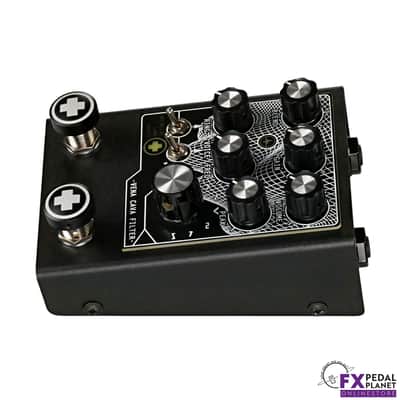

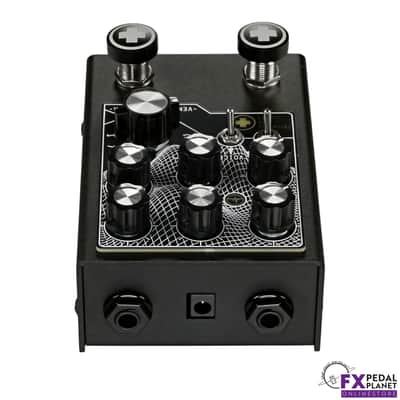

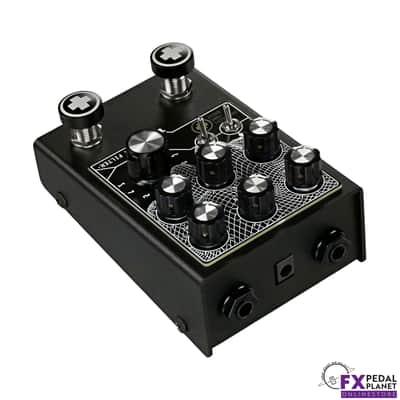

Intensive Care Audio Vena Cava Filter 2021 Black

HIGHLIGHTS

• Distortion with auto filter and ring modulation in one pedal
• From smooth swirl to glitchy, aggressive, sci-fi textures
• Responsive gain and modulation that tracks picking dynamics
• Eight LFO waveforms, tap tempo, blend and depth shaping
• Part digital LFO with analogue distortion and filtering stages
• Hand built and wired in London, England
• Stylish textured black powder coated metal wedge enclosure
• Two tone colour graphics with illuminated logo detailing
• LED indicates power, LFO speed and waveform movement
• Soft touch relay based true bypass switching
• Hybrid digital and analogue design
• Side mounted jack sockets for neat pedalboard layout
• Manufacturer’s lifetime warranty

DESCRIPTION

The Intensive Care Audio Vena Cava Filter combines high gain distortion with a dynamic auto filter and ring modulation in a single, distinctive unit. It can serve as a powerful standalone distortion, a rhythmically animated filter effect, or an experimental texture machine suited to alternative, noise, industrial and modern psych sounds.

The distortion circuit delivers everything from mild overdrive to thick, saturated drive with generous output. Adding the filter introduces sweeping, stepped and random modulation patterns that reshape your tone in motion. Smooth sine and triangle waves provide fluid swirl, while square, ramp and random modes create choppy, glitchy and percussive effects. The integrated ring modulator adds metallic overtones, octave down textures and stuttering artefacts, either swept by the LFO or fixed at a chosen frequency.

The eight position Wave Function selector offers Random Slopes, Random Steps, Staircase, Sine, Triangle, Square, Ramp Down and Ramp Up. Freq sets modulation speed, shown by the LED above it, and can be controlled via tap tempo. Peak adjusts modulation depth. Ring sets the ring modulator frequency, with a switch to remove LFO control. Voice selects between two filter voicings, including a narrower high emphasis notch. Gain sets distortion intensity, Volume controls output, and Blend mixes pure distortion with the filtered and ring modulated signal.

The hybrid design pairs a digital LFO with analogue distortion and filtering stages. Soft touch footswitches operate relay based true bypass for reliable, quiet switching. Built in London, England, the wedge shaped metal enclosure features a textured black powder coat finish, Neutrik jacks and side mounted sockets for tidy pedalboard integration. Backed by a manufacturer’s lifetime warranty, the Vena Cava Filter offers distinctive, wide ranging modulation driven distortion in a robust boutique format.

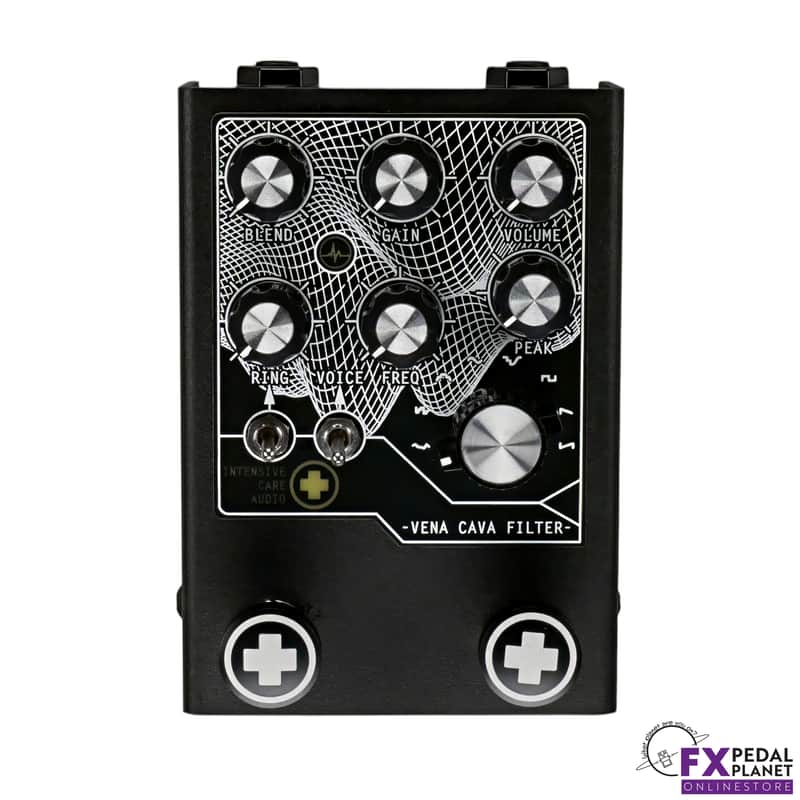

CONTROLS

• WAVE FUNCTION: Selects eight LFO waveforms from smooth to stepped and random
• FREQ: Sets LFO speed; LED displays rate and waveform movement
• RING: Sets ring modulator base frequency; fully clockwise disengages
• RING SWITCH: Removes LFO from ring mod for fixed frequency control
• VOICE SWITCH: Selects between two filter voicings, including narrower high emphasis notch
• VOLUME: Adjusts overall output level with ample headroom
• PEAK: Controls LFO depth over filter notch and ring modulation
• BLEND: Mixes pure distortion with filtered and ring modulated signal
• GAIN: Ranges from mild overdrive to heavy, saturated distortion

COMPONENTS AND TECHNICAL SPECIFICATIONS

• Hybrid digital LFO with analogue distortion and filter stages
• Relay based true bypass for signal integrity
• Soft touch momentary footswitches for quiet switching
• Dedicated tap tempo footswitch for LFO speed control
• Eight position rotary LFO waveform selector
• Neutrik jack sockets for durability and secure connection

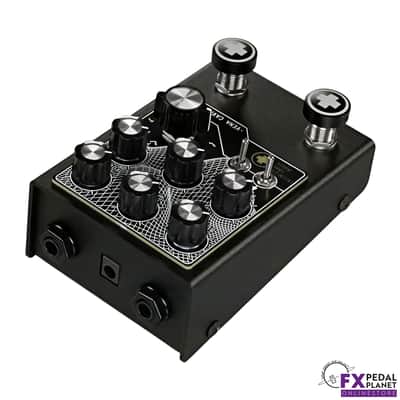

• Side mounted input and output jacks
• Textured black powder coated metal enclosure
• Built in London, England
• Manufacturer’s lifetime warranty
• Powered by standard 9V centre negative supply (not included)
• Battery operation not supported
• Current draw measured with Truetone 1Spot mA Meter:
• Bypass: Approximately 32 mA
• Engaged (maximum): Approximately 76 mA

Current draw may vary slightly depending on control settings, circuit behaviour, and active features such as gain stages, modulation, filtering, or reverb tails. For best performance, use a high quality isolated power supply that matches the pedal’s current requirements. Always refer to the manufacturer’s recommendations, as incorrect powering may cause damage.

ENCLOSURE DIMENSIONS

• Length: 126 mm / 4.9 in
• Width: 88 mm / 3.4 in
• Height: 45 mm to 27 mm / 1.8 in to 1.1 in

WEIGHT

• 388 g
• 0.86 lbs
