Eowave Domino analogue synth voice (VCO / VCA / envelope)

From me:

A complete analogue synth voice which is always a nice addition to a rack in compact HP with plenty of cv inputs. Excellent condition with minimal rack rash. Will be delivered with mounting bolts. Pick up in West Yorkshire or delivery (may or may not be original box).

From Eowave:

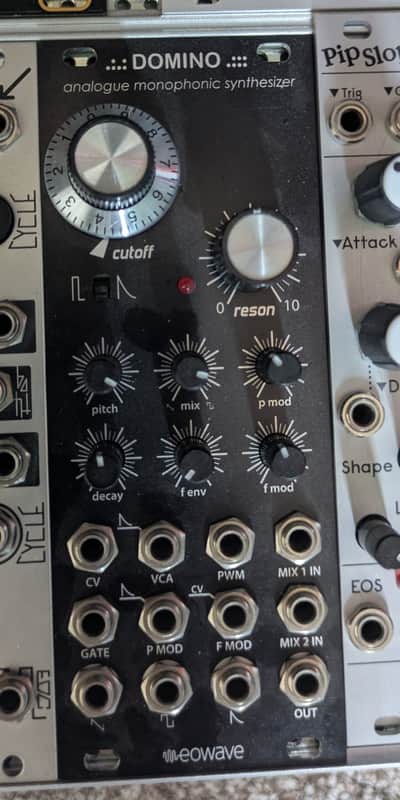

The Domino is an analog all-in-one synth voice with saw/square wave oscillator, ladder type low pass filter, envelope and VCA - it is designed for pure beefiness and grunt in the low end department. It excels at basslines, acid, kicks and low throbbing drones. The core of the module is a dual waveforms oscillator with saw and square. The pulse width of the square can be modulated with the PWM input

The pitch knob offers a range of 1 octave, designed to be used primarily in lower ranges.

The CV input control the oscillator pitch in v/oct but is also normalised to the f Mod input.

When the f mod potentiometer is fully open, the filter can be controlled in v/oct.Since the filter as self-oscillation capabilities, you can also use it as an oscillator.The decay envelope is controlling the filter cutoo and is normalized to the oscillator pitch input.The Domino provides two envelopes control options with its gate>VCA and envelope>VCA switch, al-lowing you to choose between using a gate signal or the decay envelope to shape the VCA response.

The Mix knob enables blending between the saw and square waves. Connect external sound sources to the Mix 1 and Mix 2 inputs to replace the saw wave and square wave, respectively.This module also provides the dry oscillator waveforms output as well as the envelope output.

10 HP

50 mA +12V
26 mA -12V
0 mA 5V
