Yamaha THR100HD two channel head and matching 2 x 12 cabinet

The Yamaha THR100HD is a compact, professional-grade 100-watt dual guitar amplifier head designed to deliver the flexibility and feel of a two-amp rig in a lightweight, portable format.

At its heart are two completely independent amplifier channels, each offering five Yamaha VCM (Virtual Circuitry Modelling) amp types: Solid, Clean, Crunch, Lead and Modern. The THR100HD combines these amp models with selectable power-amp characteristics, allowing the player to choose between EL34, 6L6GC, KT88, EL84 and 6V6 tube simulations and Class A or Class A/B operation.

The dual-amp architecture provides genuine A/B and A+B operation, making it possible to blend two different amplifier sounds, switch between them, or run both simultaneously for a much larger and more complex tone. The two signal paths have independent controls and can use separate inputs, making the THR100HD particularly well suited to stereo, wet/dry, or multi-amp setups.

Each amplifier also has its own gain, master, three-band EQ, presence, reverb and volume controls, together with an independently assignable booster. Additional processing includes reverb, noise gate and speaker simulation, with further configuration available through Yamaha's THR HD_H Utility software.

Despite its 100-watt output, the THR100HD weighs only 4.2 kg, making it considerably easier to transport than a conventional dual-head setup. It can drive one cabinet at up to 100 watts or two cabinets at 50 watts each, while selectable impedance settings support 4, 8 and 16-ohm speaker configurations.

The THR100HD also includes XLR line outputs, an effects loop, headphone output, USB connectivity and a dedicated footswitch connection, making it suitable for live performance, recording and studio applications.

Key Features

• True dual-amplifier architecture
• Two independent amplifier signal paths
• Five amp types: Solid, Clean, Crunch, Lead, Modern
• Selectable power-tube simulations:
• • EL34
  • 6L6GC
  • KT88
  • EL84
  • 6V6
• Selectable Class A / Class A/B power-amp operation
• Independent booster and reverb controls for each amp
• A/B/A+B amp switching
• Selectable single or dual inputs
• Built-in speaker simulation / impulse-response support
• Noise gate
• Effects loop
• XLR line outputs
• USB 2.0 computer connectivity

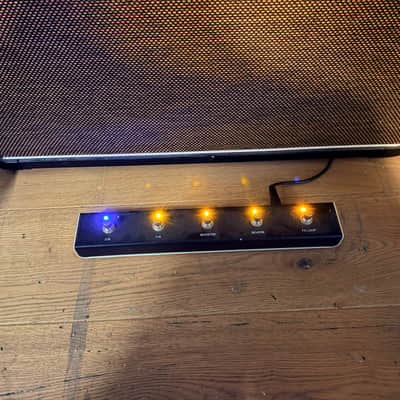

• Included 5-switch foot controller
• 100-watt output in a compact 4.2 kg chassis

Technical Specification Yamaha THR100HDProduct type Dual-channel guitar amplifier head, architecture True dual amplifier Amp models Solid, Clean, Crunch, Lead, Modern, Power-tube simulations EL34, 6L6GC, KT88, EL84, 6V6Power-amp topology Class A / Class A/B Maximum output 100 With Single-speaker operation 100 W at 8/16 Ω; 50 W at 4 ΩDual-speaker operation50 W + 50W Speaker outputs2 × 1/4"Inputs2 × standard 1/4" mono Effects loop Send / Return Line outputs2 × XLR Headphone output1 × stereo mini-jack USB USB 2.0 Type-B Footswitch connection5-pin DIN Built-in effects Booster, Reverb, Noise Gate, Speaker Simulation Booster types White, Green, Amber*Reverb types Spring, Plate, Room, Hall*Speaker simulation IR-based*Input level-10 dBu / 1 MΩPower supply AC 100–240 V, 50/60 Hz Power consumption 60W Dimensions (W × D × H)445 × 248 × 125 mm Weight4.2 kg Included accessories Power cord, 5-switch footswitch, 5-pin DIN cable, owner's manual

*Additional booster, reverb, noise-gate and speaker-simulation options are configurable through Yamaha's THR HD_H Utility.

Connections

Front

• Amp I input
• Amp II input
• Front-panel amplifier controls

Rear

• Speaker Out 1
• Speaker Out 2
• Effects Loop Send/Return
• XLR Line Out 1
• XLR Line Out 2
• Footswitch connection
• USB 2.0
• AC power input
• Impedance and output-power controls

Dimensions & Weight

445 × 248 × 125 mm (W × D × H)
4.2 kg

The compact chassis is one of the THR100HD's major advantages: Yamaha designed it to provide the functionality of a two-amplifier rig while remaining practical to transport to rehearsals, studios and live venues.

Ideal For

• Professional live guitar rigs
• Stereo and wet/dry setups
• Recording studios
• Players who want two amp sounds from one head
• Pedalboard-based rigs
• Guitarists requiring lightweight touring equipment
• Players wanting tube-style power-amp characteristics without carrying multiple traditional valve heads

The amp has only had home use and is in good condition

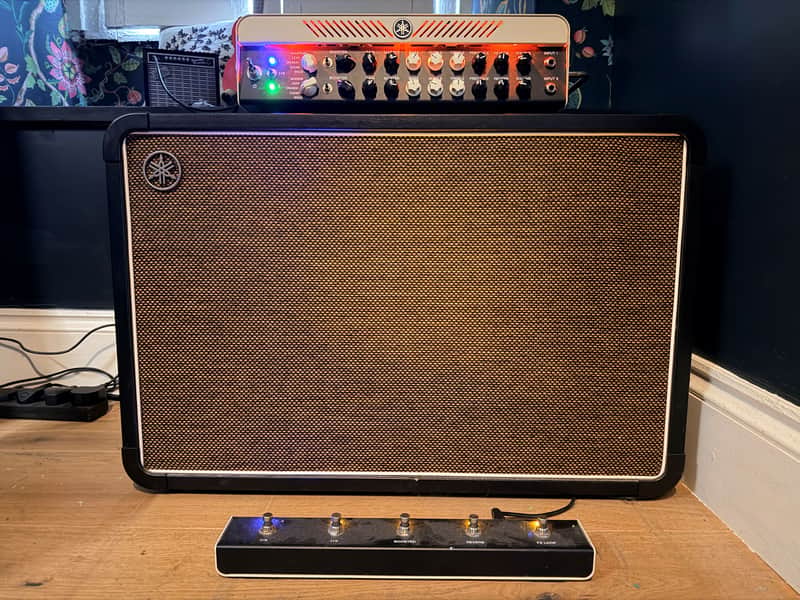

Included: Amp, Cabinet, power cable, speaker cable, footswitch and cable

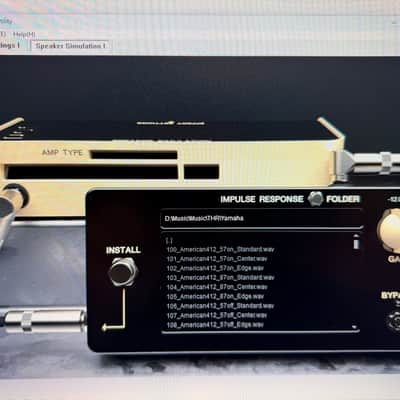

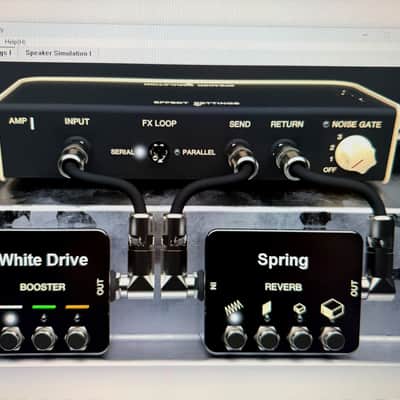

USB stick including the Yamaha software to connect the amp to your PC, this enables you to assign the boost pedals to the channels, type of reverb and also the FX return route.

Also included are a load of Ownhammer and Celestian IR's if the amp is going to be used without the cab and the XLR outputs going into a PC, PA or desk.

Pickup is preferable from Leicester, delivery is possible with Palletline but would need to discuss location to get a price
