About this listing
Check out Metron's

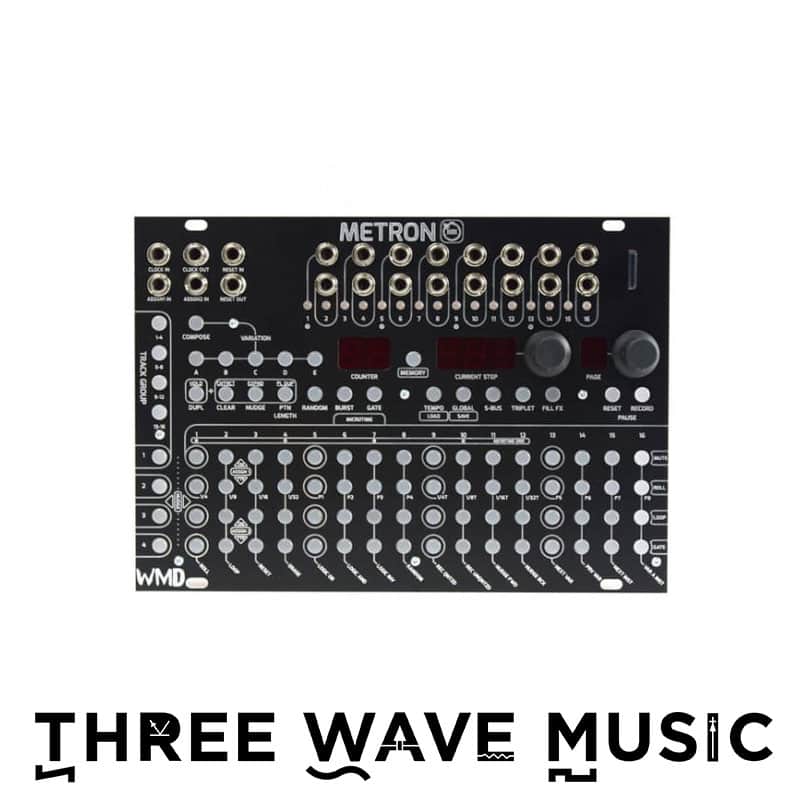

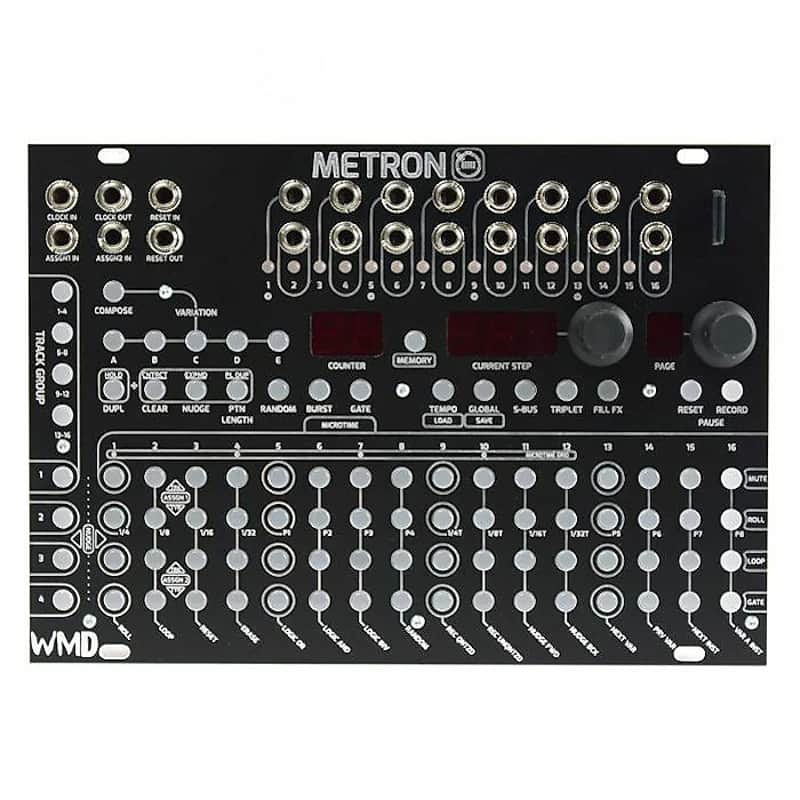

Metron is a 16 channel trigger and gate sequencer for your Eurorack modular system with loads of intuitive functionality, expansion capabilities, and the tools you need to create longer sequences with tons of variation at your fingertips.
Now EXPANDABLE with VOLTERA
Feature list :
16 Channels of trigger and gate signals
Super intuitive drum sequencer
View 4 channels at a time and easily switch views
Single track view lets you zoom in on a single track and see 64 steps at a time
Up to 256 step pattern length
Different pattern lengths per channel
Five instantly recallable, editable variations
View and edit variations that are not playing for easy cue and non stop performance play
Save patterns to SD memory for easy recall on power cycle
No-stop loading from memory
Easy view memory previews lets you see a pattern before loading from memory.
SD allows for easy update as well as easy back up / file transfer from unit to unit
FX / Fills for instant / momentary variation
2 assignable inputs for external CV control
Tap in patterns with quantized recording with the buttons or external source
Quick copy / paste / clear functions
Internal clock with Swing
dedicated reset output
MIDI Preset mode lets you send MIDI messages to other modules on the Doepfer CV bus. (for use with WMD SSM, Malekko Voltage Block, and more)
Random Pattern Generation
Probability per step and group probability functions
Burst per step for ratchet / roll sounds
Custom Fill Patterns for instant fills
Trigger Mutes
Step looping
Manual gates
So much more!
Dimensions:Width: 36HP (182.75mm)Height: Eurorack 3U (128.5mm Panel, 112mm PCB behind panel)Depth Including Cables: 31mmPower:16 pin Eurorack standard power cable90 Degree, Low Profile ConnectionReverse Polarity ProtectedDo not connect power to expansion headers.Typical Power Consumption: +12V: 180mA, -12V: 0mAMaximum Power Consumption: +12V: 240mA, -12V: 0mAStart Up Time: 2.5 Seconds to splash screen, 6 seconds totalInrush Current: 50mAInputs:CLOCK IN, RESET IN: 100kΩ Impedance, Logic High, Schmitt Trigger, 2.2V ThresholdASSGN1 IN, ASSGN2 IN: 124kΩ Impedance, 0V to 5V AnalogSyncBus normals to CLOCK IN, RESET IN jacksUSB Mini: for catastrophic bootloader reinstallation, not expected to be usedNorm/USB switch must be set to Norm for normal operationEXP (x2): Proprietary Expansion/Chain connector, 8 pins IDCMust have EXP TERM on either header if unusedMust have EXP TERM (x2) at both ends of chain if usedSelect Bus: 47kΩ Input Impedance, Buffered, Active Low. 3.3V and 5V compatible. Software Selectable.
Outputs:Channel Outputs 1-16: 470Ω Impedance, 0V or 10V Logic High.Channels are simultaneously updatedChannel LEDs reflect real-time output stateCLOCK OUT, RESET OUT: 470Ω Impedance, 0V or 10V Logic High.Select Bus: 50Ω Output Impedance, Active Low, 47kΩ Pull Up.3.3V and 5V compatible. Software Selectable inbound.Regulatory:RoHS, CE, & WEEE CompliantMade with Lead Free solder and processes.No animals were harmed in the making of Metron.
Check out Metron's
Metron is a 16 channel trigger and gate sequencer for your Eurorack modular system with loads of intuitive functionality, expansion capabilities, and the tools you need to create longer sequences with tons of variation at your fingertips.
Now EXPANDABLE with VOLTERA
Feature list :
16 Channels of trigger and gate signals
Super intuitive drum sequencer
View 4 channels at a time and easily switch views
Single track view lets you zoom in on a single track and see 64 steps at a time
Up to 256 step pattern length
Different pattern lengths per channel
Five instantly recallable, editable variations
View and edit variations that are not playing for easy cue and non stop performance play
Save patterns to SD memory for easy recall on power cycle
No-stop loading from memory
Easy view memory previews lets you see a pattern before loading from memory.
SD allows for easy update as well as easy back up / file transfer from unit to unit
FX / Fills for instant / momentary variation
2 assignable inputs for external CV control
Tap in patterns with quantized recording with the buttons or external source
Quick copy / paste / clear functions
Internal clock with Swing
dedicated reset output
MIDI Preset mode lets you send MIDI messages to other modules on the Doepfer CV bus. (for use with WMD SSM, Malekko Voltage Block, and more)
Random Pattern Generation
Probability per step and group probability functions
Burst per step for ratchet / roll sounds
Custom Fill Patterns for instant fills
Trigger Mutes
Step looping
Manual gates
So much more!
Dimensions:Width: 36HP (182.75mm)Height: Eurorack 3U (128.5mm Panel, 112mm PCB behind panel)Depth Including Cables: 31mmPower:16 pin Eurorack standard power cable90 Degree, Low Profile ConnectionReverse Polarity ProtectedDo not connect power to expansion headers.Typical Power Consumption: +12V: 180mA, -12V: 0mAMaximum Power Consumption: +12V: 240mA, -12V: 0mAStart Up Time: 2.5 Seconds to splash screen, 6 seconds totalInrush Current: 50mAInputs:CLOCK IN, RESET IN: 100kΩ Impedance, Logic High, Schmitt Trigger, 2.2V ThresholdASSGN1 IN, ASSGN2 IN: 124kΩ Impedance, 0V to 5V AnalogSyncBus normals to CLOCK IN, RESET IN jacksUSB Mini: for catastrophic bootloader reinstallation, not expected to be usedNorm/USB switch must be set to Norm for normal operationEXP (x2): Proprietary Expansion/Chain connector, 8 pins IDCMust have EXP TERM on either header if unusedMust have EXP TERM (x2) at both ends of chain if usedSelect Bus: 47kΩ Input Impedance, Buffered, Active Low. 3.3V and 5V compatible. Software Selectable.
Outputs:Channel Outputs 1-16: 470Ω Impedance, 0V or 10V Logic High.Channels are simultaneously updatedChannel LEDs reflect real-time output stateCLOCK OUT, RESET OUT: 470Ω Impedance, 0V or 10V Logic High.Select Bus: 50Ω Output Impedance, Active Low, 47kΩ Pull Up.3.3V and 5V compatible. Software Selectable inbound.Regulatory:RoHS, CE, & WEEE CompliantMade with Lead Free solder and processes.No animals were harmed in the making of Metron.
Price$749
Free Shipping
Free Shipping
from MIDLAND PARK, NJ
14-Day Return Policy
Enjoy peace of mind with your new gear
