About this listing

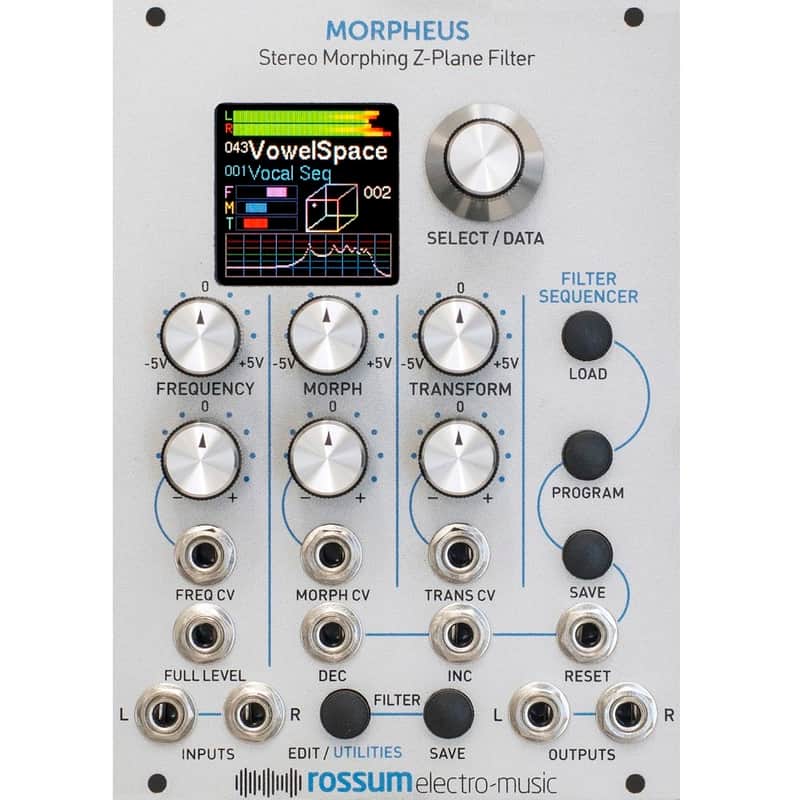

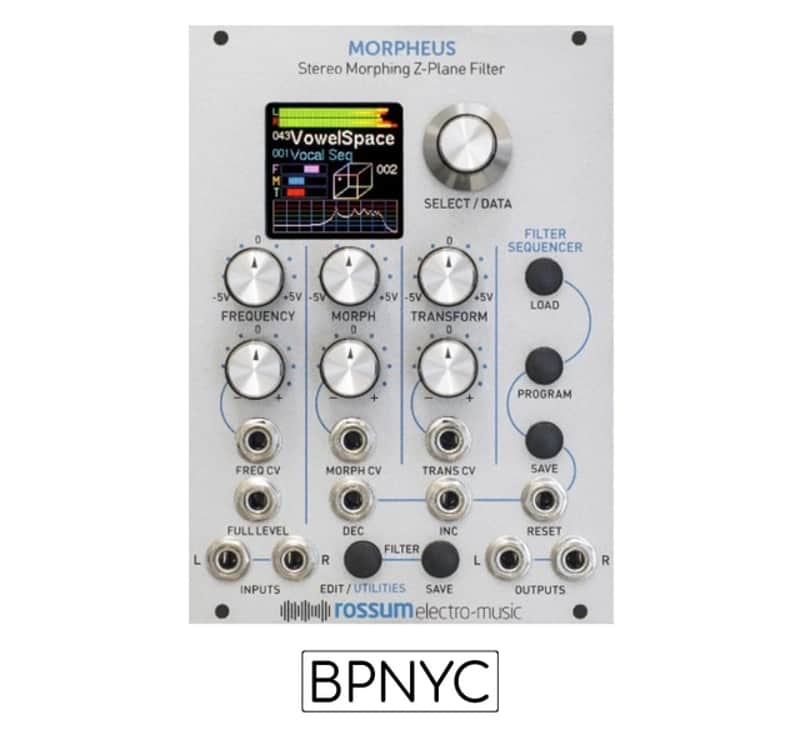

Stereo Morphing Z-Plane Filter With our MORPHEUS digital filter module, we’re finally able to unleash the full power of the 14-pole ZÂ-Plane Filters that Dave invented for the E-mu Morpheus synthesizer.The MORPHEUS Eurorack module includes over 280 filter configurations, what we call Cubes. Each Cube is composed of up to 8 complex filters that you can picture as being at the corners of a three dimensional cube (hence the name). Morpheus gives you the ability to smoothly interpolate between those 8 filters within the cube’s three dimensional space.Due to processor limitations back in the day, the original Morpheus was capable of real-time morphing in one dimension, but interpolation in the frequency and transform dimensions were set at note-on and remained static for the remainder of the note. But even with that limitation, Morpheus offered sonic capabilities that are unmatched to this day.With the MORPHEUS filter module, you now have simultaneous real-time CV control of all three dimensions, for dynamic timbral effects unlike anything you’ve ever heard before. In stereo.MORPHEUS features include:• Over 280 14-pole filter configurations• Real-time manual and CV control of Frequency, Morphing and Transformation• The ability to save hundreds of customized filter configurations• A sequencer for stepping through filter configurations under trigger or clock control• A large OLED display for programming and realtime display of morphingLike all Rossum Electro-Music digital modules, all parameters are available for adjustment with a single button press. No menu diving. Morpheus Specifications FILTER CUBES 289FILTERS1000FILTER SEQUENCES200SEQUENCE STEPS20,000 Dynamically AllocatedINPUTSAudio L/R2x 3.5mm mono socket100kΩ Input ImpedanceFull Level Frequency CV 1x 3.5mm mono socket100kΩ Input ImpedanceAttenuverted Frequency CV1x 3.5mm mono socket100kΩ Input ImpedanceAttenuverted Morph CV1x 3.5mm mono socket100kΩ Input ImpedanceAttenuverted Transform/Distortion CV1x 3.5mm mono socket100kΩ Input ImpedanceFilter Sequencer Dec1x 3.5mm mono socket100kΩ Input Impedance1.6V thresholdFilter Sequencer Inc1x 3.5mm mono socket100kΩ Input Impedance1.6V thresholdFilter Sequencer Reset1x 3.5mm mono socket100kΩ Input Impedance1.6V thresholdOUTPUTSAudio L/R2x 3.5mm mono socket1kΩ ImpedancePOWER REQUIREMENTS +/-12V via 16-pin, Doepfer-style connectorCURRENT DRAW135mA +12V, 25mA -12V (maximum)DIMENSIONS18HP (W); Panel to power connector (with connector plugged in) 25mm (D)SUPPLIED ACCESSORIES1x 16-pin, Doepfer-style cable4x M3 screws4x M2.5 screws4x Nylon washers1x Quickstart Guide
Price$599
Free Shipping
Free Shipping
from San Diego, CA
Only 1 preorder left
Grab it before it's gone
