About this listing

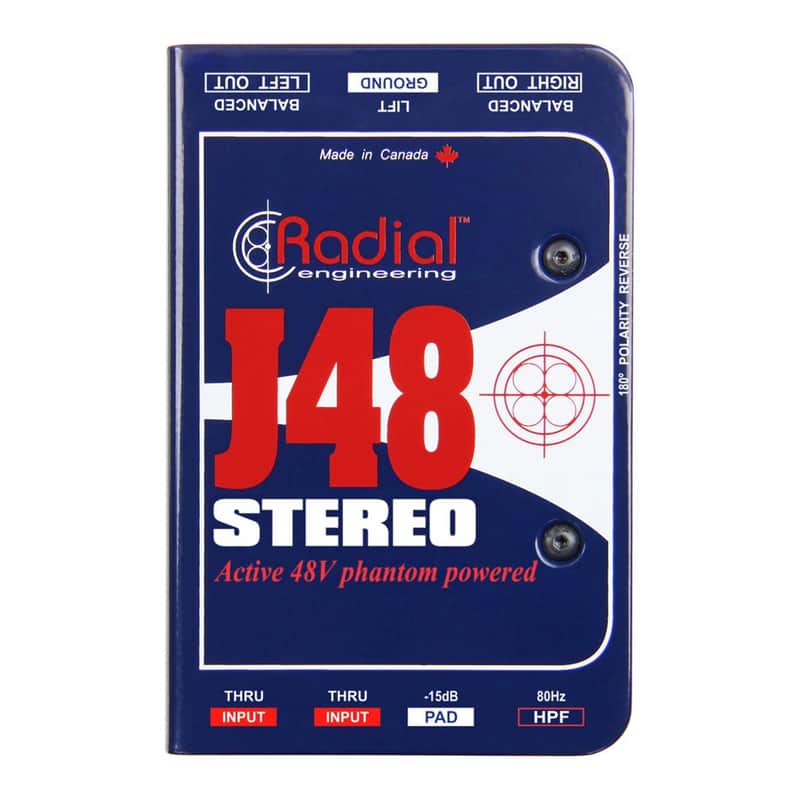

Phantom Powered Stereo Active Direct Box
The J48 stereo is a high performance 2-channel active direct box for live concert touring and professional recording studio applications, with the ability to handle extreme transients without distortion while delivering the natural sound of your instrument.
Higher voltage, higher headroom
Most battery-powered instruments and stereo keyboards will produce as much as 7 Volts when played at maximum volume, which can easily overload typical active direct boxes which have are only able to handle about 3 Volts. The J48 Stereo uses a unique switching power supply that raises the internal rail voltage so it can handle up to an incredible 9 Volts, resulting in improved signal handling and greater headroom. This additional headroom significantly reduces distortion of all types, allowing the natural tone and character of the instrument to shine through. The J48 maintains stereo separation between the left and right channels, allowing it to be used on two separate instruments or with stereo sources such as keyboards.
Features
Exceptional headroom & dynamic range
Retains the natural sound of the instrument
Use with stereo sources or multiple instruments
Powered by 48V phantom, no batteries required
Specifications
Audio circuit type: Proprietary analog circuit with low-noise op-amp
Number of channels: 2
Frequency response: 20Hz ~ 20kHz
Dynamic range: 109dB
Total harmonic distortion: 0.002% @ -5dBu
Intermodulation Distortion: 0.003% @ -3dBu
Phase Deviation: +10º at 20Hz | 0º at 1kHz | -1º at 20kHz
Input Impedance: 220kΩ - ¼" input
Output Impedance: 600Ω - XLR output
Equivalent Input Noise: -103dBu
Noise: -99dB below 0dBu
Maximum Input: +10dBu
Features
Input pad, 180° polarity reverse, Ground lift, HPF
Input Connectors: 2x 1/4" in and thru
Output Connectors: 2x XLR
General
Construction: 14 gauge steel chassis and outer shell
Size (L x W x D): 3.3" x 5.0" x 2" (84 x 127 x 48mm)
Weight: 1.55 lb (720 g)
Power: 48V phantom - proprietary digital switching
Conditions: For use in dry locations only between 5°C and 40°C
Original Price$399.99
$60 off
New Price$339.99
Free Shipping
Free Shipping
from National City, CA
Only 1 left
Grab it before it's gone
30-Day Return Policy
Enjoy peace of mind with your new gear
