About this listing

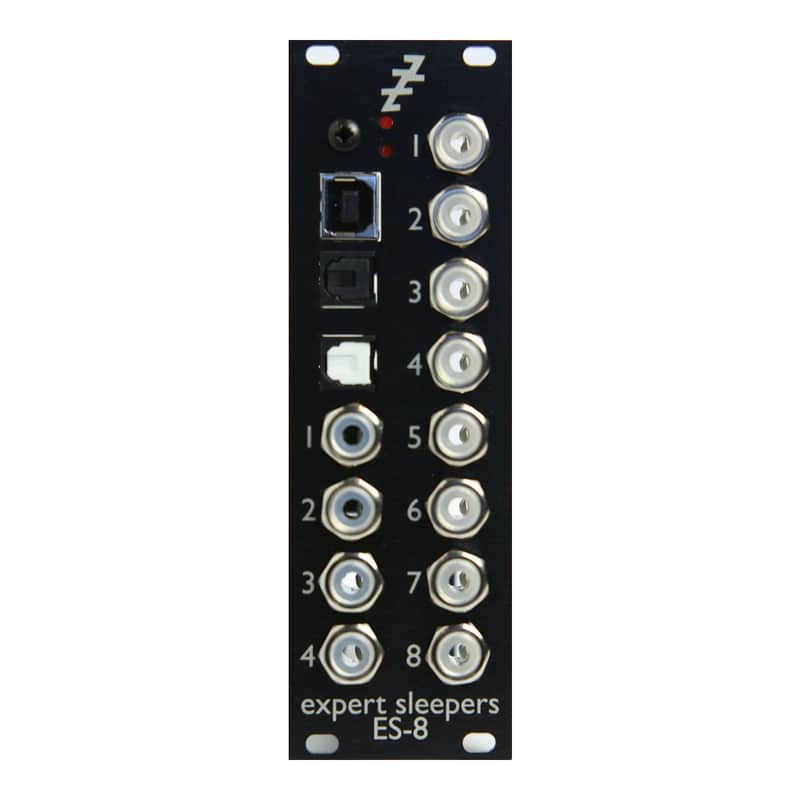

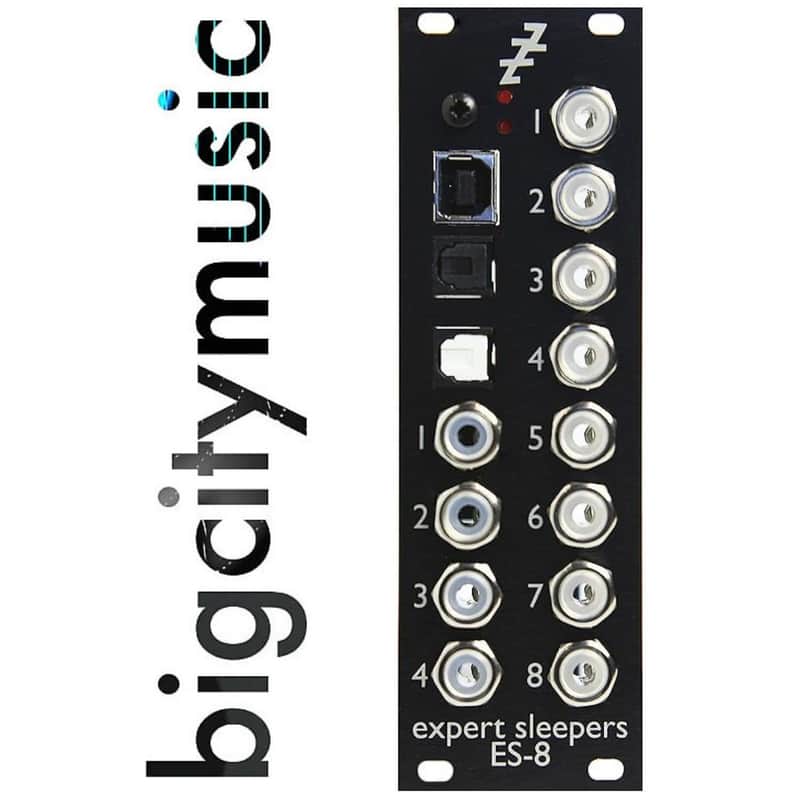

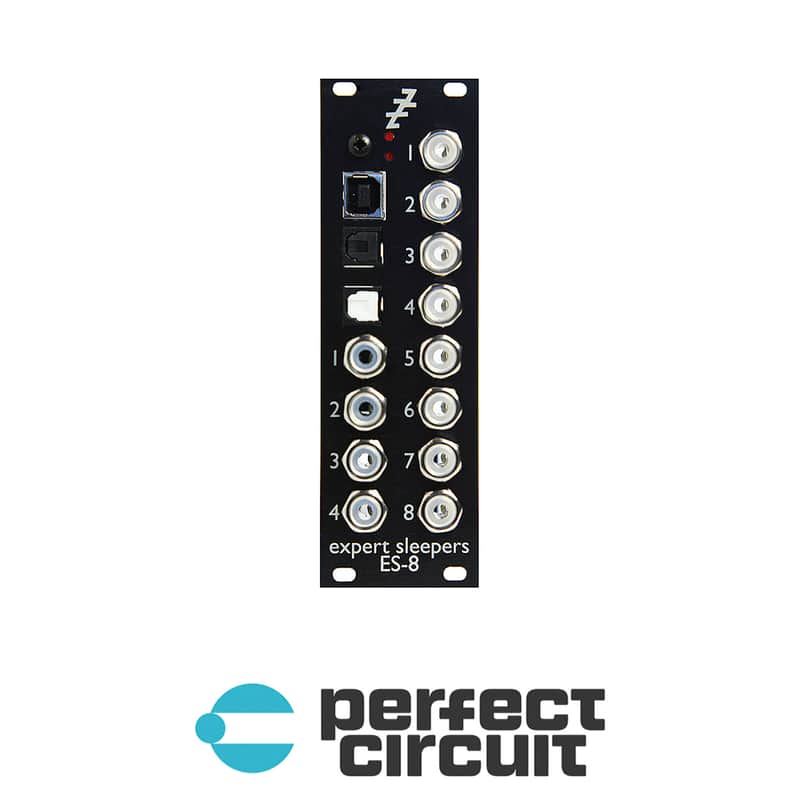

The ES-8 is a USB 2.0 class-compliant audio interface in a Eurorack module, with DC-coupled inputs and outputs that can be used for both CVs and audio. As such it is directly compatible with all popular computer-based CV generation software (e.g. Silent Way, Max/MSP, Reaktor, CV Toolkit, zMors, etc.) as well as audio and CV processing iOS apps.
The ES-8 also has ADAT inputs & outputs. This could be used for example to expand the output count via an Expert Sleepers ES-3 and/or ES-6, or to connect a traditional audio interface to add, say, mic preamps or 1/4" line outputs.
An expansion header allows connection of an Expert Sleepers ES-5, to which in turn you can connect our gate, CV and MIDI expanders.
The ES-8 has a high quality internal clock, and it can optionally sync to the clock from the input ADAT signal.
Features
USB socket: Type B
Driver suport: class-compliant USB 2.0 (no Windows support initially)
Channel count: 12 in, 16 out
Supported sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Output connections: 8x 3.5mm jacks, DC-coupled
Maximum output voltage: approximately ±10V DC
Analogue inputs: 4x 3.5mm jacks, DC-coupled
Input voltage range: approximately ±10V
Digital I/O: 1x ADAT input, 1x ADAT output
Expansion headers: 1 for ES-5, 1 for ES-6
