About this listing

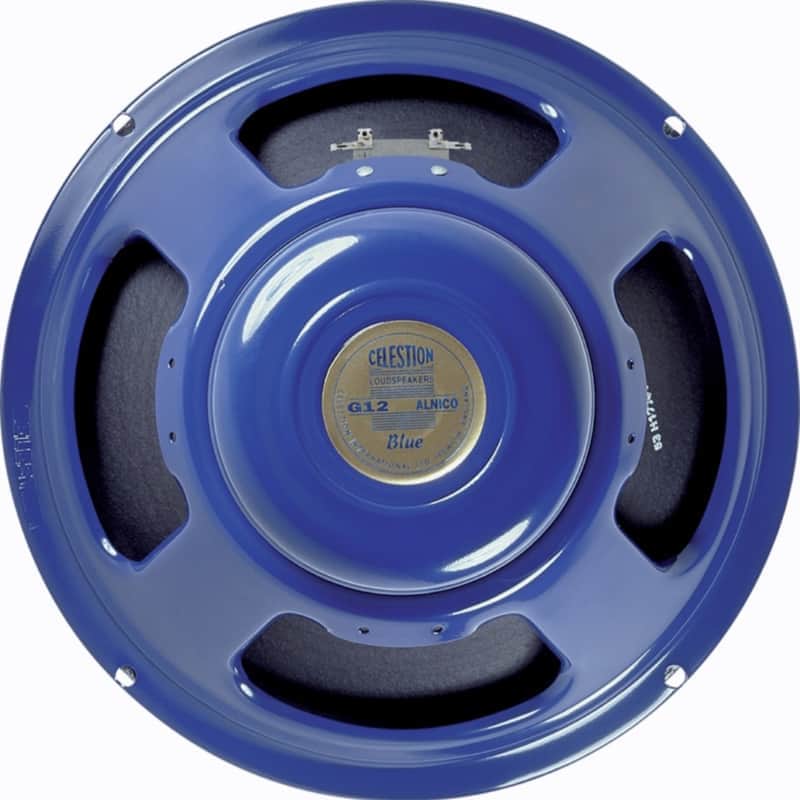

12-inch classic alnico guitar speakerThis classic guitar speaker actually started life as a radio speaker that was modified specifically for use in electric guitar amplifiers. In its original G12 guitar speaker incarnation it appeared in several colour variations, but it was the Blue version, known as T.530 and fitted as standard into Vox AC30 amps that secured its place in guitar tone history.The Blue found favour with notable guitarists like Brian May due to its glorious dampened attack warm lows mellow upper-mids and brilliant bell-like top-end. When coupled with a suitable amplifier it evokes rich definition and develops beautiful musical compression when pushed. According to tone enthusiasts worldwide the Blue is the benchmark for guitar speaker perfection.Features 12in Diameter16Ω Rated impedance100db SensitivitySpecsNominal diameter: 305mm / 12in Power rating: 15W Rated impedance: 16ΩSensitivity: 100dB Chassis type: Pressed steel Magnet type: Alnico Voice coil diameter: 1.75in / 44mm Voice coil material:Round copper Frequency range: 75-5000Hz Resonance frequency, Fs: 75Hz DC resistance, Re: 12.8ΩMounting InformationCut-out diameter: 283mm / 11.1inDiameter: 309mm / 12.2inMagnet structure diameter: 128mm / 5.0inMounting hole dimensions: 7.9mm / 0.31in ØMounting hole PCD: 297mm / 11.7inNumber of mounting holes: 4Chassis depth (inc gasket): 92mm / 3.63inMagnet depth: 73mm / 2.87inOverall depth: 165mm / 6.5inUnit weight: 4.2kg / 9.3lb
Price$320
Free Shipping
Free Shipping
from Astoria, NY
