Santa Fe Springs, CA, United States
About this listing

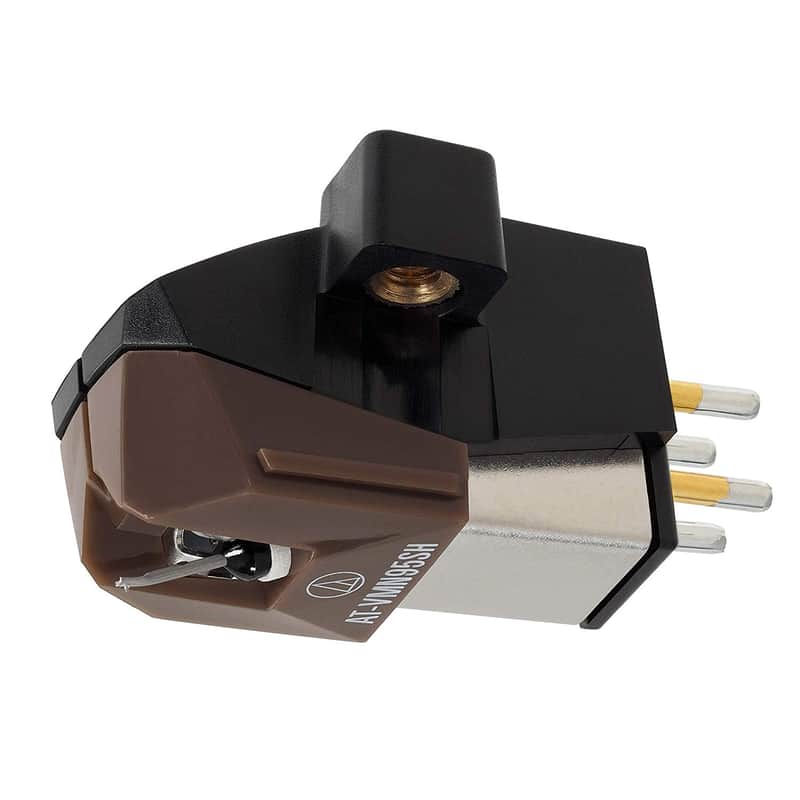

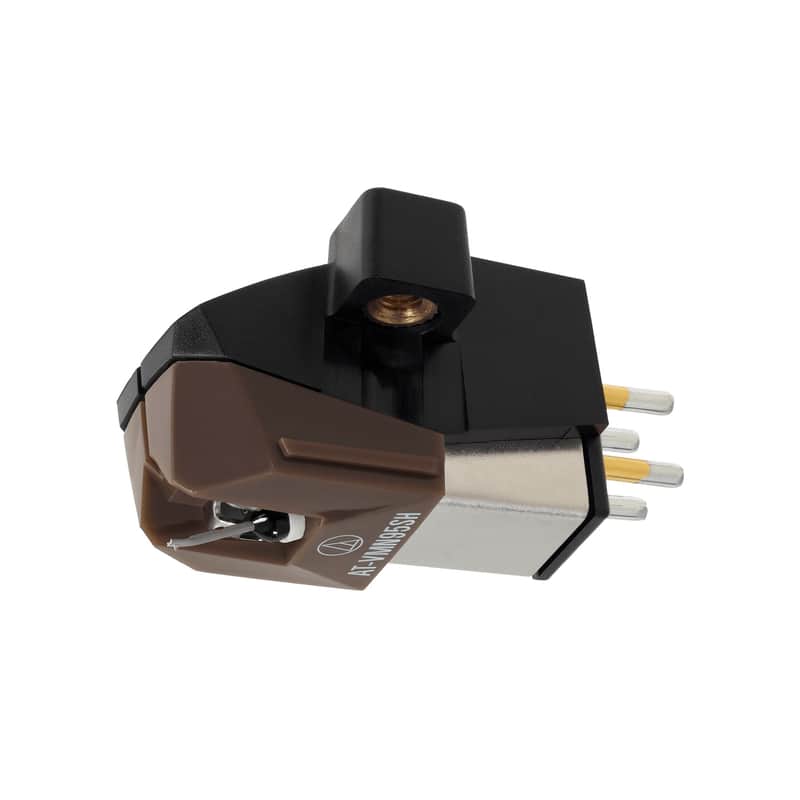

\n\nThis VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws - no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.\n\nKey Features\n\n VM95 Series dual magnet cartridge with 2.7 x 0.26 mil Shibata stylus\n Aluminum cantilever\n Durable low-resonance polymer housing\n Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws - no nuts required\n Compatible with any AT-VMN95 replacement stylus\n\nTechnical Specifications\n\nCartridge & Stylus\nFrequency Response\n20-25,000 Hz\nChannel Separation\n23 (dB at 1 kHz)\nVertical Tracking Angle\n23°\nVertical Tracking Force\n1.8-2.2 g (2.0 g standard)\nStylus Construction\nNude square shank\nRecommended Load Impedance\n47,000 ohms\nCoil Impedance\n3.3 k ohms (1 kHz)\nDC Resistance\n485 ohms\nCoil Inductance\n550 mH (1 kHz)\nOutput Voltage\n3.5 mV (1 kHz, 5 cm/sec.)\nOutput Channel Balance\n1.5 dB (1 kHz)\nStylus Shape\n2.7 x 0.26 mil Shibata\nCantilever\nAluminum pipe\nStatic Compliance\n20 x 10 - 6 cm / dyne\nDynamic Compliance\n10 x 10 - 6 cm / dyne (100 Hz)\nMounting\nHalf-inch\nCartridge Weight\n6.1g\nDimensions\n17.2 mm (0.68â€) H x 18.9 mm (0.74â€) W x 28.3 mm (1.20â€) D\nAccessories Included\nTwo 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver\nModel\nAT-VM95SH\nMounting Feature\nHalf-inch mount\nRecommended Load Capacitance\n100 to 200 pF\nReplacement Stylus\nAT-VMN95SH\nStylus Size\n2.7 x 0.26mil\nType\nVM Stereo Dual Magnet\nWeight\n6.1 g (0.22 oz)\nWire Used for Coil\nT.P. Copper
Price$219
Free Shipping
Free Shipping
from Santa Fe Springs, CA
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
