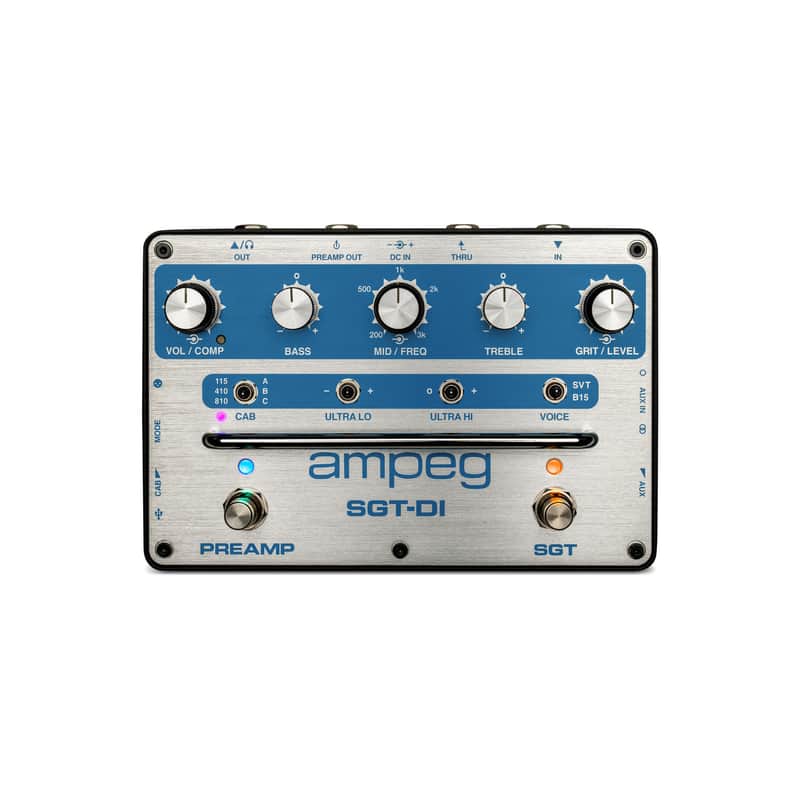

Honor Legacy and Modernize at the Same Time with the Ampeg SGT-DI Bass Preamp Pedal and DI - Blue Line Anniversary Edition
The SGT-DI™ preamp and DI gives modern bassists an entire rig in a single stompbox. It delivers an enhanced Super Grit Technology™ overdrive circuit featuring iconic Ampeg SVT® and B15 voices, versatile 3-band EQ now with sweepable Mid circuit, Ultra-Hi and 3-way Ultra-Lo switches, a variable compressor, and an Aux /Headphone section. Plus! Introducing the first IR Loader/Cab Simulator from Ampeg. Choose from three classic factory cabs or up to three cabs of your own by using the free Ampeg IR Loader application.
3-Band EQ with sweepable Mid circuit
SGT circuit with SVT and B15 voicing switch
Onboard IR Loader/Cab Simulator
Ultra-Hi and 3-way Ultra-Lo switches
Variable 10:1 compressor
What is an IR
A speaker cabinet impulse response or “IR” is essentially a digital audio snapshot of a cabinet that captures the acoustic characteristics of that specific cab, along with the signal chain used to record it—microphone(s), preamp(s), cable, etc.—and the room in which it was recorded. IRs allow you to “virtually” switch between different cab sounds in the same way you would swap physical cabs.
SGT-DI is the first physical Ampeg product featuring IRs and IR loading
SGT-DI comes with six preloaded Ampeg factory cab IRs, three of which may be replaced with your own: Cab Mode includes Ampeg Heritage B-15, Heritage SVT-410HLF, and SVT-810 Squareback IRs. User Mode includes overwritable Ampeg SVT-112AV, SVT-210AV, and SVT-212AV IRs. The Cab Level control enables you to adjust and save the amount of cab IR sound in your signal. The IR Off Mode bypasses the IR circuitry altogether.
SPECIFICATIONS
Total Impedance: 1 Mohm (nominal)
Headphone Output: Output Impedance: 22 Ohms
25mW max. power out at 32 Ohm load impedance
Signal-to-Noise Ratio: 106dB (20Hz-20 kHz, A-weighted, Preamp and SGT disabled)
102dB (A-weighted, Preamp engaged with tone controls flat, boosts off)
Maximum Gain
Preamp Out: 57dB (at 1kHz, EQ flat, Preamp and SGT enabled, maximum Grit,
maximum Volume)
17dB Clean Gain (Preamp only, tone controls flat, boosts off)
Headphone Out: 57dB (at 1kHz, EQ flat, Preamp and SGT enabled, maximum Grit,
maximum Volume, Cab Mode disabled)
XLR Out: 37dB (at 1kHz, EQ flat, Preamp and SGT enabled, maximum Grit,
maximum Volume, Cab Mode disabled)
External Power Requirements: 9V DC @ 500mA, center-negative (use the included adapter)
Tone Controls
Bass: +15/-12dB at 40Hz
Mid: +/-14dB at selected frequency
Treble: +/-20dB at 8kHz
Ultra Lo Boost: -10dB at 500Hz, +2dB at 40Hz
Ultra Lo Cut: -17dB at 40Hz
Ultra Hi: Enhances the amount of high frequency output by 9dB at 8kHz
Size (H x W x D):
2.5 x 7.4 x 4.9 inches / 65 x 189 x 126 mm (with side panel knobs
recessed, no rubber feet applied)
2.5 x 7.9 x 4.9 inches / 65 x 201 x 126 mm (with side panel knobs
extended, no rubber feet applied)
Weight: 1.9 lbs / 0.85 kg
