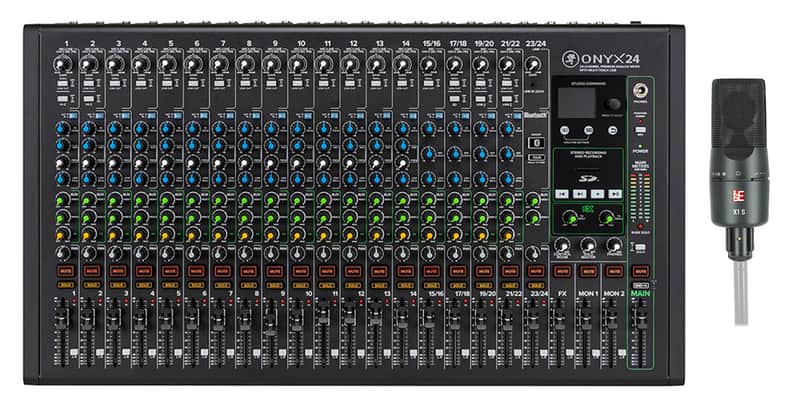

Mackie ONYX24 24-Channel Analog Mixer w/ Multi-Track USB+SE Electronics Mic

Package Includes:

• (1) Mackie ONYX24 24-Channel Analog Mixer w/ Multi-Track USB/3-Band EQ+Bluetooth
• (1) Se Electronics X1 S Large Studio Recording Cardioid Condenser Microphon+Clip

How To Set Up Your Podcast:

Description:

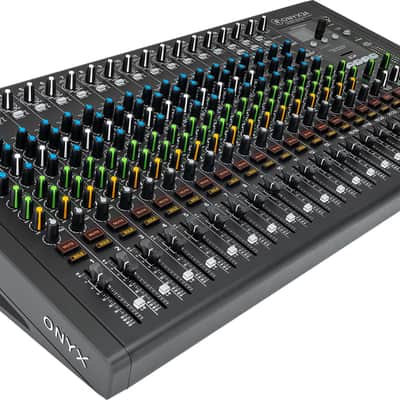

The Mackie Onyx24 24-Channel Premium Analog Mixer with USB is the ultimate compact solution for live audio, home recording, and content creation. 24-Bit / 96kHz multitrack recording, award-winning, high-gain Onyx mic preamps, and an end-to-end ultra-low-noise design deliver the sound quality professionals demand. Packed with features including powerful DSP effects, British-style Perkins EQ, full-color display, and integrated recording and playback from an SD card. The Onyx24 Premium Analog Mixer gives you the power you need to capture your best performance with pristine fidelity at home or on the go.

Features:

Classic Sound, Modern Performance

• Legendary Onyx mic preamps and Perkins "British Style" EQ alongside premium analog circuitry deliver professional studio-quality sound and ultra-low noise.

A Complete Multi-Track Recording Solution

• Record and playback to and from your Mac/PC via USB or recording your main mix directly to an SD card

Unmatched Control and Flexibility

• Onyx24 is equipped with Studio Command, a full-color display and single knob interface for managing built-in FX and SD card file browsing/recording/playback

Built-Like-A-Tank

• Mackie's Legendary "Built Like A Tank" Design means your Onyx mixer will be cranking out the mix for years to come

Classic Sound, Modern Performance

• 18 award-winning Onyx mic preamps provide up to 60dB of gain
• Premium analog circuitry delivers studio-quality sound and keeps noise to a minimum
• Analog/USB channel strips with flexible routing
• Legendary Perkins “British style” EQ with sweepable midrange offers classic sounds of the 60's and 70's
• Robust digital effect engine, including user-customizable reverbs, delays, and more, with a dedicated FX EQ

Record and Playback via SD Card or USB

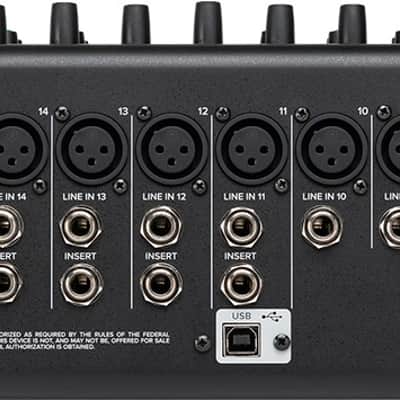

• High-resolution 24x4 96kHz / 24-bit multi-track recording to Mac/PC via USB
• Direct to SD card stereo recording and playback
• Channel-assignable 4-track USB return (2 stereo pairs)
• Send your Main Mix to USB via a dedicated switch

Studio Command - Powerful and Intuitive Full-Color Display and Single-Knob Interface

• Easy navigation of FX parameters, onboard SD recording and playback
• Visually browse files on the SD card via the built-in display
• Dedicated physical buttons for Previous, Next, Record, and Play/Pause
• Store up to 6 user FX presets for easy recall

Professional High-Resolution FX Processor

• Utilize built-in effects for live performances, streams, and beyond
• Reverb, delay, chorus, and more
• Dial in the perfect sound with adjustable parameters and dedicated EQ
• Built-in effects presets provide that finishing touch out of the box

Bluetooth® Streaming - Go Wireless

• Pair your Bluetooth enabled device and stream audio directly to a channel on the mixer
• Streamed audio can be routed to Aux Sends and the Main Mix

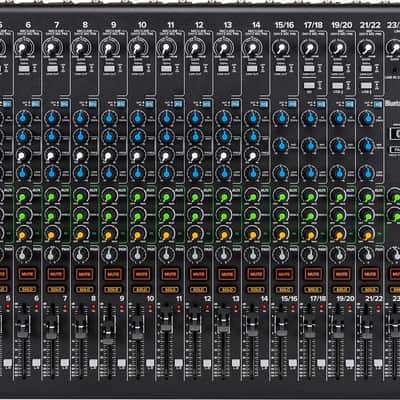

Powerful Mixing Toolkit

• 3-band Perkins EQ with On/Off hard bypass switch on all channels
• Hi-Z switches allows direct connection of guitars, basses, and other instruments
• 100Hz low-cut filter and 48V phantom power on all mic channels
• Stereo 1/8" input and Bluetooth streaming
• Stereo line inputs
• Aux/Monitor outputs with dedicated per-channel send control
• Dedicated Control Room outputs
• Headphone output with dedicated level control
• L/R Assign switch per channel
• 12-segment stereo meters
• Overload indicators on all channels
• PFL/AFL channel solo
• Footswitch input for FX Mute (footswitch not included)

Hit the Ground Running with Powerful Software and Plugins

• Recording software and plugin bundle
• Waveform™ OEM recording software and plugin bundle
• DAW Essentials™ Bundle for Waveform™ OEM, with 16 powerful plugins like Equaliser, Compressor, Reverber8, and Limiter

Rugged Chassis and Professional Design

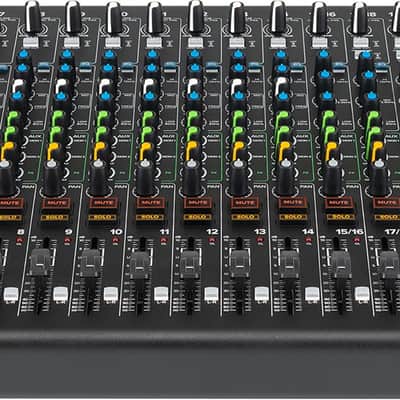

• Backlit Mute and Solo buttons provide a positive tactile feel and clear visual feedback
• Sealed rotary encoder resists dust and grime
• Built-Like-A-Tank™ heavy steel chassis
• High-visibility, high-contrast controls
• Rugged, QuickGrip™ side cheeks offer convenient mobility and protection
• Weight: 21.5 lb / 9.7 kg
• Dimensions: 25.2 × 14 × 5.4in / 639 × 356 × 136 mm

What's in the box:

• X1 S Microphone
• Microphone Stand Clip
• Thread Adapter

Description:

The new gold standard in affordable condensers
When sE introduced the X1 in 2010, it redefined the potential of an affordable hand-crafted condenser microphone. Featuring the highest dynamic range and SPL handling capabilities in its class, along with dramatically increased flexibility, the X1 S has been improved in every way - yet is even more affordable than the original.

Recommended Use
Vocals, drum kit, OH, room, acoustic guitar, electric guitar cab, orchestral + strings, piano, woodwinds, brass.

Features:

• Custom-designed hand-crafted true condenser capsule individually tuned in our own factory
• A refined version of sE's best-selling X1
• Improved sensitivity, dramatically increased SPL handling (up to 160dB!), and a huge reduction in self-noise.
• Hand-made metal housing and gold-sputtered diaphragms
• 80 /160 Hz bass-cut filters and -10 / -20 dB pads

Specifications:

Components:

• Capsule: Hand-crafted 1" True Condenser

Power:

• Electrical Impedance: 125 Ohms
• Recommended Load Impedance: >1k Ohms
• Connectivity: 3-pin male XLR connector
• Powering: 48V Phantom Power (P48 according to IEC 61938)

Sound:

• Polar Patterns: Cardioid
• Frequency Range: 20 Hz - 20 kHz
• Sensitivity: 30 mV / Pa (-31 dBV)
• Max SPL: 140 / 150 / 160 dB (0 / 10 / 20 dB pad) (0.5% THD @ 1kHz)
• Equivalent Noise Level: 9 dB
• Dynamic Range: 131 / 141 / 151 dB (0 / 10 / 20 dB attenuation pad)
• Signal to noise ratio: 85 dB
• Low-cut filter: 80 / 160 Hz, 6 dB / Oct, switchable
• Attenuation Pad: 10 / 20 dB, switchable
• Current Consumption: 6.0 mA

Dimensions:

• Mic Diameter: 58 mm (2.28 in.)
• Mic Length: 169 mm (6.65 in.)
• Mic Weight: 445 g (15.70 oz.)
