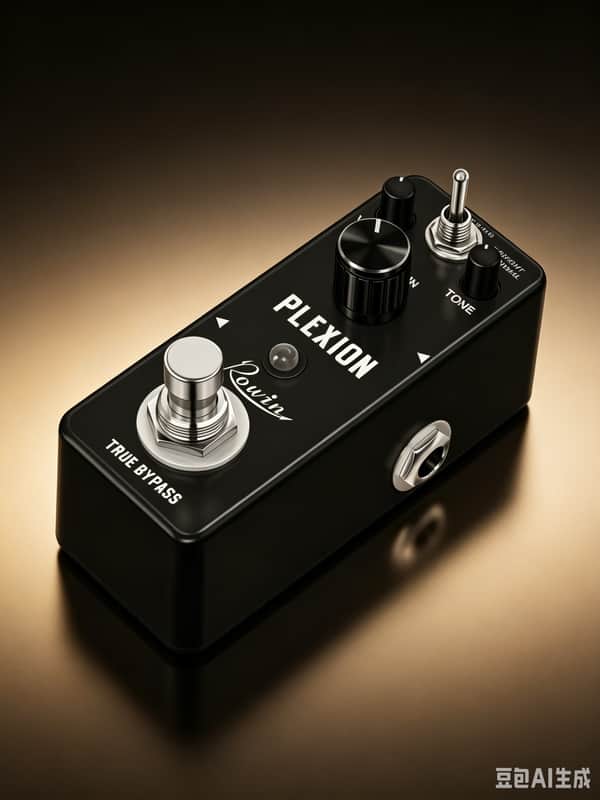

Rowin LEF-324 Plexion Plexi Distortion Pedal Dual Bright/Normal Mode True Bypass Mini Metal Guitar Effect--Shipped from Irvine Warehouse in California by USPS

Product Overview

Rowin LEF-324 Plexion is a compact full analog distortion pedal precisely modeled after legendary vintage Marshall Plexi tube amplifiers, delivering iconic thick British rock crunch and saturated high-gain distortion beloved by classic rock, hard rock, blues and metal guitarists, compatible with both electric guitar and bass.

Equipped with a two-position Bright/Normal mode toggle switch and three independent tone knobs, it provides two completely distinct British amp voicings to cover all rock playing styles:

Normal Mode: Warm full midrange Plexi tone, rich thick low-mid punch, balanced vintage crunch for classic rock rhythm chords;

Bright Mode: Boosted crisp high-frequency bite, sharper cutting treble, tighter saturated high-gain distortion for hard rock & metal lead solos.

Three dedicated control knobs enable full-range tone sculpting: GAIN adjusts distortion saturation intensity from mild crunchy grit to heavy saturated metal drive; TONE balances bright piercing treble and warm rounded midrange body; VOLUME matches output level to eliminate sudden volume jumps when switching bypass and effect.

Matte black die-cast zinc alloy ultra-mini chassis occupies minimal space on crowded pedalboards, ideal for bedroom practice, studio British rock tone recording and long live stage touring gigs. It adopts industry-standard 3PDT hardwire true bypass circuit, fully preserving the raw uncolored clean tone of your instrument with zero signal loss, bass roll-off or artificial tone coloration when the distortion is turned off.

This listing supplies 95% like-new units with flawless full functionality, only faint minor cosmetic scratches on housing, fully audio tested before shipment.

Core Key Features

Pure Analog Marshall Plexi Tube Amp Simulation Circuit

Authentic vintage British plexi distortion character, thick saturated midrange crunch, natural harmonic richness, highly responsive to picking dynamics and guitar volume knob rolling, no harsh digital artifacts.

Dual Selectable Timbre Modes: Bright / Normal

Normal: Warm full balanced plexi crunch, thick low-mid punch for classic rock rhythm

Bright: Enhanced crisp treble bite, tighter saturated high-gain distortion for metal & hard rock leads

Triple Independent Tone Shaping Knobs

GAIN: Control distortion intensity, from mild vintage rock crunch to heavy saturated metal distortion

TONE: Adjust frequency balance, bright sharp treble bite or soft warm rounded midrange body

VOLUME: Independent master output level to align bypass and effect signal volume

Full 3PDT Hardwire True Bypass

Unbroken direct instrument signal path, zero background hum, no low-frequency attenuation when pedal disengaged

Clear White LED Working Indicator

Bright light clearly visible under dim stage lighting to confirm distortion active state

Shockproof Matte Black Die-Cast Zinc Alloy Housing

Palm-sized ultra-small footprint, scratch-resistant smooth black metal shell, anti-slip rubber bottom pad for stable pedalboard placement

Ultra Low Stable Power Consumption

Only 8mA working current, fully compatible with standard 9V center-negative daisy-chain power adapters

Full Technical Specifications

Model: LEF-324 Plexion Marshall Plexi Analog Distortion

Brand: Rowin

Effect Type: Mini Vintage British Plexi Style Distortion Pedal

Working Modes: Bright / Normal two-position slide toggle switch

Controls: GAIN Knob, TONE Knob, VOLUME Knob

Input Jack: 1/4” mono audio jack, Input Impedance: 1M Ohms

Output Jack: 1/4” mono audio jack, Output Impedance: 1K Ohms

Working Current: 8mA

Power Supply: DC 9V barrel adapter (center pin negative, outer barrel positive, adapter NOT included; battery power unsupported)

Material: Die-Cast Zinc Alloy Metal Chassis

Dimensions: 95mm(D) × 38mm(W) × 40mm(H)

Net Weight: 180g, Gross Weight (with gift box): 245g

Color: Matte Black

OEM/ODM Support: Available

Operation Instructions

INPUT Jack: Connect your guitar/bass or output of another effect pedal with 6.3mm audio cable

OUTPUT Jack: Connect to your guitar amplifier or INPUT jack of another effect pedal via 6.3mm audio cable

Mode Toggle Switch

NORMAL: Warm full balanced vintage Plexi crunch, thick low-mid punch for classic rock rhythm chords

BRIGHT: Boosted crisp treble bite, tight saturated high-gain distortion for hard rock & metal lead solos

GAIN Knob: Rotate clockwise to increase distortion saturation, counter-clockwise for lighter mild rock crunch

TONE Knob: Clockwise = brighter sharp treble bite; Counter-clockwise = softer warm rounded midrange body

VOLUME Knob: Adjust overall output volume to match the clean bypass signal level

True Bypass Footswitch: Step down the footswitch to toggle distortion ON / bypass OFF state

LED Indicator: Lights white when the Plexion distortion effect is activated

Power Jack: Plug in DC 9V center-negative power adapter to supply power for the pedal

1. Manufacturer & Business Entity Info

Brand Name: Rowin

Manufacturer Factory: Rowin Audio Equipment Factory, Dongguan City, Guangdong Province, China

US Selling Entity: Sole Proprietor Local Warehouse Operator (Irvine, California)

Main Products: 300 series mini plexi distortion/blues overdrive/fuzz/EQ/booster/modulation/noise gate pedals, ABY signal switchers, DI Boxes, LEF series multi-effect stompboxes, LFS looper & control footswitches

Service Support: Retail sales, small bulk wholesale, OEM private custom logo customization for global music instrument retailers worldwide

2. Global Safety Compliance Certifications

FCC VOC (North American US Market): Compliant with US electromagnetic interference standards for audio devices

CE Certification (EU & UK): EMC Electromagnetic Compatibility + LVD Low Voltage Safety Certification

RoHS Compliance: Restricts hazardous heavy metals inside circuit boards & metal housings

3. Product Safety Precautions

Power Safety

Only use regulated DC 9V center-negative power adapter with minimum 500mA output. Mismatched voltage or reversed polarity will permanently damage internal analog circuit boards. Unplug power supply when unused or during thunderstorms to avoid surge voltage damage. This pedal DOES NOT support battery power supply.

Mechanical Operation Safety

Do not apply heavy force to footswitch, three tone knobs, mode toggle and 1/4” audio jacks to prevent internal hardware failure. Unauthorized disassembly of the zinc alloy housing will void the 6-month limited warranty for pre-owned 95% like-new inventory.

Cleaning & Storage Rules

Clean metal housing only with dry soft cloth; alcohol, chemical solvents, detergent or abrasive cleaners are strictly forbidden. Store pedals in cool dry indoor space, avoid long-term direct sunlight, high humidity, violent vibration and heavy physical impact.

Usage Environment Warning

Do not operate this distortion pedal near water, rainy outdoor environments or high-power magnetic equipment to prevent audio signal distortion and short circuit risk.
