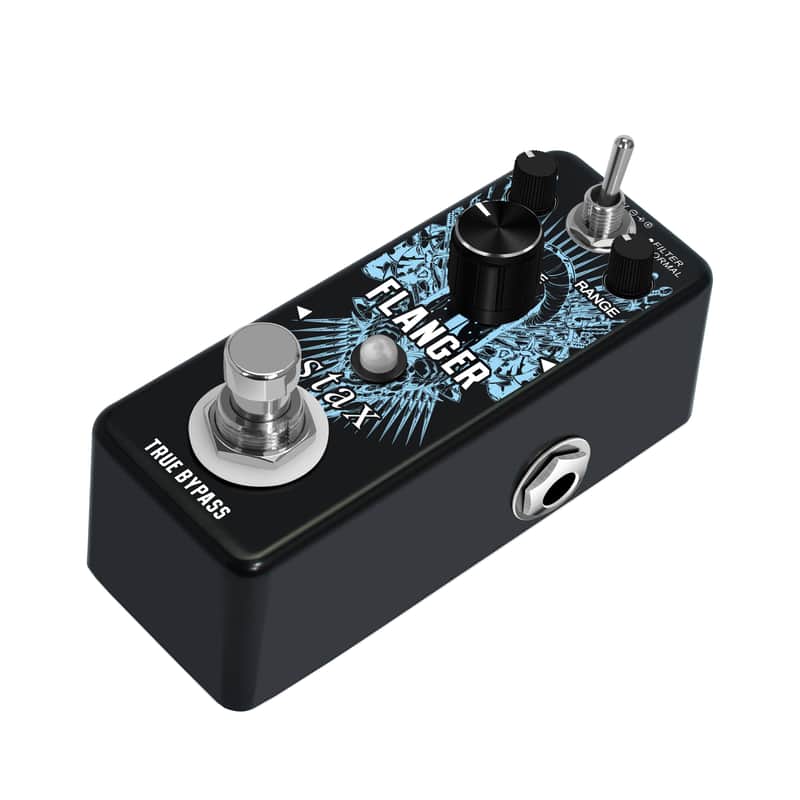

STAX LEF-312 Pure Analog Flanger Guitar Effect Pedal With Static Filtering True Bypass Full Metal Case--Shipped from Irvine Warehouse in California by USPS

Product Overview

STAX LEF-312 is a compact full analog vintage flanger modulation pedal, delivering classic swirling comb-filter flanging tones popular in 70s psychedelic, indie, blues and clean rock music, compatible with both electric guitar and bass. Equipped with a 2-position Normal/Filter toggle switch, it provides two distinct flanger textures: mild subtle sweeping flang and deep warped vortex-style heavy flanging. Three full independent knobs allow full-range tone shaping to dial from gentle subtle spatial shimmer to wild trippy rotating vortex modulation. Rugged die-cast zinc alloy mini chassis drastically saves pedalboard space for bedroom practice, studio tracking and long live touring gigs. Adopts full hardwire true bypass circuit, completely retains raw clean instrument tone with zero volume drop, signal loss or unwanted tone coloration when bypassed.Core Key Features

1. 2-Way Mode Toggle Switch (Two Flanger Voices)

• Normal: Gentle mild sweeping flanging, subtle soft spatial movement for clean rhythm guitar and ambient tracks
• Filter: Deep enhanced comb-filter warp, thick swirling vortex flang with dramatic depth for psychedelic leads

1. Three Independent Tone Shaping Knobs

• COLOR: Adjust tonal character, shift from dark warm muted flang to bright sharp airy high-frequency sweep
• RATE: Control modulation speed, ultra-slow subtle pulse up to fast frantic swirling rotation
• RANGE: Adjust flanging depth width, narrow light ripple to wide full immersive vortex effect

1. Authentic Pure Analog Flanger CircuitNatural organic comb-filter modulation, no harsh digital thin artifacts, fully preserves low-end bass response for bass guitar
2. Full Hardwire True BypassUnbroken direct instrument signal path, zero hum, no signal attenuation when pedal disengaged
3. Clear Blue LED Status IndicatorBright light clearly visible under dim stage lighting to confirm active effect state
4. Shockproof Black Die-Cast Zinc Alloy HousingPalm-sized ultra-small footprint, scratch-resistant solid black metal shell, anti-slip rubber bottom pad for stable pedalboard placement
5. Stable Low Power ConsumptionOnly 13mA working current, fully compatible with standard 9V center-negative daisy-chain power supplies

Full Technical Specifications

• Model: LEF-312 Vintage Analog Flanger
• Brand:STAX
• Effect Type: Pure Analog Dual-Mode Flanger Modulation Pedal
• Mode Selection: Normal / Filter 2-position slide toggle
• Controls: COLOR / RATE / RANGE
• Input Jack: 1/4” mono, Input Impedance: 1M Ohms
• Output Jack: 1/4” mono, Output Impedance: 520 Ohms
• Working Current: 13mA
• Power Supply: DC 9V center-negative barrel plug (adapter NOT included)
• Material: Die-Cast Zinc Alloy Metal Chassis
• Dimensions: 95(D) × 45(W) × 48(H) mm
• Net Weight: 206g
• Package Total Weight: 240g
• Compliance Certifications: FCC VOC, CE EMC/LVD, RoHS Certified

Package Includes1 × Rowin LEF-312 Vintage Analog Flanger Pedal1 × English User Manual

1. Manufacturer & Business Entity InfoBrand Name:STAXManufacturer Factory: STAX Audio Equipment Factory, Dongguan City, Guangdong Province, ChinaUS Selling Entity: Sole Proprietor Local Warehouse Operator (Irvine, California)Main Products: 300 series mini analog modulation/overdrive/distortion/fuzz pedals, ABY signal switchers, DI Boxes, LEF series multi-effect stompboxes, LFS looper & control footswitchesService Support: Retail sales, small bulk wholesale, OEM private custom logo customization for global music instrument retailers worldwide2. Global Safety Compliance Certifications

• FCC VOC (North American US Market): Compliant with US electromagnetic interference standards for audio electronic devices
• CE Certification (EU & UK): EMC Electromagnetic Compatibility + LVD Low Voltage Safety Certification
• RoHS Compliance: Restricts hazardous heavy metals inside circuit boards & metal housings

3. Product Safety Precautions

1. Power Safety
2. Only use regulated DC 9V center-negative power adapter with minimum 500mA output. Mismatched voltage or reversed polarity will permanently damage internal analog circuit boards. Unplug power supply when unused or during thunderstorms to avoid surge voltage damage.
3. Mechanical Operation Safety
4. Do not apply heavy force to footswitch, three control knobs, mode toggle and 1/4” audio jacks to prevent internal hardware failure.
5. Unauthorized disassembly of the zinc alloy housing will void the 6-month limited warranty for pre-owned 95% like-new inventory.
6. Cleaning & Storage Rules
7. Clean metal housing only with dry soft cloth; alcohol, chemical solvents, detergent or abrasive cleaners are strictly forbidden.
8. Store pedals in cool dry indoor space, avoid long-term direct sunlight, humid air, violent vibration and heavy physical impact.
9. Usage Environment Warning
10. Do not operate this flanger pedal near water, rainy outdoor environments or high-power magnetic equipment to prevent audio signal distortion and short circuit risk.
