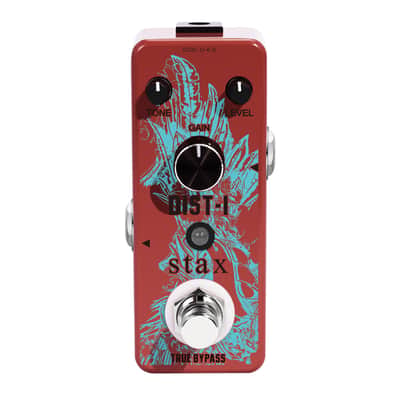

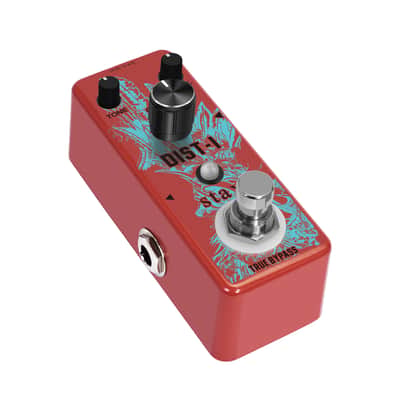

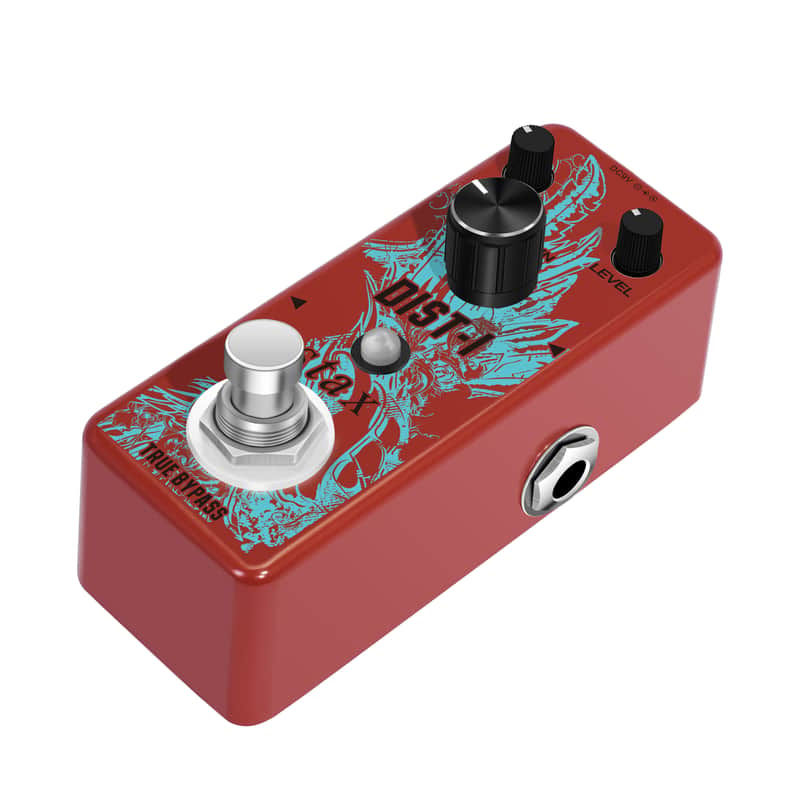

STAX LEF-301A DIST-I Distortion Pedal True Bypass Mini Metal Guitar Effect Stompbox--Shipped from Irvine Warehouse in California by USPS

Product Overview:

STAX LEF-301A DIST-I is a compact analog distortion stompbox designed for rock, blues and metal guitarists.

It features prominent rich midrange and adjustable high-gain saturated distortion tone, delivering thick crunchy rhythm riffs and punchy lead solos.

Equipped with three full-function independent control knobs for complete tone shaping, tiny scratch-resistant aluminum alloy housing saves plenty of pedalboard space for home practice, studio recording and live stage gigs.

Hardwire true bypass circuit completely retains your raw clean guitar tone with zero signal loss when the pedal is off.

Core Key Features

1. 3 Independent Tone Control Knobs

• GAIN: Adjust distortion saturation from mild grit to heavy saturated high-gain distortion
• TONE: Tweak high-frequency brightness, warm dark low-mid tone or sharp bright cutting leads
• LEVEL: Master output volume balance to match your amp clean channel volume

1. Classic Mid-Focus Distortion CharacterThick full midrange avoids thin hollow distortion, perfect for classic rock, hard rock and old-school metal riffs
2. 100% Hardwire True Bypass
3. Unbroken signal path without tone coloration, no volume drop during bypass switching
4. Visible LED Working IndicatorClear red LED light to show pedal activation under dim stage lighting
5. Mini Shockproof Aluminum Alloy HousingUltra-small footprint, lightweight anti-scratch metal shell, stable for touring transport
6. Ultra Low Power Consumption Only 9mA working current, long runtime with single power adapter

Full Technical Specifications

• Model: LEF-301A (DIST-I)
• Brand: STAX
• Effect Type: Analog Mid-Focus Distortion Pedal
• Control Knobs: GAIN / TONE / LEVEL
• Input Jack: 1/4” mono, Input Impedance: 1K Ohms
• Output Jack: 1/4” mono, Output Impedance: 2K Ohms
• Working Current: 9mA
• Power Supply: DC 9V center-negative barrel plug (adapter NOT included)
• Material: Aviation Aluminum Alloy Metal Chassis
• Dimensions: 95(D) × 45(W) × 48(H) mm
• Net Weight: 160g
• Full Package Weight: 240g
• Compliance Certifications: FCC VOC, CE EMC/LVD, RoHS Certified

Package Includes:

1 × STAX LEF-301A DIST-A Distortion Pedal

1 × English User Manual

1. Manufacturer & Business Entity Info

Brand Name: STAX

US Selling Entity: Sole Proprietor Local Warehouse Operator (Irvine, California

Main Products: 300 series mini single guitar effect pedals (Distortion, Overdrive, EQ, ABY, DI Box etc.), LEF series multi-effect stompboxes, LFS looper & control footswitches

Service Support: Retail sales, small bulk wholesale, OEM private custom logo service for music instrument retailers worldwide

2. Global Safety Compliance Certifications

• FCC VOC (North American US Market): Compliant with US electromagnetic interference standards for audio electronic devices
• CE Certification (EU & UK): EMC Electromagnetic Compatibility + LVD Low Voltage Safety Directive
• RoHS Compliance: Restricts hazardous heavy metals inside circuit boards & metal housings

3. Product Safety Precautions

1. Power Safety: Only use regulated DC 9V center-negative power adapter with minimum 500mA output. Mismatched voltage or reversed polarity will permanently damage internal analog circuit boards. Unplug power supply when the pedal is unused or during thunderstorms to avoid surge voltage damage.
2. Mechanical Operation Safety
3. Do not apply heavy force to footswitch, three control knobs and 1/4” audio jacks to prevent internal hardware failure. Unauthorized disassembly of the aluminum housing will void the 6-month limited warranty for pre-owned 95% like-new inventory.
4. Cleaning & Storage Rules
5. Clean metal housing only with dry soft cloth; alcohol, chemical solvents, detergent or abrasive cleaners are strictly forbidden. Store pedals in cool dry indoor space, avoid long-term direct sunlight, humid air, violent vibration and heavy physical impact.
6. Usage Environment Warning
7. Do not operate this distortion pedal near water, rainy outdoor environments or high-power magnetic equipment to prevent audio signal distortion and short circuit risk.
