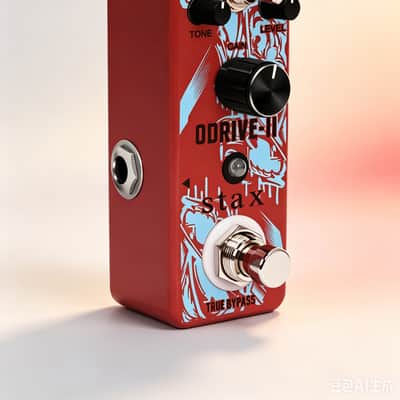

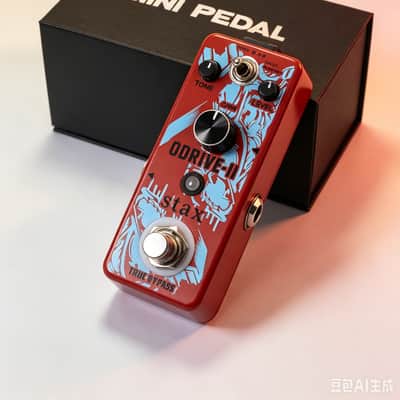

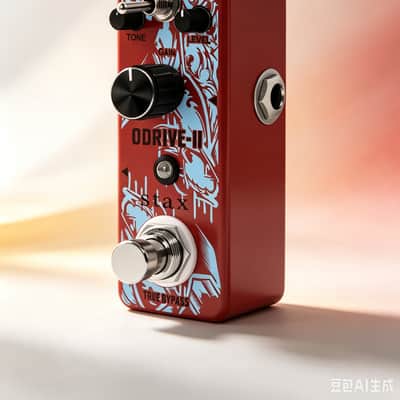

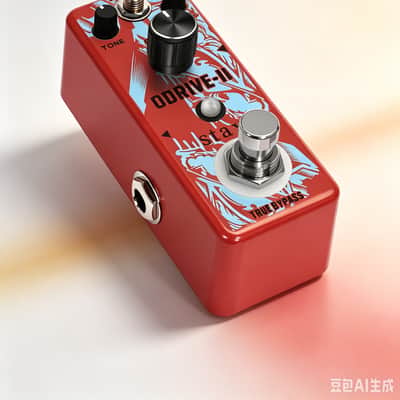

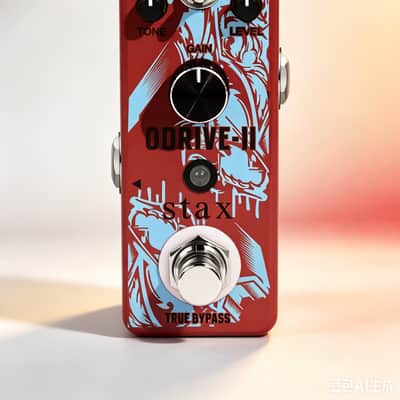

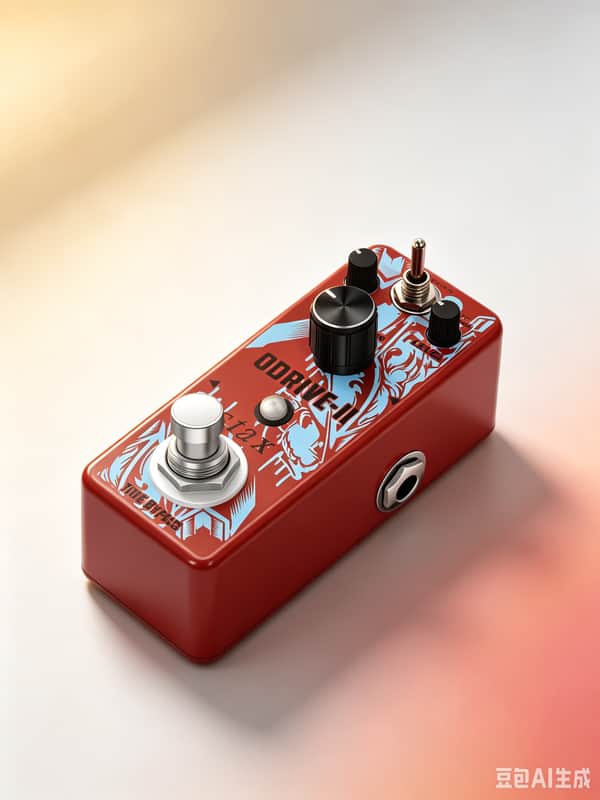

STAX LEF-302B ODRIVE-II TS Overdrive Pedal Dual Warm/Hot Mode True Bypass Mini Metal Guitar Warm Drive Effect--Shipped from Irvine Warehouse in California by USPS

Product Overview

STAX LEF-302B ODRIVE-II is a compact full analog TS808 Tube Screamer style overdrive pedal, upgraded with dual Warm/Hot voice toggle switch based on classic mid-forward tube screamer circuit, delivering ultra-versatile warm amp-style drive for blues, country, southern rock and classic rock rhythm & lead lines

Two-position top toggle switch provides two completely different overdrive textures to cover full playing scenarios:

1. Warm Mode: Original vintage TS smooth mild midrange overdrive, creamy transparent low-gain crunch, fully retains guitar low-end resonance, ideal for clean rhythm chords and mellow blues licks;
2. Hot Mode: Boosted extra gain & mid punch, thicker saturated harmonic sustain, tighter cutting grit perfect for soaring expressive lead solos and high-output amp stacking.Three intuitive control knobs realize full-range tone sculpting:

• GAIN: Adjust overdrive saturation depth from subtle transparent clean boost to thick singing saturated lead crunch;
• TONE: Variable treble EQ, soften harsh piercing highs or retain crisp bright string articulation;
• LEVEL: Independent master output volume to match clean bypass loudness and eliminate abrupt volume jumps when toggling effect on/off.Matte reddish-brown die-cast aluminum mini chassis takes minimal space on crowded pedalboards, ideal for bedroom practice, studio vintage TS tone recording and portable live stage gigs. Built with industrial-standard 3PDT hardwire true bypass circuit, fully preserving raw uncolored clean guitar tone without signal loss or bass attenuation when the pedal is off.

Core Key Features

1. Classic Analog TS Tube Screamer Circuit Upgraded with Dual ModesAuthentic warm mid-focused vintage tube overdrive character, smooth natural compression, ultra-responsive to picking dynamics and guitar volume knob rolling, zero harsh digital aliasing artifactsRowin Musi....
2. Dual Selectable Timbre Modes: Warm / Hot

• Warm: Balanced mild transparent vintage TS crunch for rhythm & soft blues
• Hot: Boosted thick mid saturation, extra bite for high-gain lead solos

1. Triple Independent Tone Shaping Knobs

• GAIN: Full-range drive control – subtle clean boost to thick saturated lead crunch
• TONE: Treble roll-off EQ – dark mellow tone or bright crisp cutting bite
• LEVEL: Independent output volume to align effect & bypass signal loudness

1. Full 3PDT Hardwire True BypassUnbuffered straight signal path, zero background hum, no low-frequency loss in bypass state
2. Clear Red LED Working IndicatorHigh visibility under dim stage lighting to confirm overdrive active status
3. Shockproof Matte Reddish-Brown Aluminum Alloy HousingPalm-sized tiny footprint, scratch-resistant matte metal shell, anti-slip rubber foam pad on bottom for stable pedalboard placement
4. Ultra Low Stable Power Consumption7~8mA operating current, fully compatible with standard 9V center-negative daisy-chain power adaptersReverb

Full Technical Specifications

• Model: LEF-302B ODRIVE-II Dual Mode TS Analog Overdrive
• Brand:STAX
• Effect Type: Mini Upgraded Tube Screamer Style Overdrive Stompbox
• Working Modes: Warm / Hot two-position top toggle switch
• Controls: GAIN Drive Knob, TONE Treble EQ Knob, LEVEL Output Knob
• Input Jack: 1/4” mono audio jack, Input Impedance: 520K Ohms
• Output Jack: 1/4” mono audio jack, Output Impedance: 12K Ohms
• Working Current: 7–8mA
• Power Supply: DC 9V barrel adapter (center pin negative, outer positive, adapter NOT included; battery power unsupported)
• Material: Die-Cast Aluminum Alloy Metal Chassis
• Dimensions: 95mm(D) × 45mm(W) × 48mm(H)
• Net Weight: 147g, Gross Weight (retail box): 221g
• Color: Matte Reddish Brown
• OEM/ODM Support: Available

Operation Instructions

1. INPUT Jack: Connect your electric guitar or output of another effect pedal via 6.35mm audio cable
2. OUTPUT Jack: Connect to your guitar amplifier or INPUT jack of another effect pedal via 6.35mm audio cable
3. Top Mode Toggle Switch
4. • WARM: Original smooth mild vintage TS overdrive for rhythm chords & soft blues riffs
   • HOT: Extra boosted thick mid saturation for aggressive lead solos & amp stacking
5. GAIN Knob: Clockwise = thicker saturated singing crunch; Counter-clockwise = light transparent clean boost
6. TONE Knob: Clockwise = bright sharp treble bite; Counter-clockwise = soft dark rolled-off warm tone
7. LEVEL Knob: Adjust overall output loudness to match clean bypass signal volume
8. True Bypass Footswitch: Step down footswitch to toggle overdrive ON / bypass OFF state
9. LED Indicator: Lights red when ODRIVE-II overdrive effect is activated
10. Power Jack: Plug in regulated DC 9V center-negative adapter for power supply

1. Manufacturer & Business Entity Info

Brand Name:STAX

US Selling Entity: Sole Proprietor Local Warehouse Operator (Irvine, California)Main Product Line: 300 Series dual/single mode TS overdrive / blues overdrive / RAT/DS-1 distortion / fuzz / EQ / booster / modulation / noise gate pedals, ABY switchers, DI boxes, LEF multi-effect stompboxes, LFS looper & foot controllersService: Retail sales, small bulk wholesale, OEM private logo & packaging customization for global musical instrument retailers worldwide2. Global Compliance Certifications

• FCC VOC (US Market): Meets United States audio device electromagnetic interference standards
• CE Certification (EU & UK): EMC Electromagnetic Compatibility + LVD Low Voltage Safety Certification
• RoHS Compliance: Restricts toxic heavy metals inside circuit boards & metal housings

3. Product Safety Precautions

1. Power Safety: Only use regulated DC 9V center-negative power adapter with minimum 500mA output.
2. Mismatched voltage or reversed polarity will permanently damage internal analog circuits. Unplug power supply when unused or during thunderstorms to avoid surge burnout.
3. This pedal DOES NOT support battery power supply.
4. Mechanical Operation Safety
5. Do not apply heavy force to footswitch, three control knobs, top mode toggle and 1/4” audio jacks to prevent internal hardware disconnection & failure. Unauthorized disassembly of aluminum alloy housing voids the 6-month limited warranty for pre-owned 95% like-new inventory.
6. Cleaning & Storage Rules
7. Clean metal housing only with dry soft microfiber cloth; alcohol, chemical solvents, detergent or abrasive polish are strictly prohibited. Store pedals in cool dry indoor environment, avoid long-term direct sunlight, high humidity, violent vibration and heavy physical impact.
8. Usage Environment Warning
9. Do not operate this overdrive pedal near water, rainy outdoor stages or high-power magnetic equipment to prevent audio signal distortion and short-circuit risk.
