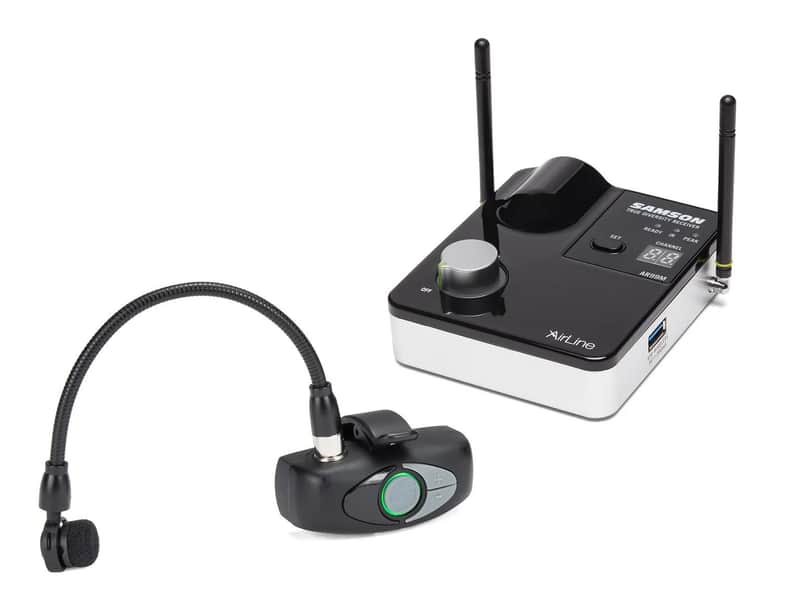

AirLine AWXm Wind Instrument Wind Instrument Wireless System with Tabletop Receiver For the working horn player who wants the freedom to go wireless, the AirLine AWXm Wind Instrument System offers the latest in wireless technology by combining the innovative ATX clip-on transmitter with the portable AR99m micro-receiver. Small enough to fit in any gig bag, this system provides high-definition sound for wind instruments without the need for a beltpack or cables. Relay your sound The unobtrusive design of the ATX wireless transmitter allows for easy mounting while providing a gentle but secure clip-on connection to the instrument's bell. With up to eight hours of rechargeable wireless battery life, the ATX transmitter is the perfect complement to your instrument's bell. Mic how you'd like Capture the sound of your instrument with the HM60 condenser microphone. Designed specifically for live performance, the microphone delivers the dynamic, natural sound of the instrument with a wide 20 Hz to 18 kHz frequency response. Capable of handling high sound pressure levels (SPLs) up to 125 dB, the HM60 is ideal for close-miking brass and woodwind instruments. The supercardioid polar pattern provides excellent isolation of the instrument while reducing the pickup of unwanted ambient noise. The unique 3-point halo isolation mount minimizes mechanical vibration and key click noise. Multifunctional, one compact design The AR99m micro-receiver is all about functionality and versatility. With a 300' range and three output connectors (1/4", 1/8" and XLR), the AR99m offers more compatibility at a fraction of the size of other receivers. Ensure maximum wireless clarity anywhere by scanning the 100 available channels with a simple push of a button; the AR99m analyzes and selects the clearest channel for your area. Turn the AR99m into a two-channel system by connecting a Samson XPD Series USB Digital Wireless System (sold separately) or conveniently charge the ATX transmitter using the receiver's USB port. You Are Now Free to Roam About the Stage Watch the horn section of the Funk Filharmonik demonstrate the Samson AWX Wind Instrument Wireless System! You too can be 'Free to Roam' with the AWX transmitter mounted directly on the bell of your instrument... No cables! No belt packs! Features / Specs AWXm Wind Instrument System Frequency-agile UHF wireless system 100 operating channels across 24MHz bandwidth Up to eight simultaneous systems per frequency band (region dependent) AC adapter and magnetic transmitter charging cable included ATX Wireless Transmitter Clips directly to instrument bell (no beltpack or cable required) HM60 condenser microphone capsule with supercardioid pickup pattern Handles up to 125dB SPL 3-point halo isolation mount 8.5" gooseneck (P3 connector) for optimal mic placement Windscreen included Up to eight hours of battery life using built-in rechargeable lithium-ion battery Sealed gold contact charging connector for included USB-style charger Low battery LED indicator 300' operating range (line-of-sight) Variable Gain control One-touch Mute AR99m Wireless Receiver True RF Diversity micro receiver design minimizes dropouts Portable tabletop form factor Set button scans and selects optimal operating channel IR sync wirelessly matches transmitter to receiver frequency Tone key prevents unwanted noise when transmitter is off or out of range Channel and Ready/IR/Peak LED displays Balanced XLR, unbalanced 1/4" and unbalanced 1/8" outputs USB port for adding a Samson XPD Series wireless systems and ATX transmitter charging Rotary volume knob HM60 Wind Instrument Condenser Microphone Supercardioid pickup pattern Handles up to 125dB SPL 3-point halo isolation mount 8.5" gooseneck (P3 connector) for optimal mic placement Windscreen included Specifications System Working Range 300' (100m) line of sight Audio Frequency Response 50 Hz - 15 kHz T.H.D. (Overall) <1% (@AF 1 kHz, RF 46 dBu) Dynamic Range >100 dB A-weighted Signal to Noise >95 dB Operating Temperature ?10?C (14?F) to +60?C (+140?F) Tone Key Frequency 35 kHz ATX Transmitter Input Connector Mini-XLR (P3) Input Impedance 3k? Input Gain Range 20dB RF Power 10mW EIRP Power Requirements 3.6V 500mAh Lithium Ion rechargeable battery Battery Life 8 hours Dimensions 5.9" x 6.7" x 3.9" / 150mm x 170mm x 100mm Weight 0.13lb / 60g AR99m Receiver Audio Output Level 1/8" (3.5mm) & 1/4" (6.3mm) jack (unbalanced) +14dBu Audio Output Level XLR jack (balanced) +9dBu Audio Output Impedance 1/8" (3.5mm) & 1/4" (6.3.mm) jack (unbalanced) 810 Ohms, Audio Output Impedance XLR output jack (balanced) 240 Ohms Sensitivity 100dBm/30dB SINAD Image Rejection >50dB Operating Voltage 15VCC 600mA Dimensions 4.3" x 3.74" x 1.5" / 110mm x 95mm x 39mm Weight 0.42lb / 192g
