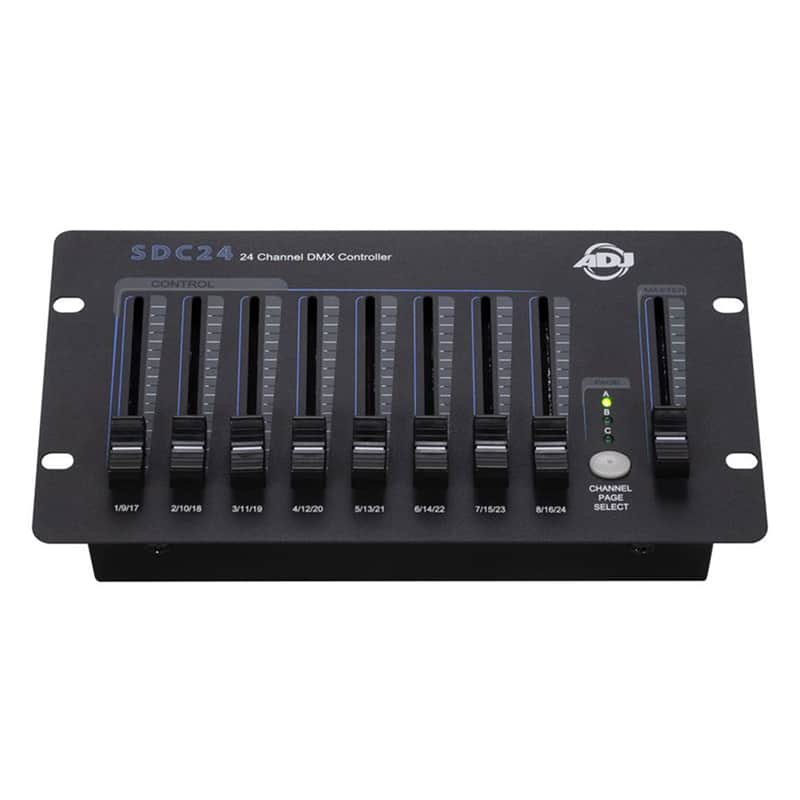

American DJ ADJ SDC24 24 Channel DMX Controller

What's in the Box:

• 1 x 24-channel DMX Controller

• 1 x 9V 1A Power Supply

Description:

The SDC24 is a basic 24-channel DMX Controller with 5-pin and 3-pin DMX out put and can be controlled by AC or DC power.

The ADJ Lighting SDC24 is a basic 24-channel DMX Controller that operates via an external 12VDC power supply (included) or a 9VDC battery (not included). SDC24 has 5-pin and 3-pin DMX output sockets, DIP switches to set a starting DMX channel, a master dimmer fader, an on/off switch and Channel Page button with Indicator LEDs. This a great compact controller for product demos or manual control of LED or conventional fixtures.

 Features:

• 8 individual channel faders and 1 master fader

• 24 DMX channels

• Compact, portable design

• 3-Pin and 5-Pin XLR output

• Battery Type: PP3 9V (not included)

Specifications:

Control / Connection:

• DIP Switches To Set Starting DMX Channel

• 3pin & 5pin DMX Outputs

• On/Off Switch

• Channel Page button with Indicator LED's

• DC9V-12V Power Supply Input

• 9V Battery slot


Size / Weight:

• Length: 4.73” (120mm)

• Width: 9.06” (230mm)

• Height: 2.23” (56.66mm)

• Weight: 1.86 lbs. (0.84kg)


Electrical:

• DC9V-12V 300mA min or 9V Battery (Not Included)

• Power Consumption: DC9V 40mA 0.36W, DC12V 40mA 0.48W


Approvals / Ratings:

• CE Approved

• RoHs Compliant

• IP20
