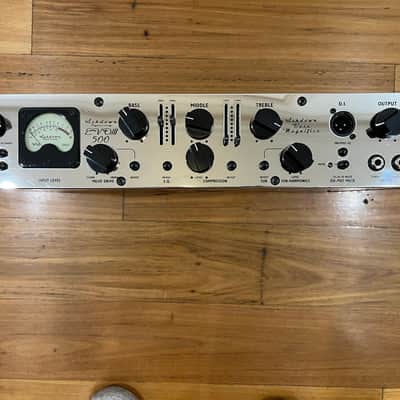

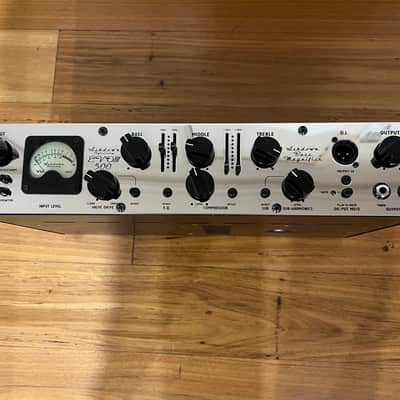

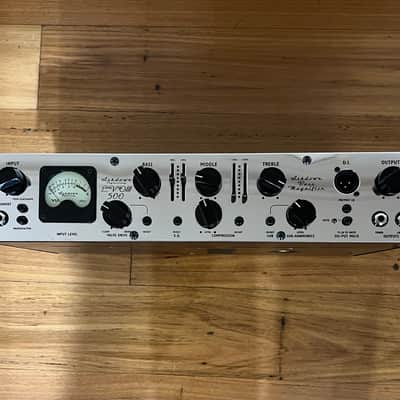

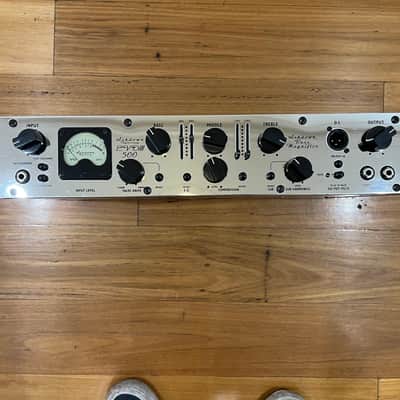

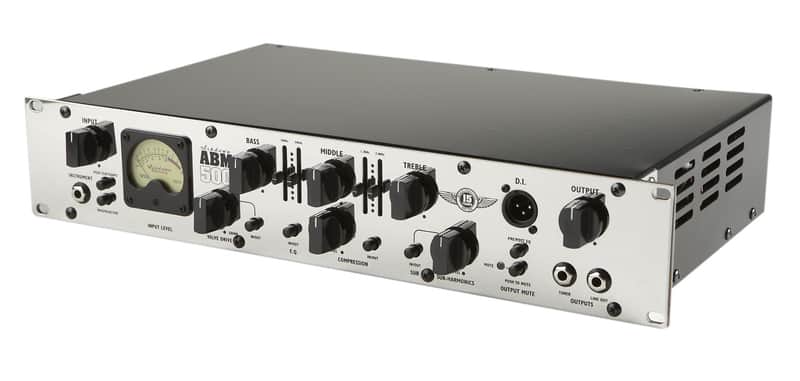

Here we have a rare Ashdown ABM 500 RC EVO III in stunning polished Crome panel.

For those requiring an integrated solution, the ABM 500RC EVO III is a rack-mounted version of the standard ABM 500 EVO III Head, with a stunning, polished chrome panel. Three straightforward rotary tone controls provide 20dB of EQ cut and boost at 60 Hz, 660 Hz and 5 kHz. These controls are supplemented by two pairs of additional sliders giving 15dB cut and boost at 180 Hz, 340 Hz, 1.3 kHz and 2.6 kHz. The EQ can be switched in/out by a footswitch, enabling players to go from a flat fretless sound to a boosted sound by taking advantage of a favorite EQ setting. A single input is switchable for passive and active instruments with a blend of solid state and dual triode tube preamps stages.  This can also be preset and selected via footswitch, providing access to a massive range of clean, warm and overdriven tones.

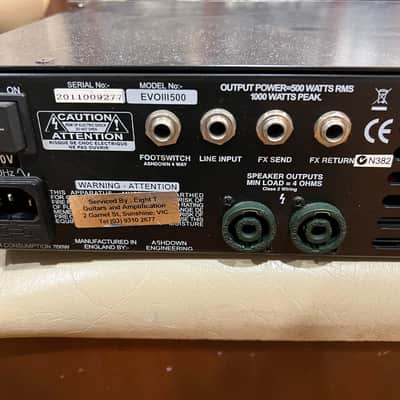

Also footswitchable is the on-board compressor and the mighty Ashdown sub-harmonic generator, which precisely tracks the main signal and reproduces it an octave lower. A sub-harmonic level control enables the player to add just the right amount of low-end reinforcement - everything from a subtle, thickening of the sound to unbridled bone crushing tones. The ABM500RC EVO III features a front-panel mounted balanced DI output with pre or post EQ switching, a sub-bass output, a tuner output, an FX loop and a line input for the connection of an external sampler or sound source. Output muting cuts the signal from the DI output but leaves the tuner output 'live', allowing the player to tune up in silence. A new upgraded power section has faster transient attack, more headroom and even less noise

Power Output

575W

Power Requirement

230V

Speaker Outputs

2 x Jack/Speakon outputs

Frequency Response

-3dB at 17Hz and 30Khz

High Instrument Input

Impedance 3.9M Ohms, input range 150mV - 20mV p-p

Low Instrument Input

Impedance 10K Ohms, input range 300mV - 40V p-p

Line Input

Impedance 22K Ohms, input level 0dBu nominal

Tuner Output

Impedance 22K Ohms, Level 0dBu nominal

DI Output

600 Ohms

Impedance

Minimum 4 Ohm

EQ

Bass +/-15dB @ 45Hz Middle +/-15dB @ 660Hz Treble +/-15dB @ 7kHz shelving slider 1 +/-15dB @180Hz Slider 2 +/-15dB @340Hz

Effects Send

Impedance 22k Ohm, level 0dBu nominal

Effects Return

Impedance 22K Ohm, input level 0dBu nominal

Sub Output

Impedance 1k Ohm, Level 0dBu Nominal

Pre-amp Tubes

1 x 12AX7

H x W x D (mm)

88 x 482 x 293
