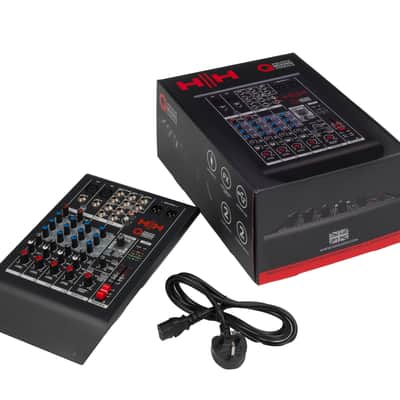

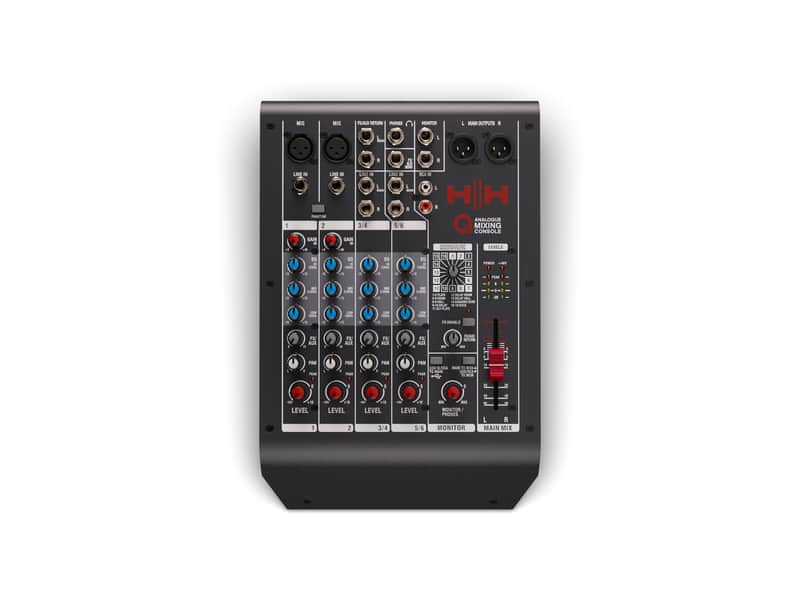

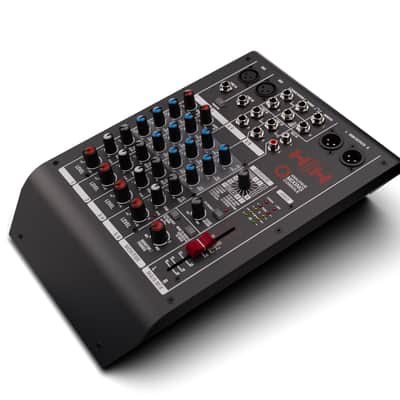

HH Audio Q6FX 6-Channel Analog Mixer with Effects

HH Audio Q6FX 6-Channel Analog Mixer with DSP Effects and USB Audio

The HH Audio Q6FX is a compact and versatile 6-channel analog mixer designed for live sound, home recording, podcasting, rehearsals, presentations, keyboard rigs, and small PA systems. Combining low-noise microphone preamps, flexible stereo connectivity, onboard digital effects, and USB audio recording, the Q6FX delivers practical professional features in an easy-to-use format.

Channels 1 and 2 each provide an XLR microphone input and a 1/4-inch line input, making them suitable for microphones, instruments, wireless systems, and other mono audio sources. Two additional stereo line-input channels accommodate keyboards, synthesizers, drum machines, media players, and other stereo equipment.

Built-In DSP Effects

Add depth and dimension to vocals and instruments without carrying an external effects processor. The Q6FX includes 16 built-in reverb and delay effects, along with a dedicated effects enable control and adjustable effects routing.

USB Recording and Playback

The integrated 2-input/2-output USB audio interface allows the mixer to connect directly to a compatible computer for recording, playback, livestreaming, podcast production, and music creation. USB audio supports 16-bit or 24-bit operation at a 48kHz sample rate.

Flexible Sound Control

Every input channel includes a musical 3-band EQ with up to 15dB of boost or cut. Separate low, mid, and high controls let you shape vocals, instruments, and playback sources while channel pan and level controls provide straightforward mix placement and balancing.

Professional Connectivity

Balanced stereo XLR main outputs provide a secure connection to powered speakers, amplifiers, or recording equipment. Separate monitor outputs, a headphone output, an FX/aux send, stereo return, stereo RCA input, and comprehensive monitoring controls make the Q6FX adaptable to a wide variety of compact audio systems.

Key Features

• Compact 6-channel analog mixing console
• Two XLR microphone inputs with low-noise mic preamps
• Two 1/4-inch mono line inputs on Channels 1 and 2
• Two stereo 1/4-inch line-input channels
• Global +48V phantom power for compatible condenser microphones
• 3-band EQ on every input channel
• 16 built-in DSP reverb and delay effects
• 2-in/2-out USB audio interface
• 16-bit and 24-bit USB audio operation
• 48kHz USB sample rate
• One FX/aux send with stereo return
• Stereo RCA input for external playback devices
• Balanced stereo XLR main outputs
• Stereo 1/4-inch monitor outputs
• Dedicated headphone output
• Channel peak indicators
• 60mm master output fader
• Four-point LED output metering
• Internal universal 100–240V power supply
• Designed and engineered in the United Kingdom

Input Configuration

• Channels 1–2: XLR microphone inputs and 1/4-inch TRS mono line inputs
• Channels 3–6: Two stereo pairs of 1/4-inch TRS line inputs
• Additional Inputs: USB audio, stereo RCA input, and stereo FX/aux return

Channel EQ

• Low: 100Hz, ±15dB
• Mid: 2.5kHz, ±15dB
• High: 12kHz, ±15dB

Outputs

• Balanced left and right XLR main outputs
• Stereo 1/4-inch monitor outputs
• 1/4-inch FX/aux send
• 1/4-inch headphone output
• USB audio output

Ideal for

• Small live performances and PA systems
• Singers, acoustic duos, and solo performers
• Keyboard and synthesizer setups
• Home and project studios
• Podcasting and livestreaming
• Rehearsal rooms
• Schools, churches, and meeting spaces
• Presentations and public speaking

With its compact footprint, straightforward controls, built-in effects, USB connectivity, and flexible analog routing, the HH Audio Q6FX 6-Channel Analog Mixer is a capable solution for musicians, content creators, presenters, and sound-system operators who need dependable mixing without unnecessary complexity.
