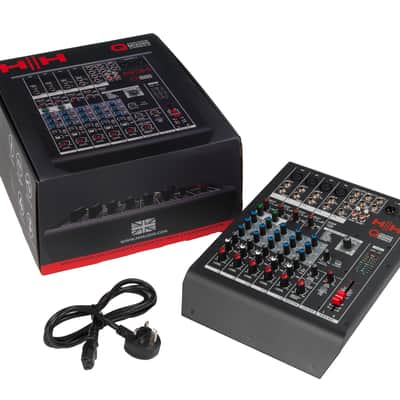

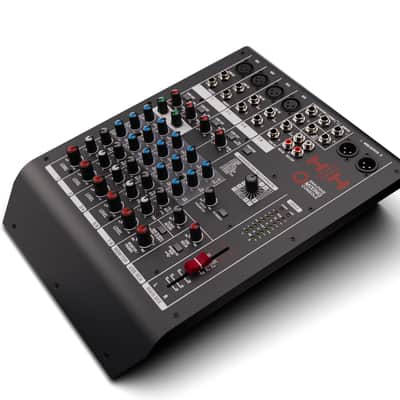

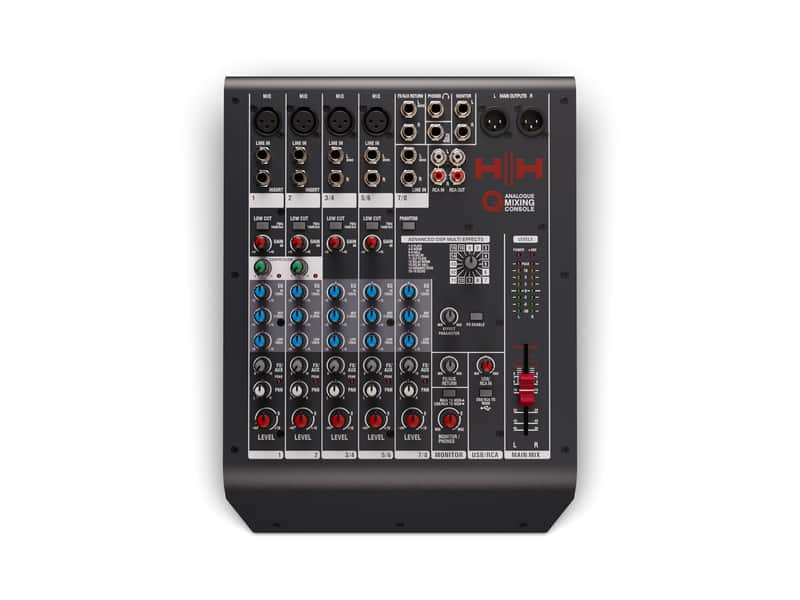

HH Audio Q8FX 8-Channel Analog Mixer with Effects

HH Audio Q8FX 8-Channel Analog Mixer with DSP Effects and USB Audio

The HH Audio Q8FX is a compact, versatile 8-channel analog mixer designed for live sound, home recording, podcasting, streaming, rehearsals, presentations, and small performance venues. Designed and engineered in the UK, the Q8FX combines low-noise microphone preamps, built-in compression, 3-band channel EQ, USB audio connectivity, and 16 onboard DSP effects in a rugged, portable mixing console.

Four microphone inputs provide flexible connectivity for vocalists, instruments, and spoken-word applications, while three stereo line-input channels accommodate keyboards, synthesizers, drum machines, media players, and other stereo audio sources. Channels 1 and 2 also include line inputs, mono insert points, and easy-to-use single-knob compressors for controlling dynamic vocals and instruments.

Built-In Compression and 3-Band EQ

The Q8FX gives you practical control over the tone and dynamics of your mix. Single-knob compressors on channels 1 and 2 help smooth out level changes and keep vocals or instruments sitting consistently in the mix. A 3-band EQ is provided across the input channels, with controls for low, mid, and high frequencies.

A switchable 75 Hz low-cut filter on channels 1 through 6 helps reduce handling noise, stage rumble, microphone stand vibration, and unwanted low-frequency buildup.

16 High-Quality DSP Effects

Add depth and polish without carrying an external effects processor. The integrated DSP section provides 16 reverb, delay, and echo effects, along with effect enable and parameter controls. These onboard effects make the Q8FX well suited for vocals, acoustic instruments, live performances, rehearsals, and recording applications.

2-In/2-Out USB Audio Interface

Built-in 2-in/2-out USB audio allows the mixer to connect directly to a compatible computer for recording, music production, podcasting, streaming, or playback. USB audio supports a 48 kHz sample rate, providing a convenient connection between your analog equipment and digital recording setup.

Flexible Monitoring and Output Connections

The HH Audio Q8FX includes balanced stereo XLR main outputs, stereo monitor outputs, a headphone output with level control, an auxiliary send with stereo return, and RCA connections for recording or playback equipment. A 60 mm master fader and 8-point LED level meter provide straightforward control and visual monitoring of the main mix.

Key Features

• Compact 8-channel analog mixing console
• Designed and engineered in the UK
• Four XLR microphone inputs with low-noise microphone preamps
• Three stereo line-input channels
• Mono line inputs and insert points on channels 1 and 2
• Single-knob compressors on channels 1 and 2
• 3-band EQ for precise channel tone shaping
• 75 Hz low-cut filters on channels 1 through 6
• 16 built-in DSP reverb, delay, and echo effects
• Effect enable switch and parameter adjustment
• 2-in/2-out USB audio interface
• Global +48V phantom power for compatible condenser microphones
• One auxiliary send with stereo return
• Balanced stereo XLR main outputs
• Stereo monitor outputs
• Dedicated headphone output and level control
• RCA input and record-output connectivity
• 60 mm master fader
• 8-point LED output meter
• Universal 100–240V AC power operation
• Rugged, portable chassis

Specifications

• Mixer Type: Analog mixer with digital DSP effects
• Total Channels: 8
• Microphone Inputs: 4 x XLR
• Mono Line Inputs: 2 x 1/4-inch TRS, channels 1–2
• Stereo Line Inputs: 3 stereo input channels
• Insert Points: 2, channels 1–2
• Channel EQ: 3-band, ±15 dB
• EQ Frequencies: Low 100 Hz, Mid 2.5 kHz, High 12 kHz
• Low-Cut Filter: 75 Hz at 18 dB per octave, channels 1–6
• Compression: Single-knob compressors on channels 1–2
• Phantom Power: Global +48V
• Internal Effects: 16 DSP reverb, delay, and echo programs
• USB Audio: 2 inputs and 2 outputs
• USB Sample Rate: 48 kHz
• Main Outputs: Balanced stereo XLR
• Monitor Outputs: Stereo 1/4-inch TRS
• Headphone Output: 1/4-inch
• Auxiliary Connections: One aux send with stereo return
• Master Control: 60 mm fader
• Metering: 8-point LED meter
• Frequency Response: 20 Hz–20 kHz
• Power Requirements: Universal 100–240V AC, 50/60 Hz
• Power Consumption: 40W
• Dimensions: Approximately 13.8 x 10.3 x 3.8 inches
• Weight: Approximately 7.7 lb.

Ideal for Live Sound, Recording, Streaming, and Podcasting

With its combination of microphone and stereo inputs, hands-on analog controls, onboard compression, built-in effects, and USB recording capability, the HH Audio Q8FX 8-channel mixer is a practical solution for musicians, bands, DJs, content creators, houses of worship, schools, rehearsal spaces, and small venues. It delivers the essential tools needed to build a clear, controlled mix without the complexity of a large-format console.
