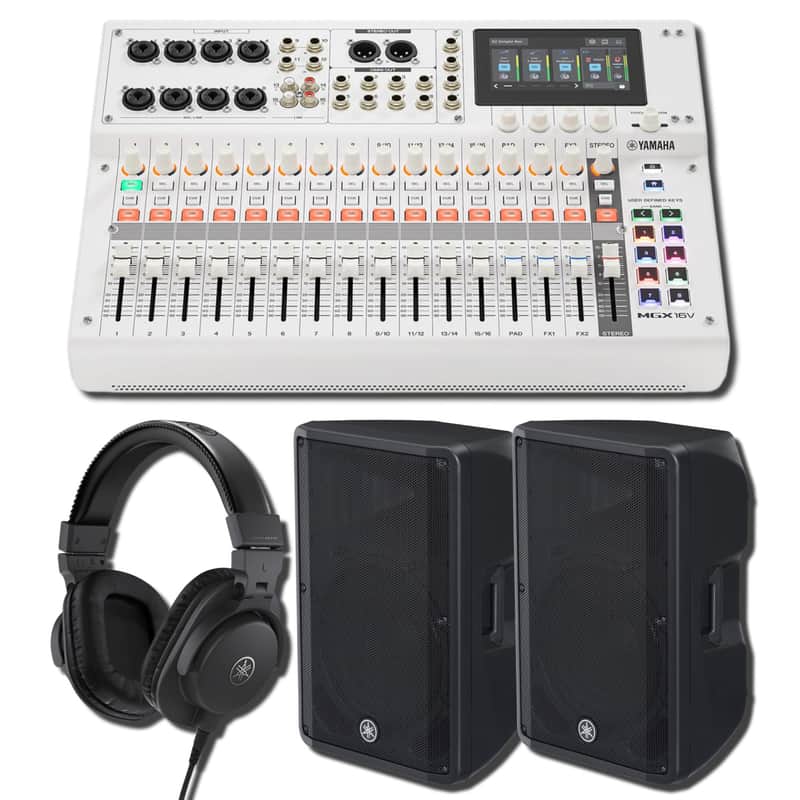

Yamaha MGX16V W 22-Channel Digital Mixing Console Monitoring PA Bundle with Two DBR15 15-Inch 1,000W Powered Loudspeakers and HPH-MT5 Closed-Back Studio Monitor Headphones (White)

Yamaha MGX16V W Monitoring PA Bundle: One Console, Two Powered Mains, and Reference Headphones

This bundle is the complete white-finish PA and streaming rig built around the Yamaha MGX16V W 22-channel digital mixing console. The MGX16V W is the hero: a 22-in/22-out digital mixer with HDMI-USB 4K video capture, 8 MGX combo mic preamps, onboard REV-X processing, a 16-track microSD recorder, and Bluetooth 5.0 audio in. Driving the room are two Yamaha DBR15 15-inch 1,000W powered loudspeakers that hit 132 dB peak SPL with FIR-X tuning and D-CONTOUR DSP. Closing the signal chain is a pair of Yamaha HPH-MT5 closed-back studio monitor headphones for accurate cueing and mixdown. Mic preamps, powered mains, and reference monitoring in a single purchase, color-matched and ready to run.

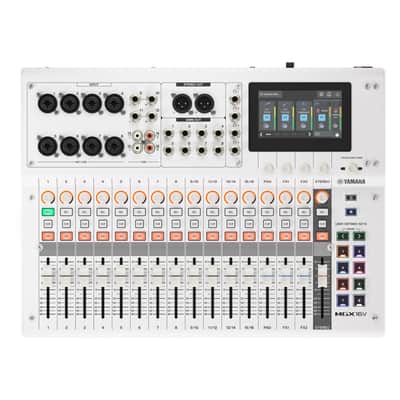

The MGX16V W Captures Audio and 4K Video Over a Single USB Cable

The defining feature of the MGX16V W is the built-in HDMI-USB video interface. It captures and passes through video up to 4K/60fps alongside the full audio mix over one USB connection, so a streamer or hybrid-event operator no longer needs a separate capture card sitting between the camera and the computer. The console streams 22 channels in and out at 32-bit/96 kHz over USB MAIN for multitrack DAW recording, while a second USB-C SUB port feeds a 2-track mix to a dedicated streaming device. Three Multi-Stream Audio loopback channels route playback and app audio into the mix. For game streamers, worship A/V teams, and four-person podcasts, this is one box where two used to be.

8 MGX Preamps, Per-Channel Processing, and a microSD Recorder

Eight MGX combo preamps deliver wide, clean gain with the high dynamic range Yamaha is known for, and every channel carries a 4-band parametric EQ, high-pass filter, noise gate, and 1-knob compressor so each input is shaped before it ever hits the mix. The onboard DSP engine adds REV-X reverb, a multi-band compressor, a Ducker for music-under-voice, and Pitch Fix, all running under 0.4 ms latency. A 16-track microSD recorder captures the whole session standalone with no computer in the chain, giving live operators a reliable backup. Eight assignable Sound Pads fire jingles, stings, and scene recalls, and Bluetooth 5.0 brings in walk-in music wirelessly. Four headphone outputs let a full table monitor at once.

Two DBR15 Powered Speakers Put 1,000 Watts and 132 dB on Poles

The pair of Yamaha DBR15 powered loudspeakers turns the console's main outputs into full-range sound. Each cabinet pairs a 15-inch woofer with a 2.5-inch voice coil and a 1.4-inch compression driver, driven by a 1,000W Class-D bi-amp (800W LF + 200W HF) for a 132 dB peak SPL and clean low end down to 50 Hz. FIR-X tuning uses a linear-phase FIR crossover at 2.1 kHz for coherent transients, and D-CONTOUR DSP offers FOH/MAIN and MONITOR presets that retune the speaker for front-of-house duty or floor-wedge monitoring. The 50-degree wedge enclosure angle lets each DBR15 lay on its side as a stage monitor. At 42.6 lb per cabinet with a 35 mm pole socket, side handles, and XLR thru/mix output to daisy-chain the pair, these are the most portable powered mains in Yamaha's lineup, with DSP and transducer technology inherited from the flagship DXR and DSR series.

HPH-MT5 Headphones Give the Operator an Honest Reference

The bundle includes Yamaha HPH-MT5 closed-back, circumaural studio monitor headphones so the operator can cue inputs, check the mix, and catch problems the mains cannot reveal in a loud room. Custom 40 mm dynamic drivers with CCAW voice coils deliver flat, high-resolution response across the full 20 Hz-20 kHz range, tuned in the accurate, fatigue-free tradition of Yamaha's NS-10 and HS-series monitors rather than hyped consumer sound. The closed-back design isolates against leakage and stage volume, the earcups rotate flat for single-ear cueing, and the 8.6 oz body keeps weight off the head through long sessions. A detachable 9.8 ft cable with a screw-on 1/4-inch adaptor plugs straight into any of the console's four headphone outputs.

How the Console, Speakers, and Headphones Work Together

The three pieces form one closed signal chain. Mics, instruments, and playback sources enter the MGX16V W, where the preamps and per-channel processing shape every input. The stereo mix leaves the console's main outputs and runs over XLR to the first DBR15, which can daisy-chain to the second cabinet through its XLR thru/mix output, so both speakers are fed from one console output. The HPH-MT5 plugs into a console headphone output for cueing and reference while the room hears the DBR15 pair. For a hybrid stream, the same mix is captured to the computer with synchronized 4K video over USB, while the microSD recorder logs a backup. Everything is impedance- and connector-matched out of the box, with the white console and headphones presenting a clean on-camera look.

Who This Yamaha PA and Streaming Bundle Is For

For the worship A/V team running speech and full-band music with a camera feed, this is a single rig that mixes, amplifies, and captures at once. For the band or mobile sound operator who needs portable 15-inch mains and a console in one purchase, the DBR15 pair and MGX16V W cover front-of-house and monitor duty without a separate amp rack. For the content creator and game streamer, the HDMI-USB capture and dual USB-C ports replace a capture card and a second interface, while the HPH-MT5 gives broadcast-grade monitoring. First-timers get a color-matched system with nothing left to source; upgraders get Yamaha True Sound preamps and DXR-series speaker pedigree; comparison shoppers get the 132 dB headroom, 4K video path, and 32-bit/96 kHz numbers to close the decision. Plug in and run the room.
