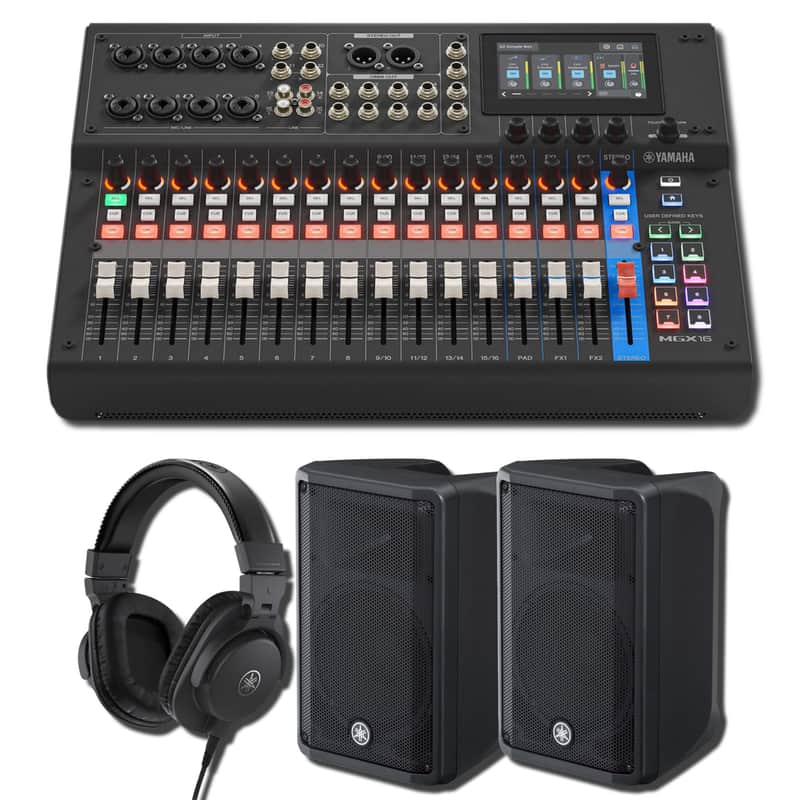

Yamaha MGX16 B 22-Channel Digital Mixing Console PA Bundle with 2x DBR10 700W Powered Loudspeakers and HPH-MT5 Studio Monitor Headphones

How the MGX16 B, DBR10 Pair, and HPH-MT5 Build a Mix-Hear-Amplify System You Can Trust

This bundle answers a problem every solo sound operator runs into: you can fill a room with a pair of DBR10 powered speakers, but the moment you are also recording to microSD, streaming over USB, or feeding a Bluetooth backing track, you need a way to hear exactly what is leaving the console before the room does. The Yamaha MGX16 B 22-channel digital mixing console mixes and processes every source, the two DBR10 700W powered loudspeakers amplify it as a stereo front-of-house pair, and the HPH-MT5 closed-back studio monitor headphones let you cue and confidence-check the mix in private. Bands, worship volunteers, podcasters, and streamers get one connected system instead of three separate purchases.

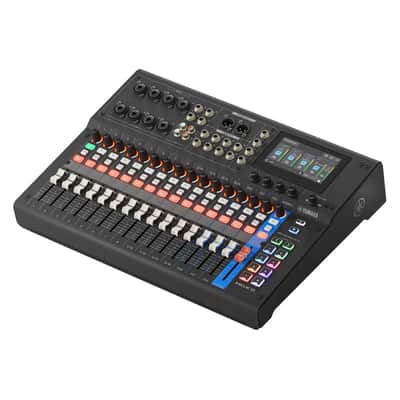

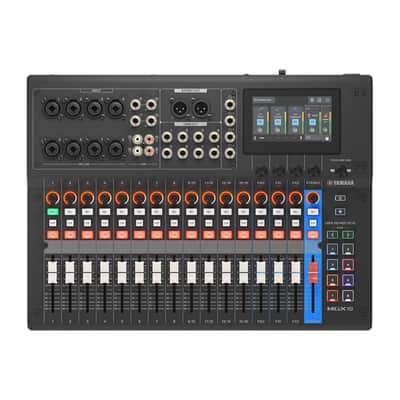

The MGX16 B Touchscreen Console: 8 Preamps, Full DSP, and One-Operator Confidence Tools

The MGX16 B is the digital evolution of Yamaha's MG line. Eight MGX premium mic preamps with an 86 dB gain range feed a 4.3-inch touchscreen workflow backed by five control knobs and a TOUCH AND TURN encoder, so every gate, compressor, EQ, reverb, ducker, and multi-band setting is a tap away. A 125 dB dynamic range at the stereo output keeps quiet passages clean and loud peaks intact. For the operator running sound alone, Auto Gain sets input levels, Clip Safe catches sudden distortion before it reaches the speakers, and instant Scene Recall reloads an entire show in one move.

32-Bit USB, 16-Track microSD, Bluetooth, and 8 Sound Pads in a 10.4 lb Console

This console is a recording hub, not just a mixer. A 22-in/22-out USB MAIN interface runs at 32-bit/96kHz for full multitrack capture and streaming to a computer, while a separate 2-in/2-out USB SUB port routes audio to a second device for hybrid live-and-stream events. Onboard 16-track recording to microSD at 24-bit/96kHz gives you a standalone backup with no laptop required, and 2-track playback covers venue music. Bluetooth 5.0 streams wireless backing tracks straight in, and 8 customizable Sound Pads across 4 banks trigger jingles, stingers, scene recall, or a test-tone oscillator. The whole console weighs just 10.4 lb.

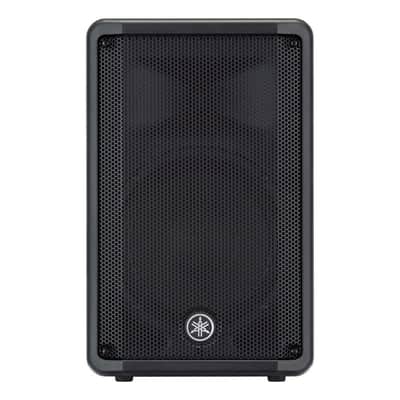

Two DBR10 700W Speakers: 129 dB SPL, FIR-X Tuning, and a Switch From Mains to Monitors

Each DBR10 packs a 700W Class-D bi-amp powerplant into a 23.2 lb cabinet and reaches 129 dB max SPL from a 10-inch enclosure, enough to fill small-to-mid rooms without strain. FIR-X tuning uses a linear-phase FIR crossover at 2.1 kHz for accurate driver integration and flat phase response, so vocals stay clear and natural. D-CONTOUR onboard DSP flips each speaker between FOH/MAIN throw and MONITOR voicing with one switch, and a 50-degree cabinet bevel lets a DBR10 lie down as a floor-monitor wedge. A 35 mm pole socket, XLR Thru/Mix output, and onboard 2-channel input round out a genuinely flexible pair.

Why the HPH-MT5 Headphones Are the Piece That Makes This Bundle a Monitoring Rig

The HPH-MT5 is the part that separates this bundle from a speakers-only PA. Custom 40 mm dynamic drivers with CCAW voice coils deliver a flat, high-resolution 20 Hz-20 kHz response built for honest monitoring, not hyped consumer sound, so what you hear in the cups is what your microSD card and USB stream are actually capturing. The closed-back circumaural design isolates you from stage and room noise for accurate cueing, and a moveable earcup rotates flat for single-ear DJ-style reference. At 8.6 oz with a detachable 9.8 ft cable and screw-on 1/4-inch adaptor, they plug straight into any of the console's headphone outputs for a full session.

Who This Yamaha PA and Monitoring Bundle Is Built For

First-time sound operators get a console that sets its own levels and three pieces that already speak the same connector language. Upgraders moving off an analog mixer gain touchscreen DSP, 32-bit USB recording, and accurate closed-back monitoring in one step. Comparison shoppers weighing a speakers-only package against this one get the deciding feature spelled out: the HPH-MT5 lets you trust your recording and stream feed before the audience ever hears it. Mix it, hear it, amplify it, capture it, all from one order.
