Jerry Garcia (Tiger) Unity Gain Buffer OBEL (handmade)
Our users rate Reverb
To get to the point, from all purchasers’ feedback, I have some many; these are the clearest cleanest sounding units of their kind. They are hand built, point to point connections using component leads, using the highest quality products right down to the solder and flux.
This device Conforms to the schematic and function of the buffer used in the Jerry Garcia (Tiger) guitar. The centerpiece to install an OBEL system (on board effects loop) or just looking for the benefits of a unity gain buffered system. Every unit is the same as the first, the same high quality parts have been employed right down to the solder. Only minor quality improvements have taken place over the years to ensure consistency.
Units are made from quality components:
Dale Military grade resistors
Wima MKS4 & Panasonic capacitors
National Semiconductor LF356n (NOS) Not clones
High quality DIP IC Sockets
Phoenix Contact I/O connector (Aerospace Grade)
**********
Highly detailed soldering
All point to point construction using component leads
Quality perf board with solder pads
(powered by one 9v battery)
Individually tested and guaranteed
Connections are made through a Phoenix Contact Terminal Block.
This is a computer grade connector guaranteed not to corrode or compromise the connection/sound for the lifetime of the unit (no soldering).

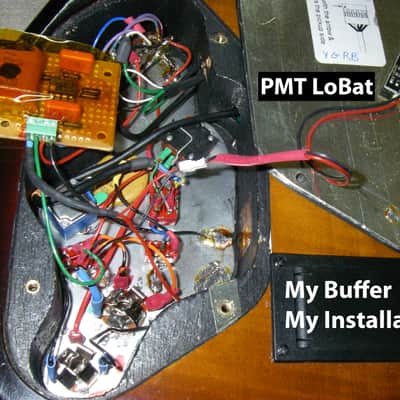

Just 4 screws and the unit installs or just as easily comes out
Dimensions = 1 7/8" x 1 1/2" x 3/8"
PCB Mounting Holes
