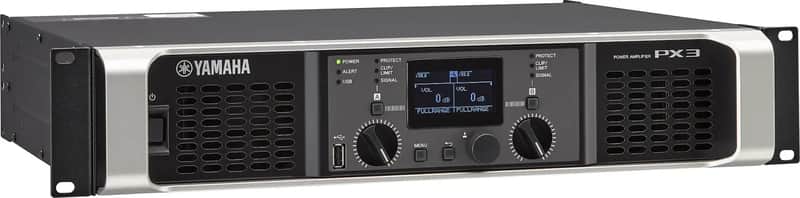

The Yamaha PX3 Stereo Power Amplifier delivers 300W at 8 Ohms in a lightweight chassis and is suitable for a wide variety of sound-reinforcement applications. Part of the company's PX Series of power amplifiers, it features a Class-D engine with a single custom LSI chip, and uses PLL technology for higher efficiency and lower noise. The Power-Boost mode combines the power output from two channels into one, achieving significantly higher single-channel power levels (the number of channels available is then halved). The on-board DSP functions include a PEQ, a delay, a crossover, and a limiter. They also allow for detailed configuration of parameters such as input & output routing, input sensitivity, amp gain, and speaker impedance. The D-Control multi-band dynamic processor delivers a clear and consistent sound at any output level by shaping the frequency response of each speaker for either front-of-house or monitor configurations. The Configuration Wizard helps save time during setup by assigning optimized speaker settings that match your system configuration. It can be used in basic mode for quick setup or advanced mode for more precise control over DSP parameters. You can store up to eight presets, which can be saved to a USB drive for use with other amplifiers and setups. For secure operation, the panel-locking function ensures that your settings remain safe. With its sturdy frame and carrying handle, the PX3 is built to withstand extended road use.

Product Features

• Dual-Channel Class D Power Amplifier with Built-In PA Management Processing
• Connectivity Includes XLR and TRS Inputs and speakON, Binding Post, and Phono Outputs
• Power Boost Mode Bridges the Outputs to Achieve Double the Wattage (reduces output to a single channel)
• Built-In PA Management Tools Such as EQ, Limiting, Delays, Crossovers, and Filters

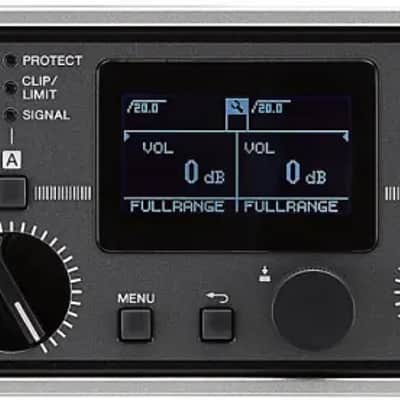

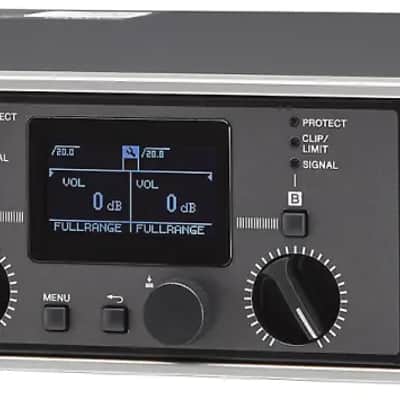

• LCD Display for Easy Navigation of Advanced Features

Attributes

• Watts/Side @ 8 ohms: 300W - 499W

Technical Specifications

• Features: DSP, With Effects, RFI Filtering
• # of Channels: 2
• Dimensions: 3.46" H x 18.87" W x 15.25" D
• Weight: 15.21lbs
• Inputs: 2 x XLR, 2 x 1/4" TRS

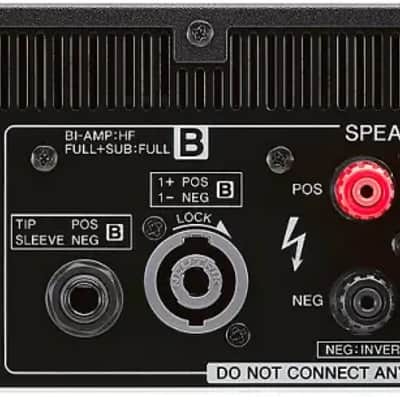

• Outputs: 2 x speakON NL4, 2 x Binding Post, 2 x 1/4" TS
• Rack Spaces: 2U
• Cooling System: 2 x 16-step variable speed fan, front to rear airflow
• Watts Per Side @ 8 ohms: 300W
• Watts Per Side @ 4 ohms: 500W
• Watts Bridged @ 8 ohms: 600W @ 8 ohms
• Watts Bridged @ 4 ohms: 1000W @ 4 ohms
